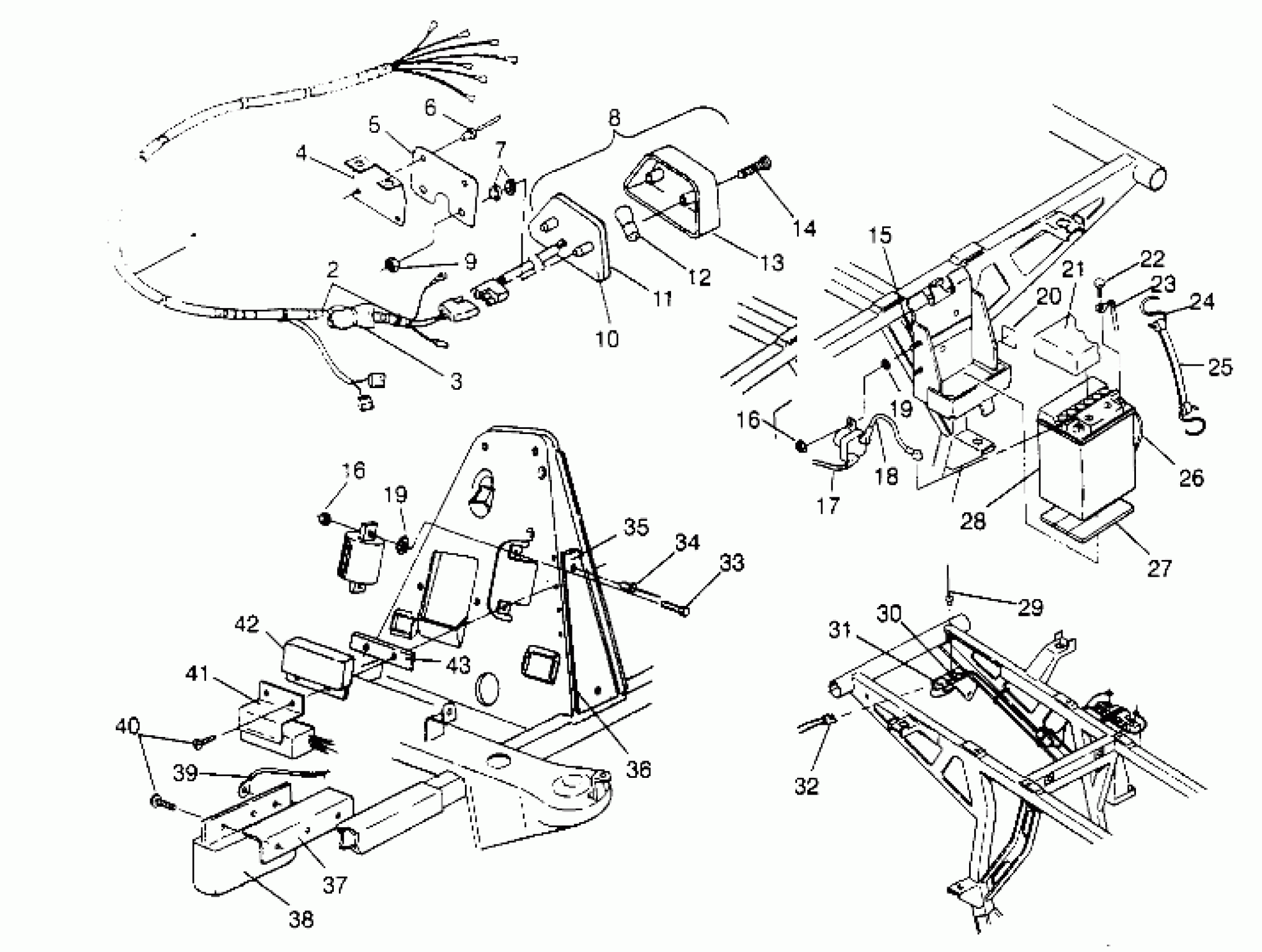

Polaris 400L 6X6 - W948740 ELECTRICAL/TAILLIGHT ASSEMBLY 6x6 400L W948740 (4926802680C014) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE,(400-6X6)

2460489

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CKT.BREAKER,20 AMP.

2434012

$38.89

4

BRACKET,T/L MOUNT

5240244-067

Unavailable

5

ISOLATOR,TAILLIGHT

5211391-067

$13.39

6

RIVET(50)

7621470

$3.17

7

WASHER(10) Substituted by 7558301

7555776

Unavailable

8

TAIL LIGHT ASM.

2432034

$55.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

BACKING,TAILLIGHT

4032064

$83.99

11

GASKET,TAILLIGHT

4032045

$4.03

12

BULB,TAILLIGHT

4030043

$6.46

13

LENS,TAILLIGHT

4032046

$32.37

14

Screw, Taillight

4032029

$4.79

15

SCREW(10)

7512027

$1.49

16

NUT(10)

7541925

$1.49

16

NUT(10)

7541925

$1.49

17

CABLE,SOLENOID/STARTER

4010064

Unavailable

18

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

19

WASHER(10)

7571602

$4.79

19

WASHER(10)

7571602

$4.79

20

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

21

COVER,BATTERY

5431769

$14.39

22

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

23

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

24

HOOK-BATT.H/D(10)

7010032

$1.59

25

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

26

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

27

PAD-BATTERY

5810290

$7.27

28

Battery

4140006

$99.99

29

RIVET,(50)

7621336

$1.59

30

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable

31

POWERPLUG ASM,12V.

2410023

$28.95

32

PIGTAIL, POWER (Pigtail Power)

2460442

$12.39

33

SCREW(10)

7512007

$3.99

34

RIVET, POP(50)

7621322

$0.56

35

BOARD,TERMINAL

4040022

Unavailable

36

SHIELD,TERM.BOARD

5431152

Unavailable

37

HEATSINK RECT.

5131036

Unavailable

38

RECTIFIER,SWITCHING

4060113

Unavailable

39

HARNESS,JUMPER,RECTIFIER

2460485

Unavailable

40

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

41

BRKT,CDI(ATV 400)

5240428

Unavailable

42

LIMITER,RPM,350HZ. Substituted by 4060203

4060112

Unavailable

43

HEAT SINK

5210650

Unavailable
