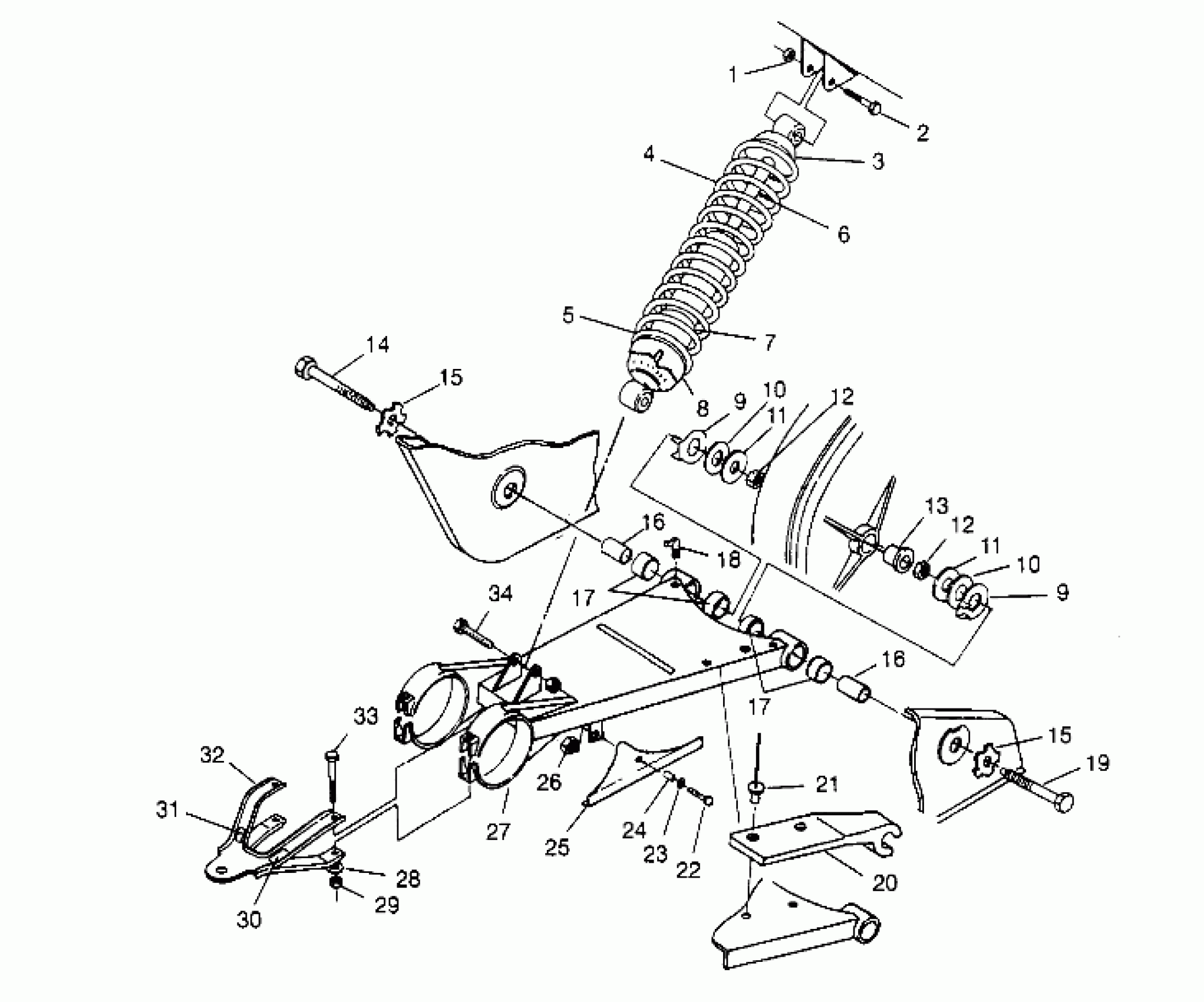

Polaris 400L 2X4 - W957540 SWING ARM/SHOCK MOUNTING 2x4 400L W957540 (4930093009B009) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER, SHOCK

5222118

Unavailable

4

SPRING,COMP,REAR

7041204-067

$64.99

5

ADAPTER,SPRING,SEAT

5630351

Unavailable

6

SHOCK,REAR

7041448

$151.99

7

SLEEVE,SPRING PROTECTOR

5431032

$31.99

8

CAM,ADJUSTING SPRING

5630334

$32.37

9

BUSHING

5240952

$34.99

9

BUSHING

5240952

$34.99

10

BUSHING Substituted by 5433414

5431977

Unavailable

10

BUSHING Substituted by 5433414

5431977

Unavailable

11

WASHER(10)

7555911

$4.79

11

WASHER(10)

7555911

$4.79

12

NUT, LOCK(10)

7542602

Unavailable

12

NUT, LOCK(10)

7542602

Unavailable

13

Bushing, Pivot

-------

Unavailable

14

BOLT, SHOULDER

7512701

$23.99

15

PLATE,BOLT LOCK

5220958

$35.99

15

PLATE,BOLT LOCK

5220958

$35.99

16

BUSHING,SWING ARM

5020793

$8.79

16

BUSHING,SWING ARM

5020793

$8.79

17

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

17

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

18

FITTING,LUBE,45 DEG.(10) (45

7080586

Unavailable

19

BOLT, SHOULDER

7512702

Unavailable

20

GUIDE, CHAIN

5431310

$32.37

21

RIVET(50)

7621433

$1.49

22

SCREW-FLANGED(10)

7515304

$5.59

23

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

24

Bushing

5332828

$9.59

25

GUIDE,CHAIN GUARD Substituted by 5430776

5431968

$34.74

26

NUT LOCK(10)

7542321

$1.49

27

ARM ASM,SWING

1580090

Unavailable

28

WASHER(10)

7555883

$3.99

29

NUT, LOCK,(10)

7542503

$10.39

30

DECAL,CHAIN FREE PLAY

7074752

Unavailable

31

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

32

KIT, ATV HITCH Substituted by 2873036

2200472

Unavailable

33

BOLT(10)

7512576

$7.99

34

BOLT(10)

7515438

$4.79
