Description

Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

BOLT, WHEEL(10)

7512673

$3.17

3

BOLT, WHEEL(10)

7512673

$3.17

4

KIT, MACH.HUB (Incl. 10)

2200341

$93.08

4

KIT, MACH.HUB (Incl. 10)

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.97

5

PUSHNUT, BOLT(10)

7670081

$3.97

6

TIRE,R(24X11-10) (24x11x10)

5410479

Unavailable

7

VALVE-RIM

1525017

$6.46

7

VALVE-RIM

1525017

$6.46

8

NUT, WHEEL(10)

7542714

$1.59

8

NUT, WHEEL(10)

7542714

$1.59

9

WASHER(10)

7555745

Unavailable

9

WASHER(10)

7555745

Unavailable

10

WASHER, CONE(10)

7555796

$7.94

10

WASHER, CONE(10)

7555796

$7.94

11

NUT, CASTLE(10)

7543005

Unavailable

11

NUT, CASTLE(10)

7543005

Unavailable

12

PIN, COTTER(10)

7661404

$4.76

12

PIN, COTTER(10)

7661404

$4.76

13

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

13

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

14

CONNECTOR LINK

3225024

$24.27

15

CHAIN, DRIVE, 84P Substituted by 3224056-084

3224047

$145.70

16

NUT LOCK(10)

7542403

Unavailable

17

GUARD,SPKT,34T

5211617-067

$41.27

18

NUT-LOCK(10)

7542439

$1.19

19

SPACER-SPROCKET GUARD NOTE: Some unite may use a one-piece spacer P/N 5630586.

5630586

Unavailable

19

SPACER

5020797

$1.81

20

BOLT(10)

7512404

$3.97

21

SPROCKET,34T,(ATV)

3222068

$109.99

22

SPROCKET HUB ASM. (Incl. 23)

1520170

Unavailable

23

STUD(10)

7515513

$1.19

24

O RING, 1 5/16(10)

5410415

Unavailable

24

O RING, 1 5/16(10)

5410415

Unavailable

25

SEAL, REAR AXLE

3610013

Unavailable

25

SEAL, REAR AXLE

3610013

Unavailable

26

Bearing, Ball

3515501

$27.78

26

Bearing, Ball

3515501

$27.78

27

TUBE,BEARING SPACER

5010204

Unavailable

29

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

30

SPACER,BEARING

5010206

Unavailable

31

RING, SNAP(10)

7710405

$4.76

32

AXLE, REAR

5020789

Unavailable

33

RIM-REAR, 8.5/10,SILVER

1520183-117

Unavailable

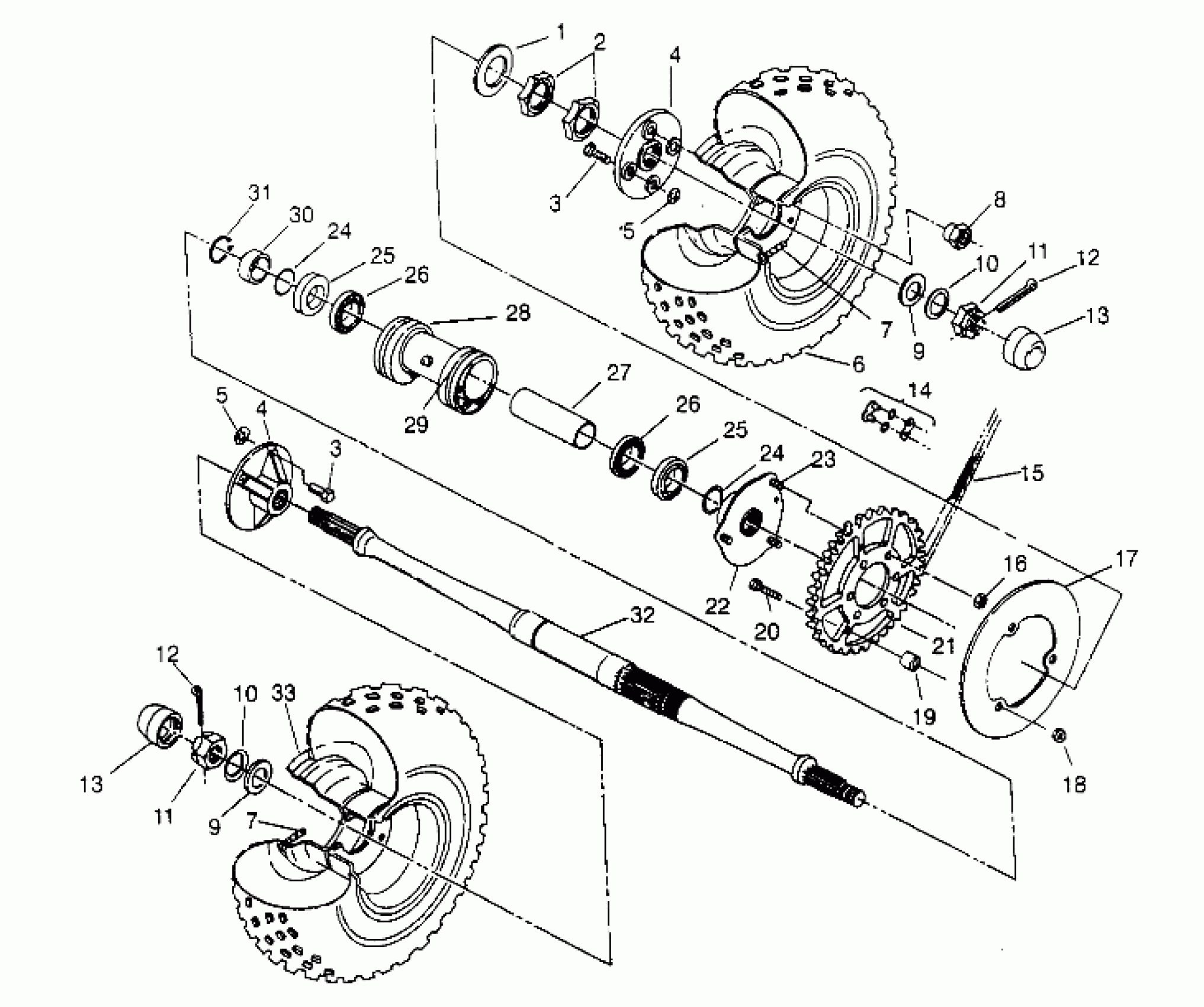

Polaris 400L 2X4 - W957540 REAR WHEEL DRIVE ASSEMBLY 2x4 400L W957540 (4930093009C001) Diagram

WASHER(10)

Nut, Jam

BOLT, WHEEL(10)

BOLT, WHEEL(10)

KIT, MACH.HUB (Incl. 10)

KIT, MACH.HUB (Incl. 10)

PUSHNUT, BOLT(10)

PUSHNUT, BOLT(10)

TIRE,R(24X11-10) (24x11x10)

VALVE-RIM

VALVE-RIM

NUT, WHEEL(10)

NUT, WHEEL(10)

WASHER(10)

WASHER(10)

WASHER, CONE(10)

WASHER, CONE(10)

NUT, CASTLE(10)

NUT, CASTLE(10)

PIN, COTTER(10)

PIN, COTTER(10)

COVER,DUST,HUB Substituted by 5411164

COVER,DUST,HUB Substituted by 5411164

CONNECTOR LINK

CHAIN, DRIVE, 84P Substituted by 3224056-084

NUT LOCK(10)

GUARD,SPKT,34T

NUT-LOCK(10)

SPACER-SPROCKET GUARD NOTE: Some unite may use a one-piece spacer P/N 5630586.

SPACER

BOLT(10)

SPROCKET,34T,(ATV)

SPROCKET HUB ASM. (Incl. 23)

STUD(10)

O RING, 1 5/16(10)

O RING, 1 5/16(10)

SEAL, REAR AXLE

SEAL, REAR AXLE

Bearing, Ball

Bearing, Ball

TUBE,BEARING SPACER

FITTING,LUBE.W/BALL CK.(10)

SPACER,BEARING

RING, SNAP(10)

AXLE, REAR

RIM-REAR, 8.5/10,SILVER
