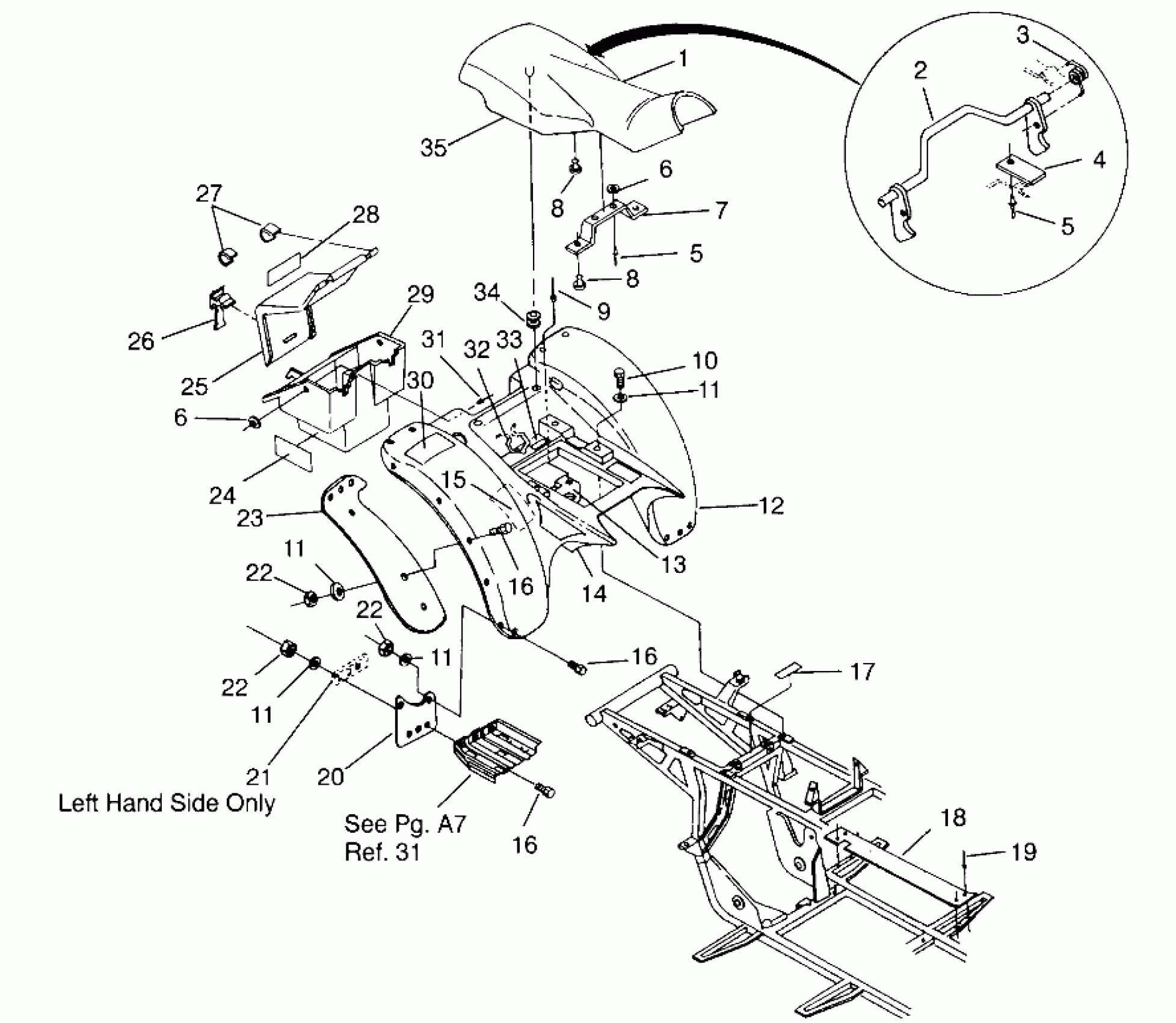

Polaris 400L 2X4 - W957540 REAR CAB ASSEMBLY 2x4 400L W957540 (4930093009A006) Diagram

#

Description
Price

1

SEAT ASM,(ATV),P.RED Substituted by 2682357-136

2681724-136

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$34.99

5

BLIND RIVET(50)

7621403

$1.19

5

BLIND RIVET(50)

7621403

$1.19

6

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

6

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

Bumper, Rubber

5410414

$3.17

8

Bumper, Rubber

5410414

$3.17

9

RIVET,3/16X.402(50)

7621432

$1.19

10

BOLT(10)

7512232

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

12

CAB,REAR,RED,(350)

5431271-136

Unavailable

13

BRKT,R.HOLDDOWN

5220880

Unavailable

14

FOIL, REAR CAB (Inside)

5810957

Unavailable

15

Foil, Rear Cab, Small

5810991

Unavailable

16

BOLT, BLACK(10)

7512282

Unavailable

16

BOLT, BLACK(10)

7512282

Unavailable

16

BOLT, BLACK(10)

7512282

Unavailable

17

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

18

GUARD,CLUTCH,OUTER

5222860-067

$7.06

19

RIVET-3/16-.090-.290

7661637

$1.19

20

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

20

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

21

BRKT, LH MUD FLAP

5211131-067

Unavailable

22

NUT-LOCK(10)

7542122

$1.19

22

NUT-LOCK(10)

7542122

$1.19

22

NUT-LOCK(10)

7542122

$1.19

23

MUDFLAP,LH,R.BLK.

5850089-070

Unavailable

23

MUDFLAP,RH,R,BLK.

5850090-070

Unavailable

24

TAPE, FOIL

5810310

Unavailable

25

LID,TOOLBOX(SIL/B.BLUE)

5430769-1035

Unavailable

26

STRAP,TOOL COMPARTMENT

5410425

Unavailable

27

CLIP, LID HINGE(10)

7670050

Unavailable

28

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

29

BOX,TOOL COMP.

5430882

Unavailable

30

DECAL,LOAD DIST.(4 WHL.)

7074110

Unavailable

31

RIVET(50)

7621462

$1.19

32

RETAINER,TOOL POUCH

7080385

Unavailable

33

DECAL,CARB.INFO.

7073761

Unavailable

34

Grommet

5411042

$6.35

35

COVER,SEAT,P.RED

2681723-136

Unavailable
