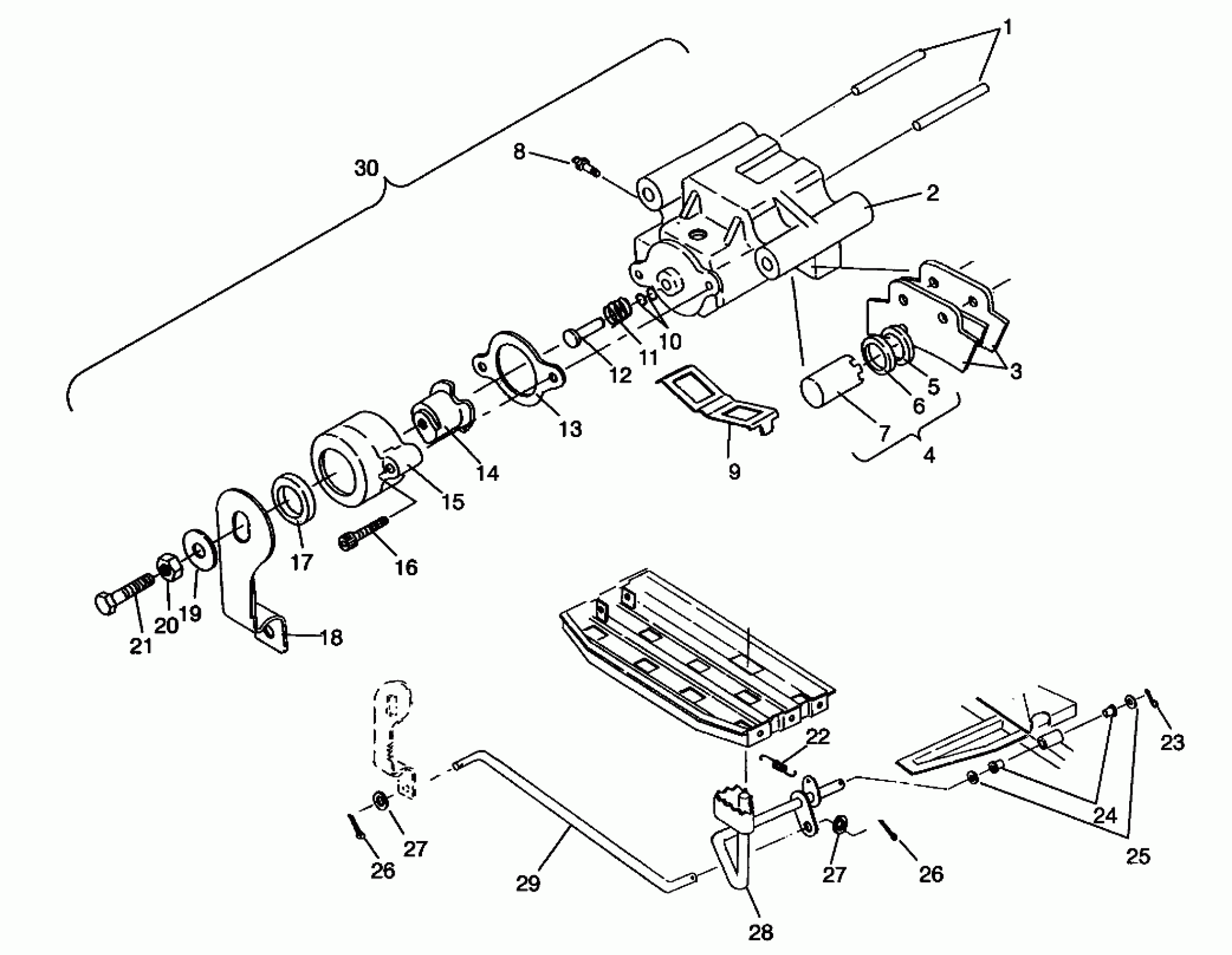

Polaris 400L 2X4 - W957540 REAR BRAKE ASSEMBLY 2x4 400L W957540 (4930093009B014) Diagram

#

Description
Price

1

PIN, DOWEL(10)

7661820

$13.99

2

CALIPER,R.BRAKE,MACH (Extruded)

5131272

Unavailable

2

CALIPER,BRAKE,MACH. Substituted by 5131117 (Cast)

5130946

Unavailable

3

KIT,BRAKEPAD,REAR

2200464

$66.65

4

KIT-PISTON & SEAL (Incl. 5-7)

2200463

$97.76

5

Square Ring (.134 Sq.)

----

Unavailable

6

Square Ring (.099 Sq.)

----

Unavailable

7

Piston, Caliper

----

Unavailable

8

SCREW,BLEEDER

7080352

$3.17

9

SPRING,ANTI-RATTLE (Extruded)

5240993

Unavailable

9

SPRING,ANTI-RATTLE (Cast)

5222232

Unavailable

10

O RING-.364X.504X.07

5410542

$4.84

11

SPRING,BRAKE,COMP.

7041219

Unavailable

12

PIN,BRAKE CALIPER

5020666

Unavailable

13

GASKET, BRAKE

5830009

Unavailable

14

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

15

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

16

SCREW(10)

7512173

Unavailable

17

SEAL, BRAKE

3610026

Unavailable

18

ARM,BRAKE CALIPER

5240901

Unavailable

19

WASHER, SPRING(10)

7555828

Unavailable

20

NUT(10)

7542129

$4.76

21

BOLT

7515145

Unavailable

22

SPRING-EXHAUST(10)

7042029

$5.65

23

COTTER PIN(10)

7661401

$0.79

24

BUSHING-PEDAL PIVOT

5431107

$8.73

25

WASHER THRUST(10)

7558702

$1.59

26

PIN COTTER(10)

7661203

$1.19

26

PIN COTTER(10)

7661203

$1.19

27

WASHER(10)

7555806

$0.79

27

WASHER(10)

7555806

$0.79

28

FOOTBRAKE,BLK.

1910144-067

Unavailable

29

ROD, BRAKE

5224531

$51.59

30

CAL.ASM,REAR BRAKE Substituted by 1910180 (Cast) (Incl. 1-21) Asm., Brake Caliper, Rear (Extruded) (Incl. 1-21)

1910156

Unavailable
