Partiron

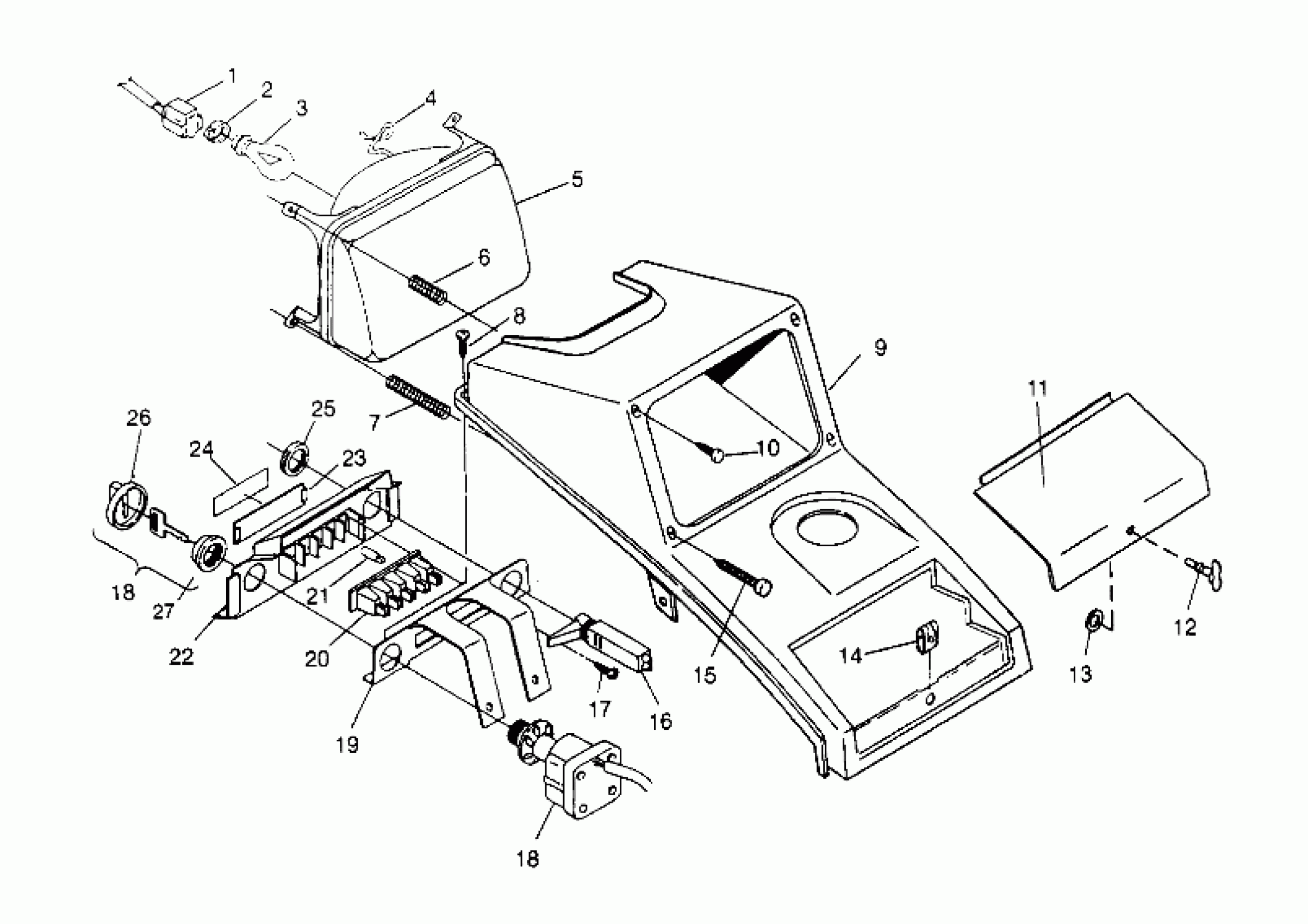

Polaris 400L 2X4 - W957540 HEADLIGHT ASSEMBLY 2x4 400L W957540 (4930093009A014) Diagram

#

Description
Price

1

HARNESS,HEADLIGHT

2460428

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

RETAINER,H/L BULB

4032063

Unavailable

5

HEADLIGHT ASM.

4032038

Unavailable

6

SPRING-ADJ

4032002

Unavailable

7

SPRING,ADJ.

4032041

Unavailable

8

SCREW(10)

7512017

$4.79

9

COVER,H/L,BON.BLUE

5431202-157

Unavailable

10

SCREW, ADJ.(10)

4032003

Unavailable

11

DOOR,ACCESS,BON.BLUE

5431201-157

$70.39

12

FASTENER, 1/4 TURN(10)

7670064

$6.23

13

RING,SPLIT RETAINER(10)

7670065

$1.99

14

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

15

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

16

KIT-CHOKE CONTROL

2200188

$24.27

16

CABLE, CHOKE

7080371

$97.13

17

SCREW, SEM(10)

7511862

$6.99

18

SWITCH, IGNITION (See Footnote)

4110140

$137.60

18

SWITCH, IGNITION (See Footnote)

4110140

$137.60

19

BRKT, IGN. PANEL

5220965-067

Unavailable

20

STRIP, SOCKET

4032037

$27.19

21

BULB

4030042

Unavailable

22

PANEL, IGNITION

5430995

Unavailable

23

LENS ASM,PILOT LIGHT (Incl. 24)

2652049

Unavailable

24

DECAL, PANEL [No Longer Available]

7072528

Unavailable

25

Nut

7080229

$19.99

26

COVER, KEY Substituted by 5433534

5431964

Unavailable

27

NUT,IGN.SWITCH NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

5432090

Unavailable
