Description

Price

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

SHIELD,R.CALIPER,BLK.

5240149-067

Unavailable

5

Asm., Brake Caliper , Rear (See Pg. A29, Ref.31 )

-------

Unavailable

6

PLATE,BOLT LOCK

5220958

$35.99

6

PLATE,BOLT LOCK

5220958

$35.99

7

BOLT, SHOULDER

7512702

Unavailable

8

DISC ASM,BRAKE

1910177

Unavailable

9

BRACE,BULKHEAD,BLK.

1040414-067

Unavailable

10

NUT,FLANGE LOCK(10)

7542449

$3.99

11

BOLT(10)

7515522

$3.99

11

BOLT(10)

7515522

$3.99

12

WASHER(10)

7552603

$1.49

12

WASHER(10)

7552603

$1.49

13

BOLT,CARRIAGE(10)

7515484

Unavailable

14

Asm., Gearcase (See Pg. A32)

-------

Unavailable

15

BOLT, SHOULDER (LH Side)

7512701

$23.99

16

BOLT(10)

7515472

$2.39

17

NUT LOCK(10)

7542403

$3.99

18

SPACER,BRAKE DISC GUARD

5333255

$5.03

19

DECAL,LUBRICATION

7074214

Unavailable

20

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

7072790

Unavailable

21

BOLT(10) Substituted by 7515339

7515328

Unavailable

22

WASHER(10)

7552606

$4.79

23

WASHER(10) Substituted by 7558402

7555770

Unavailable

24

GUARD, BRAKE DISC

5431766

Unavailable

25

WASHER(10) Substituted by 7558301

7555776

Unavailable

26

SCREW(10)

7512252

Unavailable

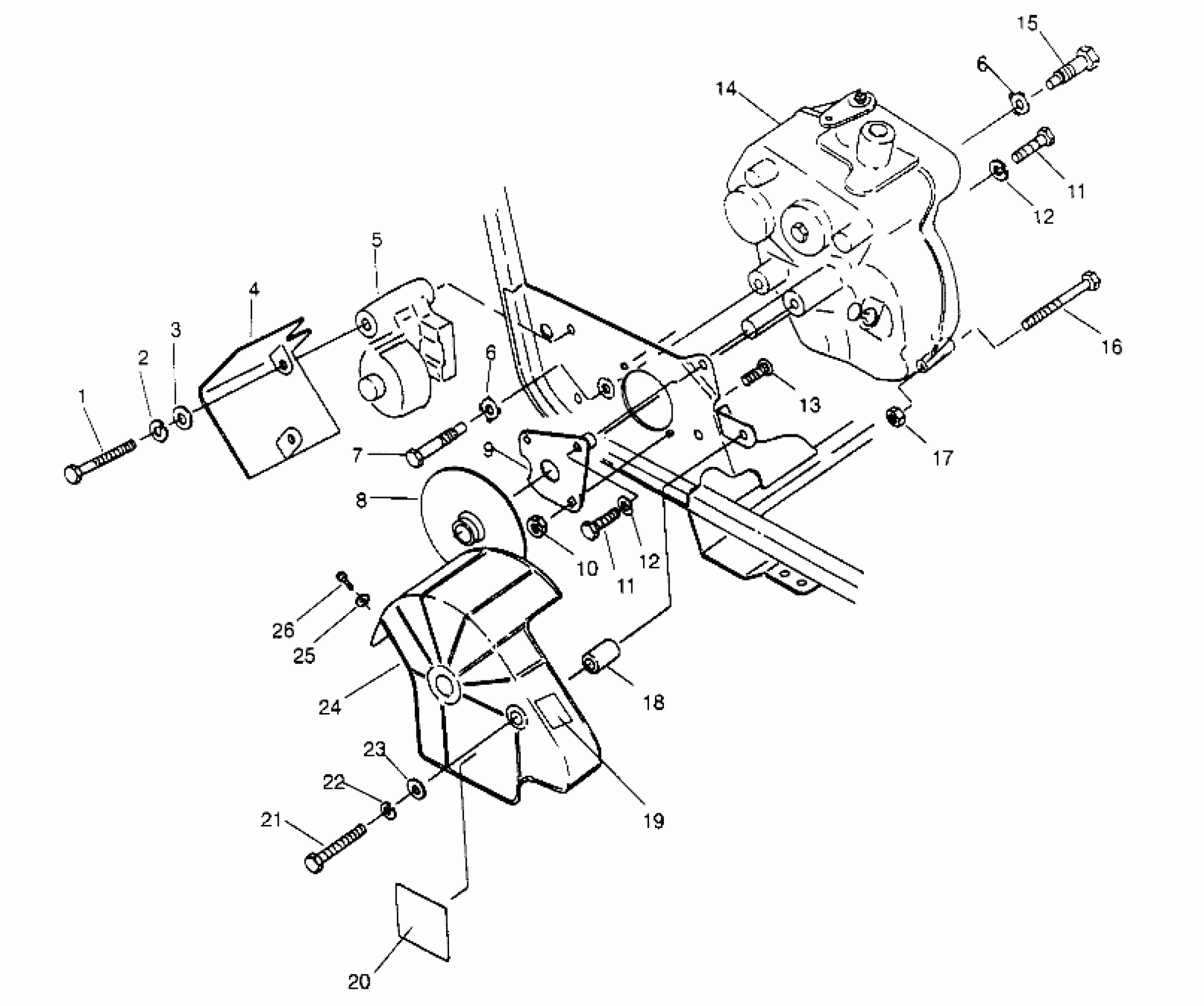

Polaris 400L 2X4 - W957540 GEARCASE/BRAKE MOUNTING 2x4 400L W957540 (4930093009B013) Diagram

BOLT(10)

LOCK WASHER(10)

WASHER-.344X.688X.063 FL-Y

SHIELD,R.CALIPER,BLK.

Asm., Brake Caliper , Rear (See Pg. A29, Ref.31 )

PLATE,BOLT LOCK

PLATE,BOLT LOCK

BOLT, SHOULDER

DISC ASM,BRAKE

BRACE,BULKHEAD,BLK.

NUT,FLANGE LOCK(10)

BOLT(10)

BOLT(10)

WASHER(10)

WASHER(10)

BOLT,CARRIAGE(10)

Asm., Gearcase (See Pg. A32)

BOLT, SHOULDER (LH Side)

BOLT(10)

NUT LOCK(10)

SPACER,BRAKE DISC GUARD

DECAL,LUBRICATION

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

BOLT(10) Substituted by 7515339

WASHER(10)

WASHER(10) Substituted by 7558402

GUARD, BRAKE DISC

WASHER(10) Substituted by 7558301

SCREW(10)
