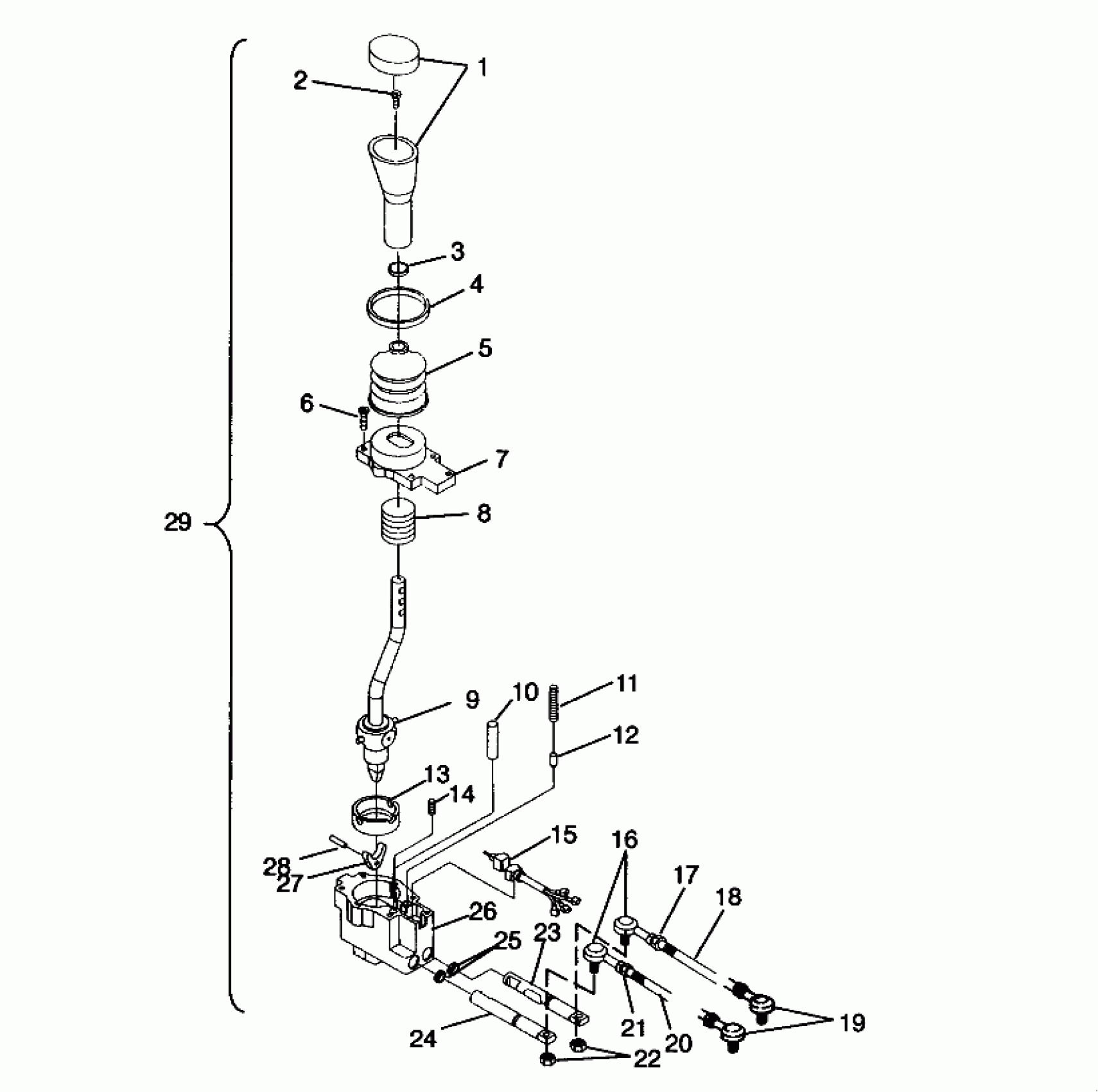

Polaris 400L 2X4 - W957540 GEAR SELECTOR 2x4 400L W957540 (4930093009C002) Diagram

#

Description
Price

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR Substituted by 3233368

3233133

$74.04

6

SCREW Substituted by 3233498

3233085

Unavailable

7

COVER,GEARSELECT,5-BOLT

3233204

Unavailable

8

SPRING,HOLDING

3233158

Unavailable

9

HANDLE,(SUBASSEMBLY)

3233163

Unavailable

10

PIN, STOP

3233062

Unavailable

11

SPRING,DETENT

3233069

Unavailable

12

BULLET,DETENT

3233060

$64.99

13

CUP,BEARING

3233063

$15.99

14

SPRING,CENTERING

3233083

Unavailable

15

SWITCH,GEAR SELECTOR Substituted by 3233371

3233138

$309.99

16

ROD END, RH Substituted by 7061014

7060142

$65.33

17

NUT(10) Substituted by 7546703

7546707

Unavailable

18

ROD,HI-RA.SHIFTLINK

5020729

Unavailable

19

ROD END, LH Substituted by 7061013

7060141

$65.33

20

ROD,LOW-RA.SHIFTLINK

5020730

Unavailable

21

NUT(10)

7546701

$3.99

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

23

SLIDE,HIGH/REV.

3233088

Unavailable

24

SLIDE,LOW

3233089

Unavailable

25

O-RING

3233076

$6.39

26

BODY,GEARSELECT,5-BOLT Substituted by 3233343

3233205

Unavailable

27

INTERLOCK,BUTTERFLY

3233084

Unavailable

28

PIN,INTERLOCK

3233070

Unavailable

29

SELECTOR ASM,GEAR,400 Substituted by 1341180 (Incl. 1-15, 23-28) NOTE: Gear Selector Asm. Ref. 29, utilizes 5 cover bolts. Some units will utilize Gear Selector Asm., PN 1341126 using 4 cover bolts. O

1341164

Unavailable
