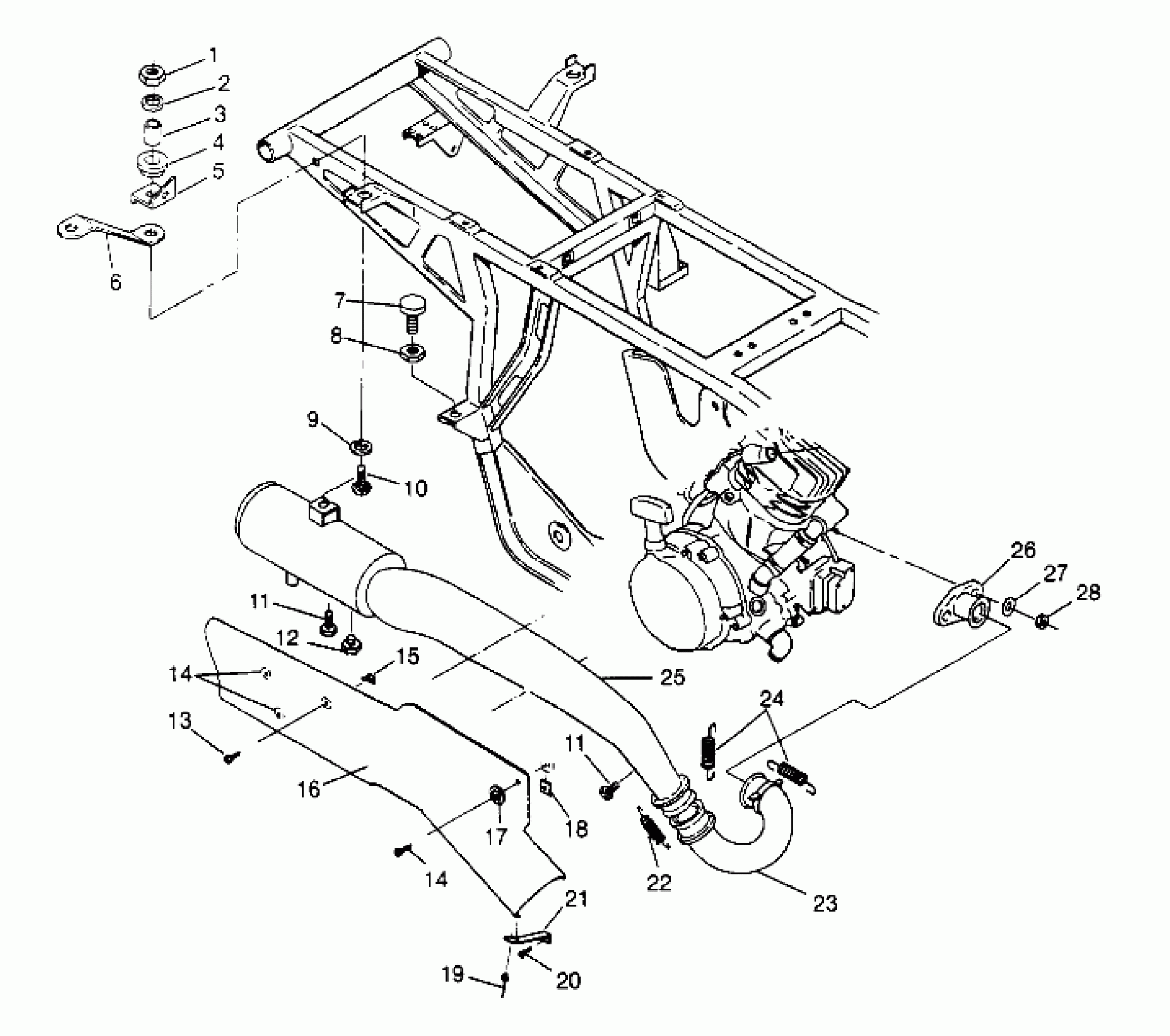

Polaris 400L 2X4 - W957540 EXHAUST SYSTEM 2x4 400L W957540 (4930093009A011) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

SUPPORT,R.FENDER

5220902-067

$48.40

7

MOUNT, MOTOR

3110030

Unavailable

8

NUT, JAM(10)

7542432

$3.99

9

WASHER,RUBBER

5410436

$1.59

10

BOLT(10)

7515316

$2.39

11

BOLT(10)

7512666

$2.39

11

BOLT(10)

7512666

$2.39

12

PLUG, CLEANOUT

7052083

$15.87

13

SCREW(10)

7515140

$3.19

14

BOLT, BLACK(10)

7512282

$1.49

14

BOLT, BLACK(10)

7512282

$1.49

15

INSERT, STEEL(10)

7542152

$6.23

16

HEATSHIELD ASM.

1260717

Unavailable

17

WASHER(10) Substituted by 7558301

7555776

Unavailable

18

NUT, SPEED(10)

7670060

$3.99

19

RIVET(50)

7621462

$1.49

20

SCREW(10)

7512252

Unavailable

21

BRKT,HEAT SHIELD,BLK.

5240594-067

$4.10

22

SPRING, EXHAUST(10)

7042031

$5.65

23

HEADPIPE WELD.

1260549-029

Unavailable

24

SPRING-EXHAUST(10)

7042029

$4.84

25

EXHAUST WELD,BLK,(350)

1260588-029

Unavailable

26

MANIFOLD, BLK.

1260543-029

Unavailable

27

Washer, Spring (See Pg. A35, Ref. 10)

-------

Unavailable

28

Nut (See Pg. A35, Ref. 9)

-------

Unavailable
