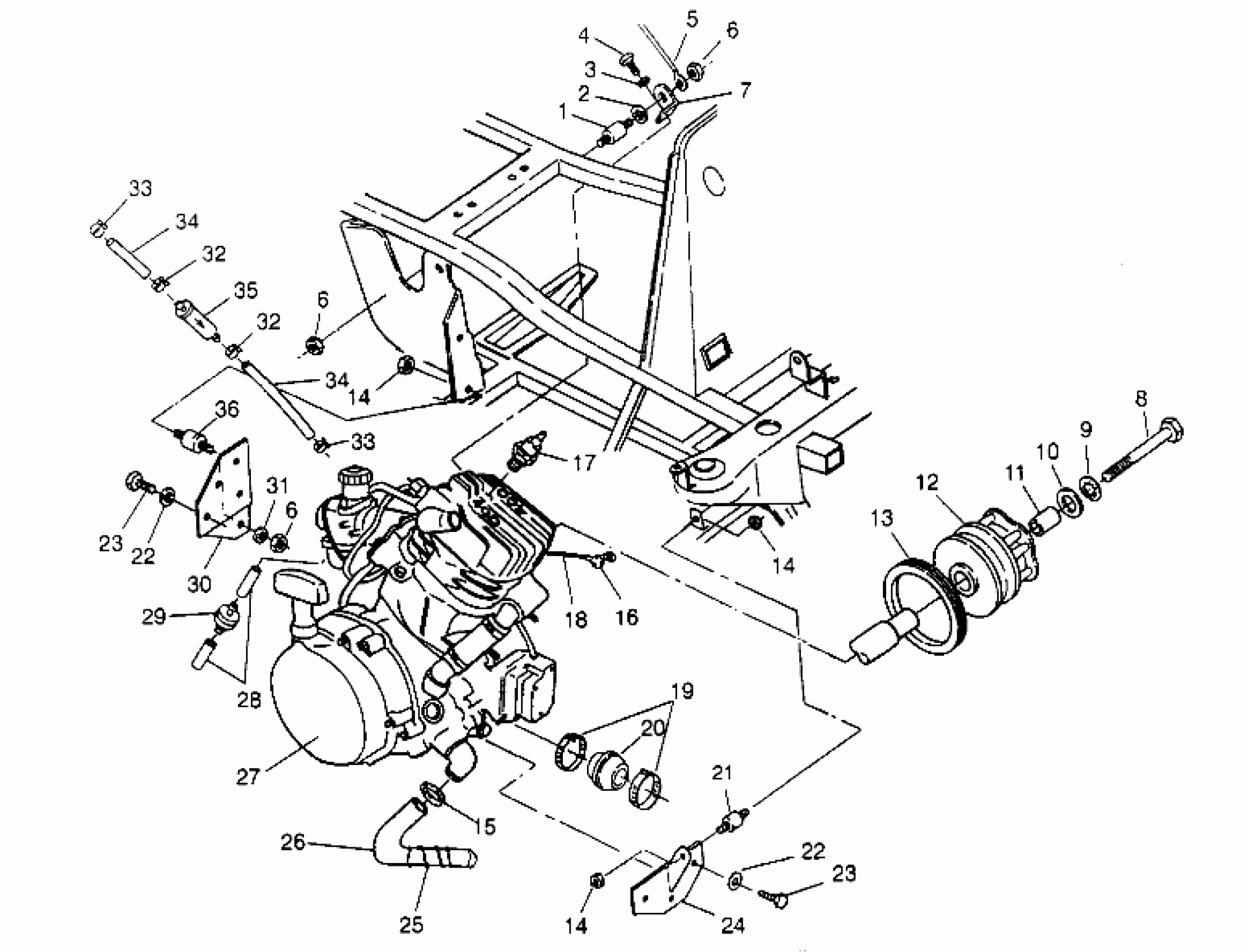

Polaris 400L 2X4 - W957540 ENGINE MOUNTING 2x4 400L W957540 (4930093009A009) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

LOCK WASHER(10)

7552901

$1.49

4

BOLT(10)

7515321

$1.49

5

CABLE,GROUND/ENG.

4010067

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

MOUNT,ENG.TOP

5222415-067

Unavailable

8

BOLT(10)

7512566

$30.79

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

11

BUSHING-.437 X.770 X.50

5430261

$7.19

12

Asm., Drive Clutch (See Pg. A25, Ref. 1)

-------

Unavailable

13

Seal, Cover Case (See Pg.A27, Ref.36 )

-------

Unavailable

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

15

CLAMP,WORM DRIVE

7080547

Unavailable

16

INSULATOR-CABLE

5410346

$6.39

17

SPARKPLUG (10)

3070156

$3.99

18

CABLE,SOLENOID/STARTER

4010064

Unavailable

19

CLAMP, NARROW BAND(10)

7080511

$4.79

20

BOOT,CLUTCH INTAKE(400)

5410883

$7.99

21

MOUNT,MOTOR

3110026

Unavailable

22

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

22

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

23

SCREW(10)

7512490

$3.99

23

SCREW(10)

7512490

$3.99

24

MOUNT,ENGINE

1040231-067

Unavailable

25

SPRING,HOSE RETAINER

7041079

$4.95

26

HOSE, LOWER ENG.

5410606

Unavailable

27

ENG.(S.B.)EC38PL-SB [No Longer Available]

3084718

Unavailable

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

29

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

30

MOUNT, REAR MOTOR, BLK.

5240542-067

Unavailable

31

WASHER(10)

7555801

$3.99

32

CLAMP-HOSE, (LARGE GREEN) (Yellow)

7080307

$1.49

32

CLAMP-HOSE, (LARGE GREEN) (Yellow)

7080307

$1.49

33

STRAP,8 IN.TYTON

7080571

$2.47

33

STRAP,8 IN.TYTON

7080571

$2.47

34

DESC NOT_AVAILABLE

8450003-600

Unavailable

34

DESC NOT_AVAILABLE

8450003-600

Unavailable

35

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

36

MOUNT,RUBBER,ENG.

3110042

Unavailable
