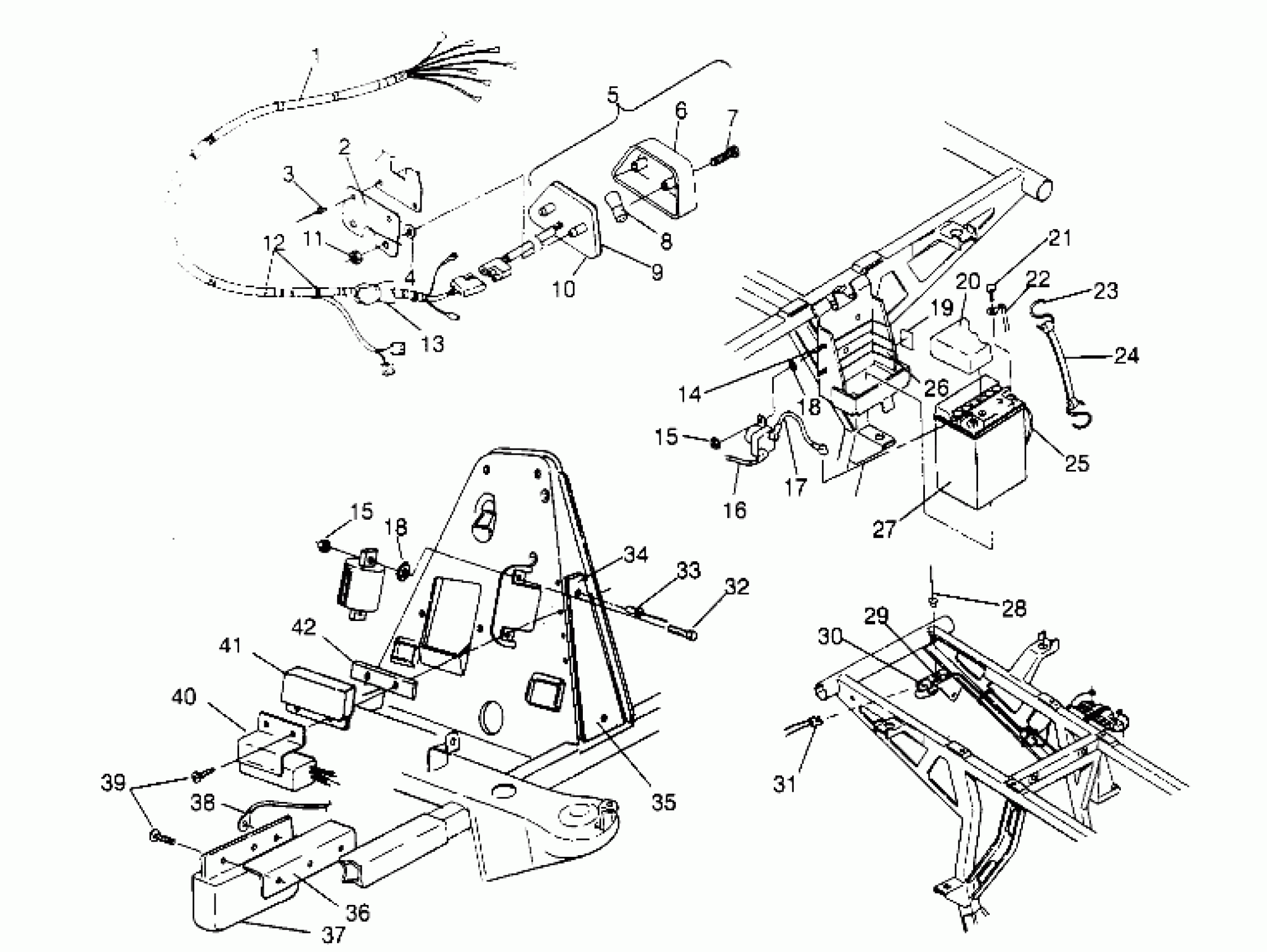

Polaris 400L 2X4 - W957540 ELECTRICAL/TAILLIGHT ASSEMBLY 2x4 400L W957540 (4930093009C005) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE(400-4X4)

2460476

Unavailable

2

ISOLATOR,TAILLIGHT

5211391-067

$13.39

3

RIVET(50)

7621470

$3.17

4

WASHER,NYLON(10)

7555916

$1.59

5

TAIL LIGHT ASM.

2432034

$55.99

6

LENS,TAILLIGHT

4032046

$32.37

7

Screw, Taillight

4032029

$4.79

8

BULB,TAILLIGHT

4030043

$6.46

9

GASKET,TAILLIGHT

4032045

$4.03

10

BACKING,TAILLIGHT

4032064

$83.99

11

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CKT.BREAKER,20 AMP.

2434012

$38.89

14

SCREW(10)

7512027

$1.49

15

NUT(10)

7541925

$1.49

15

NUT(10)

7541925

$1.49

16

CABLE,SOLENOID/STARTER

4010064

Unavailable

17

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

18

WASHER(10)

7571602

$4.79

18

WASHER(10)

7571602

$4.79

19

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

20

COVER,BATTERY

5431769

$14.39

21

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

22

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

23

HOOK-BATT.H/D(10)

7010032

$1.59

24

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

25

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

26

PAD-BATTERY

5810290

$7.27

27

Battery

4140006

$99.99

28

RIVET,(50)

7621336

$1.59

29

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable

30

POWER ASM,12V

2410022

Unavailable

31

PIGTAIL, POWER

2460442

$12.39

32

SCREW(10)

7512007

$3.99

33

RIVET, POP(50)

7621322

$0.56

34

BOARD,TERMINAL

4040056

Unavailable

35

SHIELD,TERM.BOARD

5431152

Unavailable

36

HEATSINK RECT.

5131036

Unavailable

37

RECTIFIER,SWITCHING

4060113

Unavailable

38

HARNESS,JUMPER,RECTIFIER

2460485

Unavailable

39

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

40

BRKT,CDI(ATV 400)

5240428

Unavailable

41

LIMITER,RPM,350HZ. Substituted by 4060203

4060112

Unavailable

42

HEAT SINK

5210650

Unavailable
