Partiron

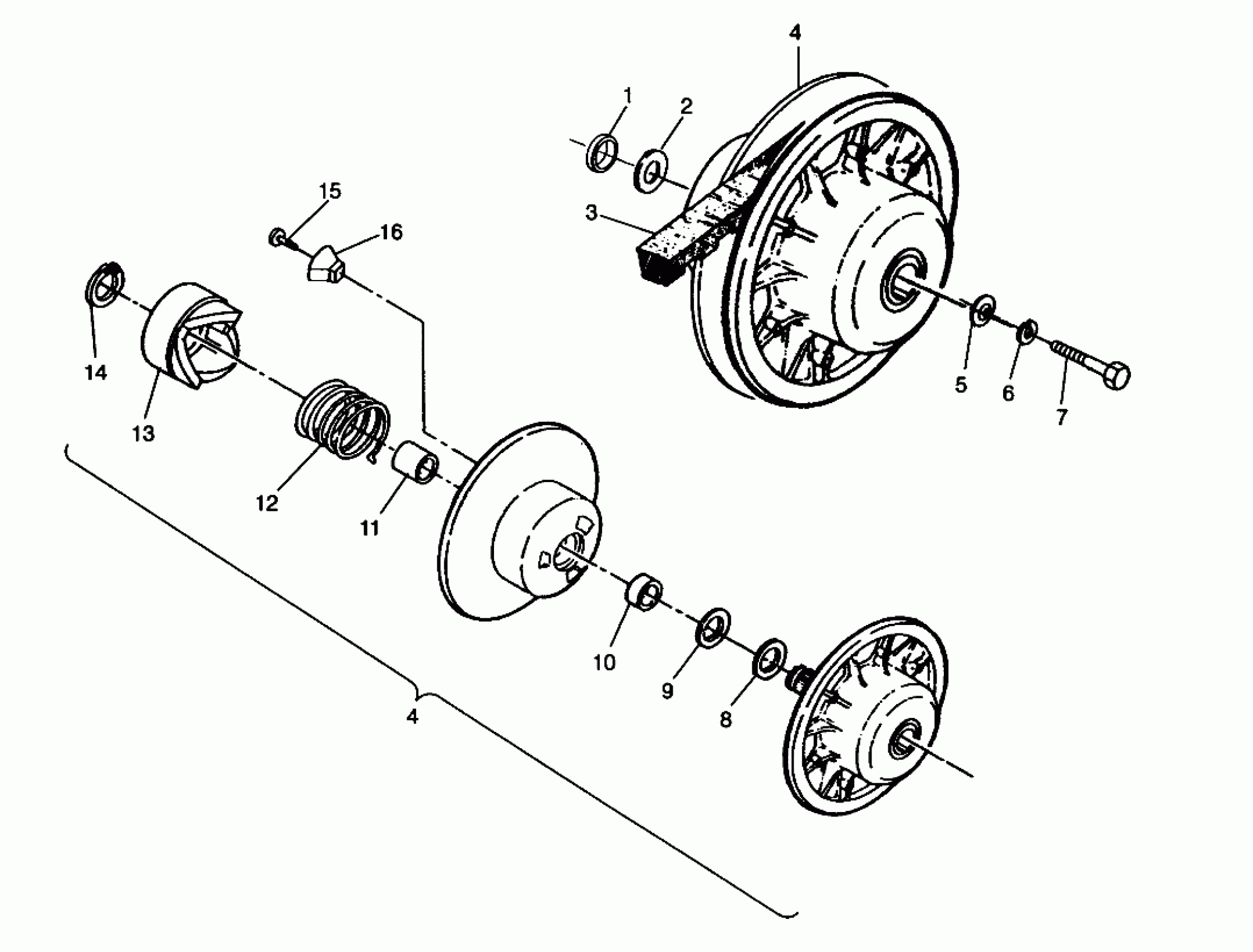

Polaris 400L 2X4 - W957540 DRIVEN CLUTCH ASSEMBLY 2x4 400L W957540 (4930093009B011) Diagram

#

Description
Price

1

SPACER Substituted by 5010379

5010266

Unavailable

2

BUSHING(10)

7556401

Unavailable

3

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

4

CLUTCH,DRIVEN,3 ANGLE Substituted by 1322182

1322163

$614.99

4

CLUTCH,DRIVEN,3 ANGLE Substituted by 1322182

1322163

$614.99

5

WASHER, DOMED(10)

5220646

$2.39

6

LOCK WASHER(10)

7552901

$1.49

7

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

8

WASHER(10)

7555898

Unavailable

9

WASHER(10)

7556804

Unavailable

10

BUSHING, DRIVEN

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

SPRING,CLUTCH,(RED)

7041198

$52.60

13

RAMP,STATIONARY Substituted by 5131447

5630321

$77.21

14

RETAINING RING(10)

7714401

$2.63

15

BOLT(10)

7511854

$1.49

16

BUTTON,RAMP

5430766

Unavailable
