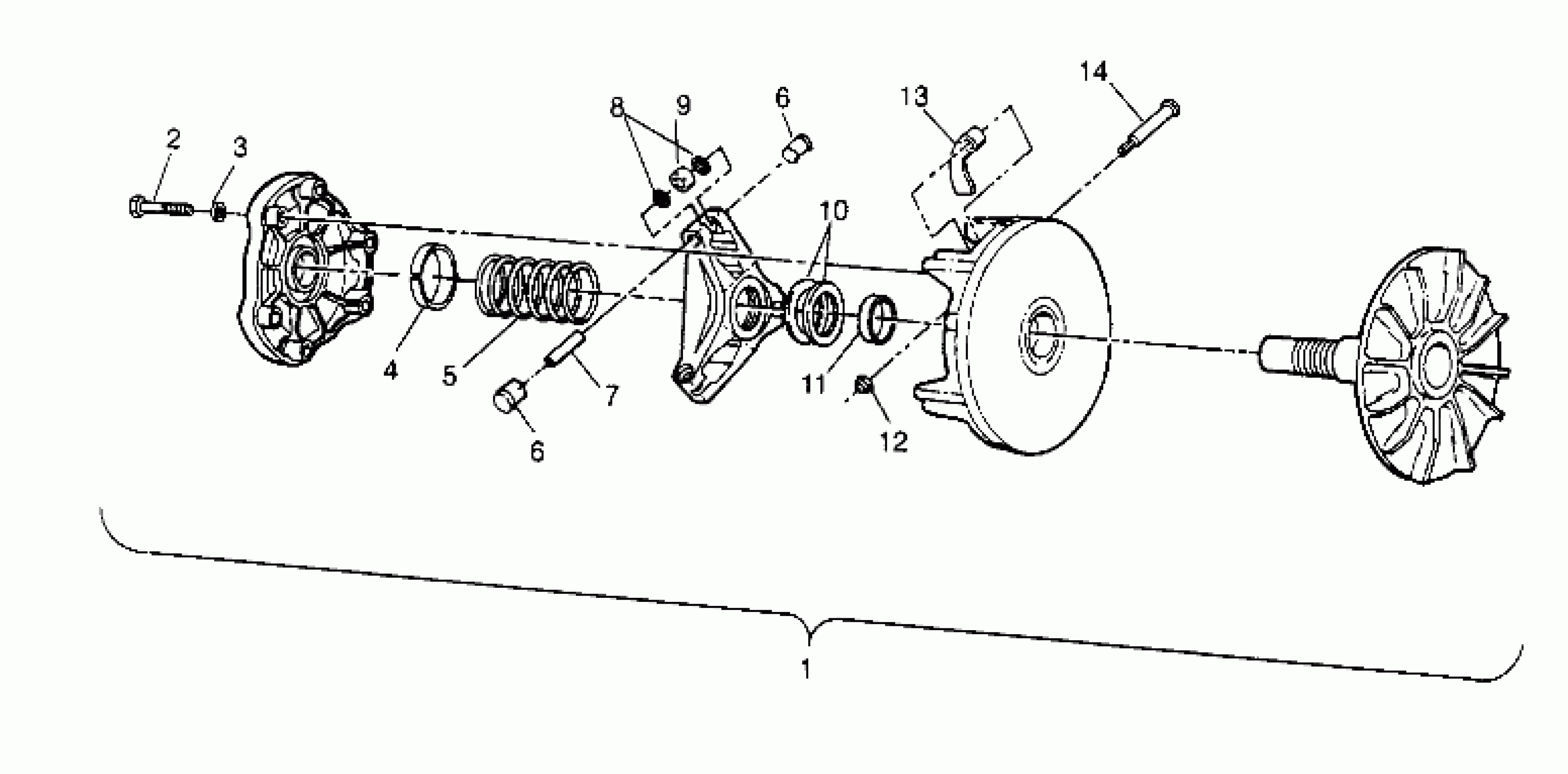

Polaris 400L 2X4 - W957540 DRIVE CLUTCH ASSEMBLY 2x4 400L W957540 (4930093009B010) Diagram

#

Description
Price

1

CLUTCH,DRIVE(ATV-06) (Less 5, 13)

1321632

$697.13

2

BOLT(10) Substituted by 7512163

7512176

Unavailable

3

LOCK WASHER(10)

7552801

$1.59

4

BEARING, COVER,(10)

3576510

$9.59

5

SPRING,CLUTCH

7041157

$47.99

6

BUTTON,CLUTCH

5431936

Unavailable

6

BUTTON,CLUTCH

5431936

Unavailable

7

PIN-ROLLER

5020422

$2.39

8

WASHER,MULTILUBE

5430945

$1.59

9

ASM-ROLLER AND BUSHING

1321457

$40.46

10

SPACER(10)

5210754

Unavailable

10

SPACER(10)

5210752

Unavailable

10

SPACER(10)

5210753

Unavailable

11

BUSHING, DRIVEN

3576504

$23.99

12

NUT FLEX LOC(10)

7541906

$3.19

13

WEIGHT, SHIFT S-55(6) (S)-55

5630509

$31.99

14

BOLT,SPECIAL(10)

7512266

$3.19
