COOLING SYSTEM 2x4 400L W957540 (4930093009A010)

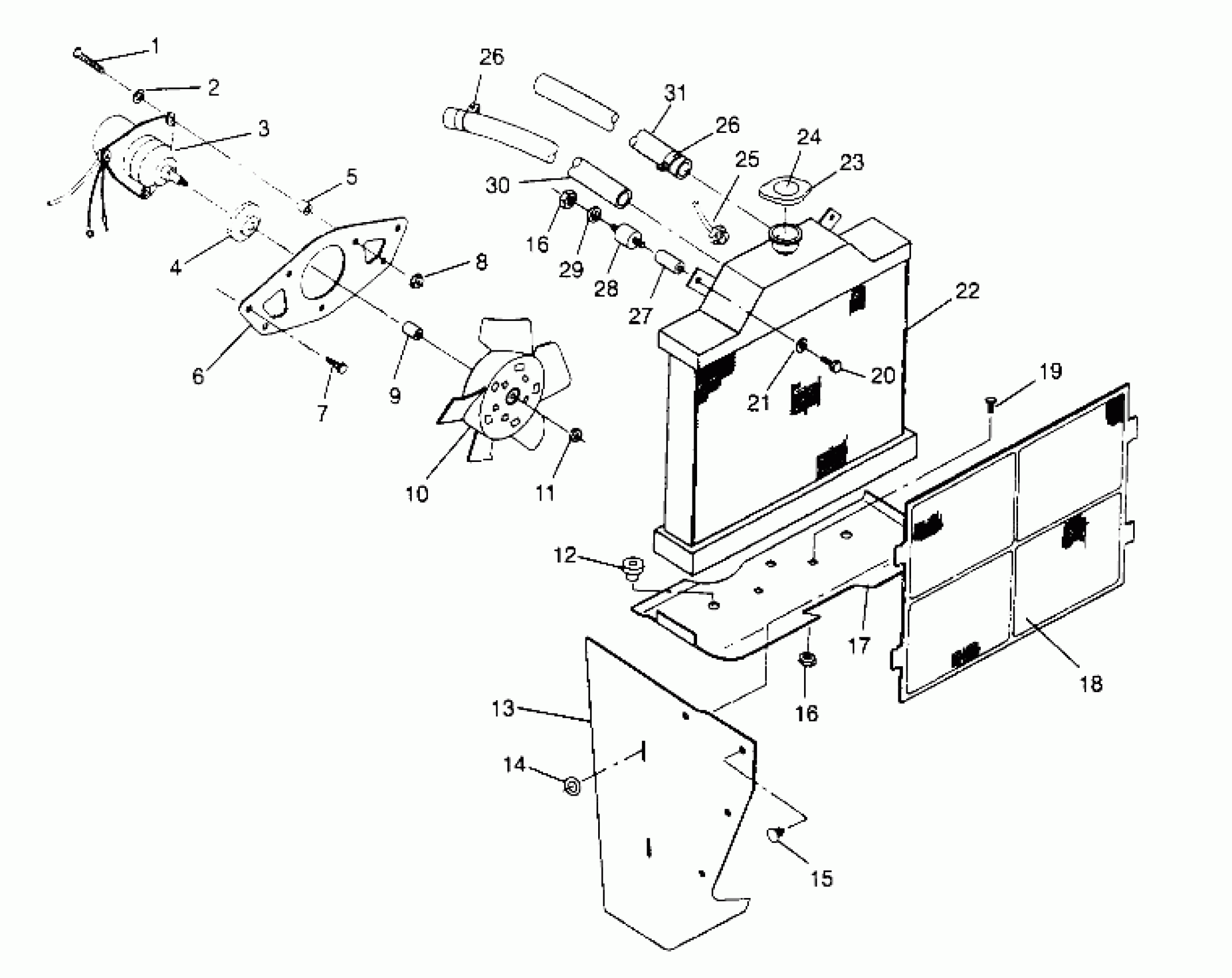

Polaris 400L 2X4 - W957540 COOLING SYSTEM 2x4 400L W957540 (4930093009A010) Diagram
#
Description
Price
1
SCREW(10)
7511874
Unavailable
2
WASHER, FLAT(10)
7558201
$5.79
3
MOTOR, FAN Substituted by 4170009 (Incl. 4, 9, 11)
3084266
Unavailable
4
COVER
3083951
Unavailable
5
SPACER, FAN BRKT.
5333073
$3.83
6
BRKT,COOLING FAN Substituted by 5224741-067
5222559-067
Unavailable
7
BOLT(10)
7512232
$1.49
8
NUT(10)
7541915
Unavailable
9
BUSHING
3083950
Unavailable
10
BLADE, FAN Substituted by 5240822
5431262
$57.14
11
NUT
3083952
Unavailable
12
BUSHING-MOUNT,LOWER RADIATOR
5410584
$5.59
13
SHIELD,LH RADIATOR
5431188
Unavailable
13
SHIELD,RH RADIATOR
5431189
Unavailable
14
O RING
5410607
$5.99
15
CLIP,PLASTIC DART(10)
7670078
$3.19
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
17
GUARD,LOW.RADIATOR
5222547-067
Unavailable
18
COVER,RADIATOR,W/MESH
5431610
Unavailable
19
BOLT(10)
7512193
$2.39
20
SCREW(10)
7512113
$3.99
21
WASHER(10)
7552605
$5.27
22
RADIATOR
1240006
Unavailable
23
CAP, RADIATOR Substituted by 2511270
2511189
Unavailable
24
DECAL(CPSC),RAD.CAP
7073068
Unavailable
25
SWITCH,RADIATOR THERMO.
4110099
Unavailable
26
CLAMP,WORM DRIVE
7080547
Unavailable
26
CLAMP,WORM DRIVE
7080547
Unavailable
27
Spacer, Mount
5020572
$8.79
28
Mount, Rubber
3110032
$7.99
29
WASHER(10)
7558301
$1.49
30
HOSE, LOWER ENG.
5410606
Unavailable
31
HOSE,ENG,UPPER
5410570
$44.51
