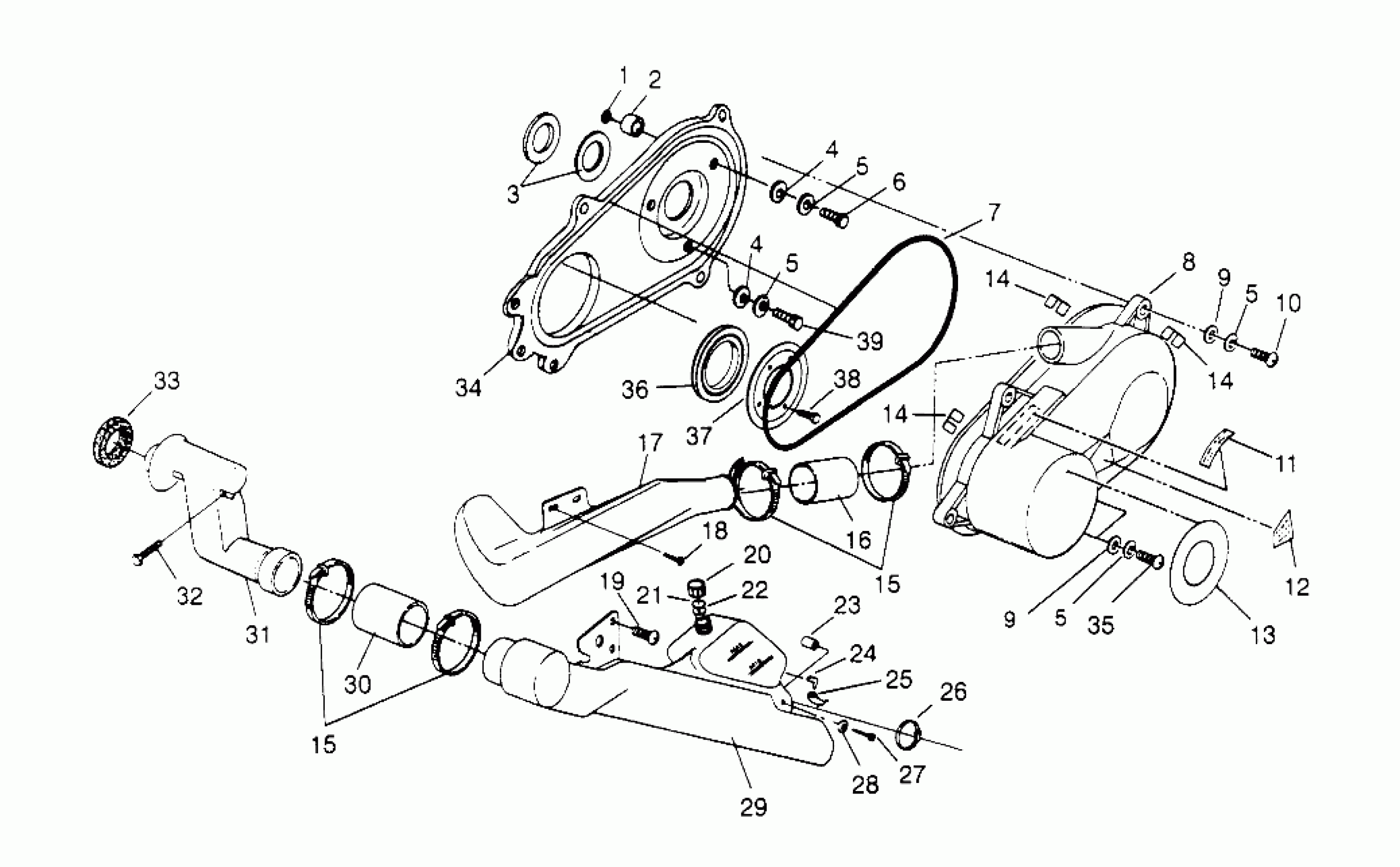

Polaris 400L 2X4 - W957540 CLUTCH COVER ASSEMBLY 2x4 400L W957540 (4930093009B012) Diagram

#

Description
Price

1

O RING

5410565

Unavailable

2

SPACER

5333062

Unavailable

3

SEAL,COVER CASE

5410489

$13.75

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

5

WASHER(10)

7552605

$5.69

5

WASHER(10)

7552605

$5.69

5

WASHER(10)

7552605

$5.69

5

WASHER(10)

7552605

$5.69

6

BOLT(10)

7512277

$4.76

7

SEAL,CLUTCHCOVER

5521301

$32.37

8

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$190.22

9

WASHER(10) Substituted by 7558301

7555776

$1.19

9

WASHER(10) Substituted by 7558301

7555776

$1.19

10

BOLT(10)

7512281

$3.97

11

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

12

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

13

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

Unavailable

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

BOOT,CLUTCH INTAKE

5410421

$11.32

17

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

5431671

Unavailable

18

BOLT(10)

7512232

$1.19

19

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

20

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

21

GASKET-OVERFLOW CAP

5810279

$2.41

22

PLUG,CAP Substituted by 5433774

5431895

$5.65

23

SPACER

5020577

$16.80

24

FITTING,90 DEGREE

7052065

$7.14

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$89.99

26

CLAMP, NARROW BAND(10)

7080511

$4.76

27

SCREW(10)

7512025

$4.76

28

WASHER(10)

7555783

$3.97

29

DOWNTUBE,DUAL INLET Substituted by 5432336

5431185

$133.56

30

BOOT, INTAKE

5410509

Unavailable

31

DUCT, INLET, TOP

5431261

$49.21

32

SCREW(10)

7512017

$4.76

33

SEAL, INTAKE

5810480

Unavailable

34

COVER,CLUTCH,INNER Substituted by 2200792

5431716

$309.99

35

SCREW(10)

7512222

$2.38

36

Seal, Cover Case

5410575

$44.51

37

BRKT,RETAINER,SEAL

5222446-067

Unavailable

38

SCREW & WASHER(10)

3084205

$3.97

39

BOLT(10)

7512278

Unavailable
