CARBURETOR 2x4 400L W957540 (4930093009D006)

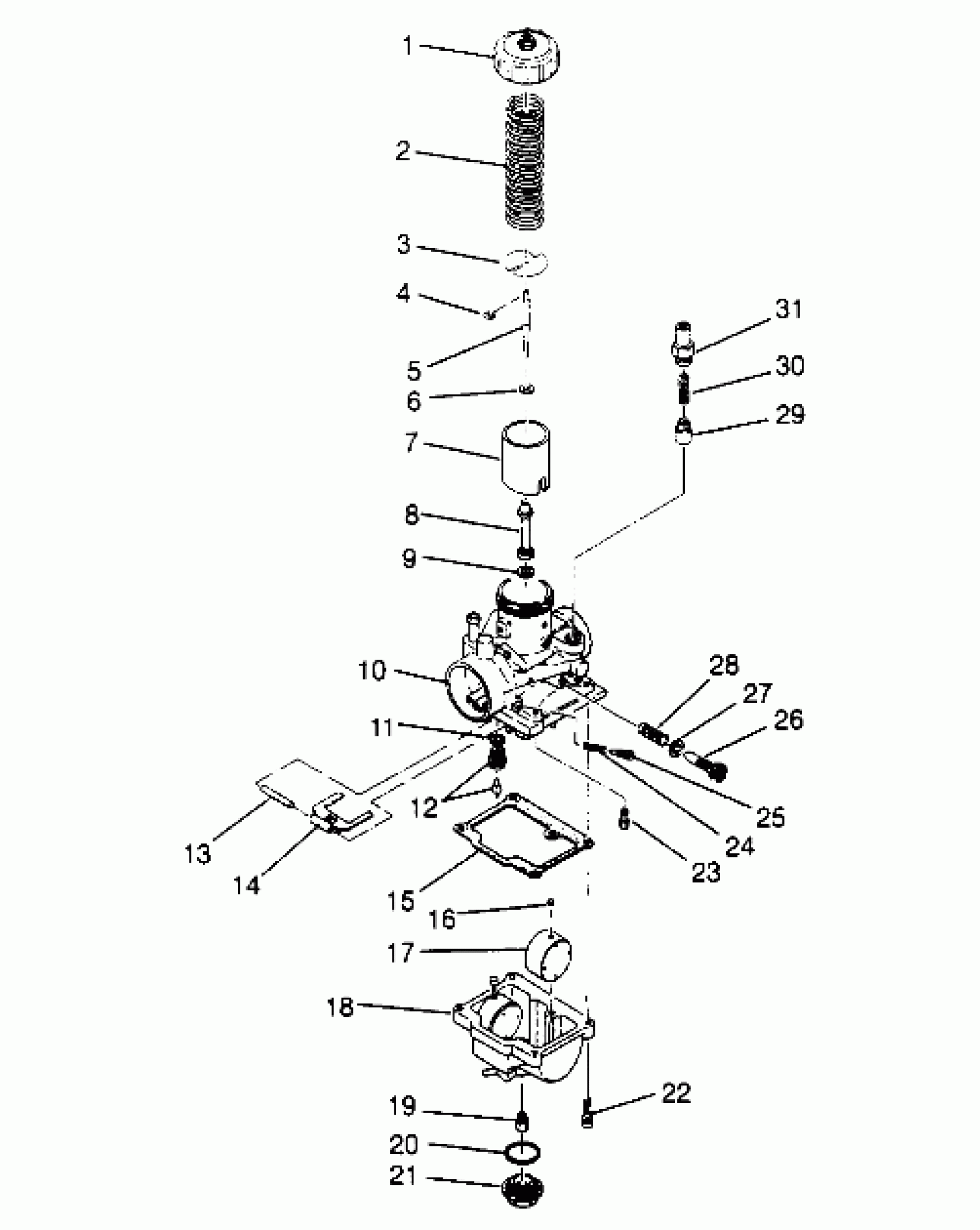

Polaris 400L 2X4 - W957540 CARBURETOR 2x4 400L W957540 (4930093009D006) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
Spring, Throttle
3130496
$28.32
3
PLATE (Throttle)
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE,6-DH29 (6DH29-3)
3130462
Unavailable
6
Washer
3130355
$7.19
7
VALVE,THROTTLE,(1.5) (1.5)
3130494
Unavailable
8
NEEDLE JET ASM.
3130429
Unavailable
9
RING, MAIN JET
3130393
Unavailable
10
CARBURETOR Substituted by 3130710 (Incl. 1-31)
3130493
Unavailable
11
WASHER(10)
3130047
$4.84
12
NEEDLE VALVE ASM.(2.5) (2.5)
3130495
$65.63
13
PIN, FLOAT
3130361
$8.89
14
ARM,FLOAT
3130018
$24.27
15
PACKING,FLOAT CHAMBER
3130020
$16.17
16
CAP,(10)
3130237
$4.03
17
FLOAT ASM.
3130430
$43.56
18
BOWL, FLOAT (350)
3130443
Unavailable
19
JET,MAIN,HX.HD#200(10) (#200)
3130123
$7.27
20
O RING
3130239
Unavailable
21
Screw, Guide
3130432
$27.99
22
SCREW & WASHER(10)
3130025
$3.19
23
JET,PILOT,#30(10) (#30)
3130065
$8.89
24
SPRING,AIR ADJUST
3130012
$8.89
25
SCREW,AIR
3130011
$19.99
26
SCREW,THROTTLE STOP
3130009
$19.99
27
Washer
3130447
Unavailable
28
SPRING,THROT.ADJ.
3130436
Unavailable
29
PLUNGER ASM, STARTER
3130328
$32.37
30
SPRING,PLUNGER
3130006
$8.89
31
HOLDER,GUIDE
3130199
$28.32
