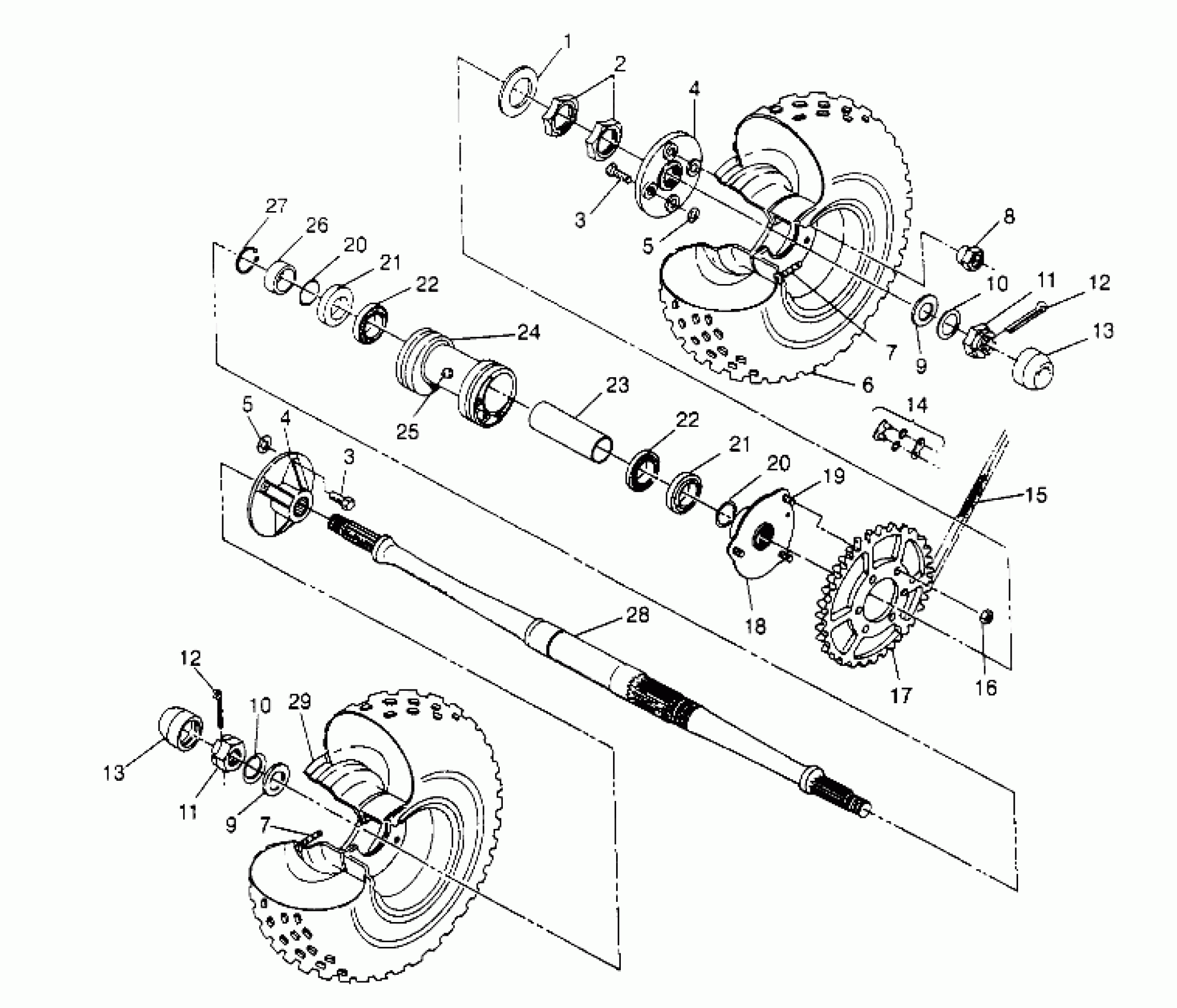

Polaris 400L 2X4 - W947540 REAR WHEEL DRIVE ASSEMBLY 2x4 400L W947540 (4926752675C001) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

BOLT, WHEEL(10)

7512673

$3.17

3

BOLT, WHEEL(10)

7512673

$3.17

4

KIT, MACH.HUB (Incl. 10)

2200341

$93.08

4

KIT, MACH.HUB (Incl. 10)

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.97

5

PUSHNUT, BOLT(10)

7670081

$3.97

6

TIRE,R(24X11-10) (24x11x10)

5410479

Unavailable

7

VALVE-RIM

1525017

$6.46

7

VALVE-RIM

1525017

$6.46

8

NUT, WHEEL(10)

7542714

$1.59

9

WASHER(10)

7555745

Unavailable

9

WASHER(10)

7555745

Unavailable

10

WASHER, CONE(10)

7555796

$7.94

10

WASHER, CONE(10)

7555796

$7.94

11

NUT, CASTLE(10)

7543005

Unavailable

11

NUT, CASTLE(10)

7543005

Unavailable

12

PIN, COTTER(10)

7661404

$4.76

12

PIN, COTTER(10)

7661404

$4.76

13

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

13

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

14

CONNECTOR LINK

3225024

$24.27

15

CHAIN, DRIVE, 84P Substituted by 3224056-084

3224047

$145.70

16

NUT LOCK(10)

7542403

Unavailable

17

SPROCKET, 34T Substituted by 3222068

3222050

$109.99

18

SPROCKET HUB ASM. (Incl. 19)

1520170

Unavailable

19

STUD(10)

7515513

$1.19

20

O RING, 1 5/16(10)

5410415

Unavailable

21

SEAL, REAR AXLE

3610013

Unavailable

21

SEAL, REAR AXLE

3610013

Unavailable

21

SEAL, REAR AXLE

3610013

Unavailable

22

Bearing, Ball

3515501

$27.78

22

Bearing, Ball

3515501

$27.78

23

TUBE,BEARING SPACER

5010204

Unavailable

24

HOUSING, AXLE

5130663

Unavailable

25

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

26

SPACER,BEARING

5010206

Unavailable

27

RING, SNAP(10)

7710405

$4.76

28

AXLE, REAR

5020504

$239.99

29

RIM-REAR, 8.5/10,SILVER

1520183-117

Unavailable
