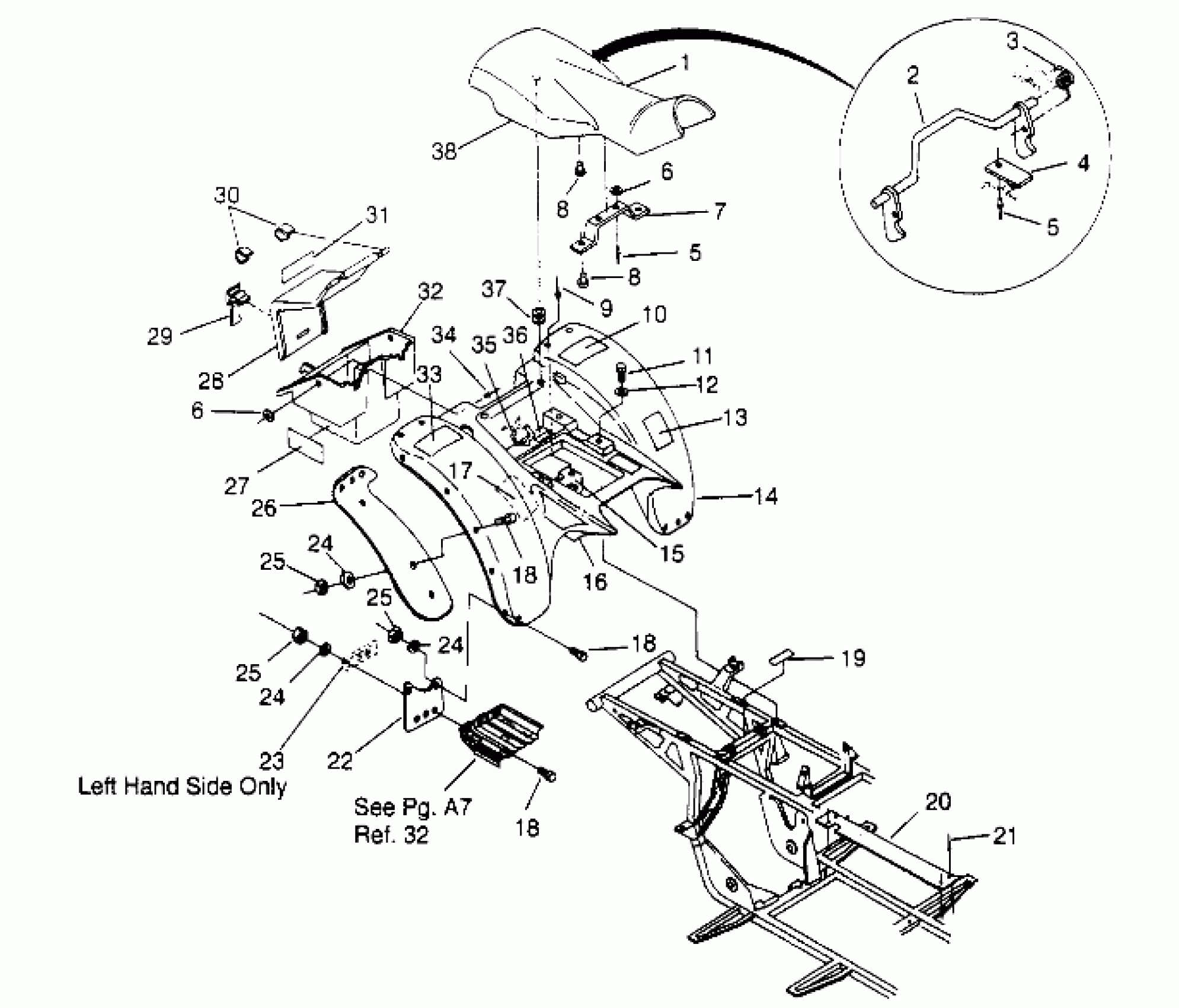

Polaris 400L 2X4 - W947540 REAR CAB ASSEMBLY 2x4 400L W947540 (4926752675A006) Diagram

#

Description
Price

1

SEAT ASM,(ATV),LT.GRY Substituted by 2682203-143

2681724-143

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$34.99

5

BLIND RIVET(50)

7621403

$1.19

5

BLIND RIVET(50)

7621403

$1.19

6

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

6

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

Bumper, Rubber

5410414

$3.17

8

Bumper, Rubber

5410414

$3.17

9

RIVET,3/16X.402(50)

7621432

$1.19

10

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

11

BOLT(10)

7512232

$1.19

12

WASHER, FLAT(10)

7555859

$1.19

13

DECAL(CPSC),TIRE PRESS(4X4) [No Longer Available]

7072810

Unavailable

14

CAB,REAR,RED,(350)

5431271-136

Unavailable

15

BRKT,R.HOLDDOWN

5220880

Unavailable

16

FOIL, REAR CAB (Inside)

5810957

Unavailable

17

Foil, Rear Cab, Small

5810991

Unavailable

18

BOLT, BLACK(10)

7512282

Unavailable

18

BOLT, BLACK(10)

7512282

Unavailable

18

BOLT, BLACK(10)

7512282

Unavailable

19

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

20

GUARD,CLUTCH,OUTER

5222860-067

$7.06

21

RIVET-3/16-.090-.290

7661637

$1.19

22

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

22

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

23

BRKT, LH MUD FLAP

5211131-067

Unavailable

25

NUT-LOCK(10)

7542122

$1.19

25

NUT-LOCK(10)

7542122

$1.19

25

NUT-LOCK(10)

7542122

$1.19

26

MUDFLAP,LH,R.BLK.

5850089-070

Unavailable

26

MUDFLAP,RH,R,BLK.

5850090-070

Unavailable

27

TAPE, FOIL

5810310

Unavailable

28

LID,TOOLBOX(SIL-P.RED)

5430769-1020

Unavailable

29

STRAP,TOOL COMPARTMENT

5410425

Unavailable

30

CLIP, LID HINGE(10)

7670050

Unavailable

31

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

32

BOX,TOOL COMP.

5430882

Unavailable

33

DECAL,LOAD DIST.(4 WHL.)

7074110

Unavailable

34

RIVET(50)

7621462

$1.19

35

RETAINER,TOOL POUCH

7080385

Unavailable

36

DECAL,CARB.INFO.

7073761

Unavailable

37

GROMMET

5410413

Unavailable

38

COVER,SEAT,LT.GREY

2681723-143

Unavailable
