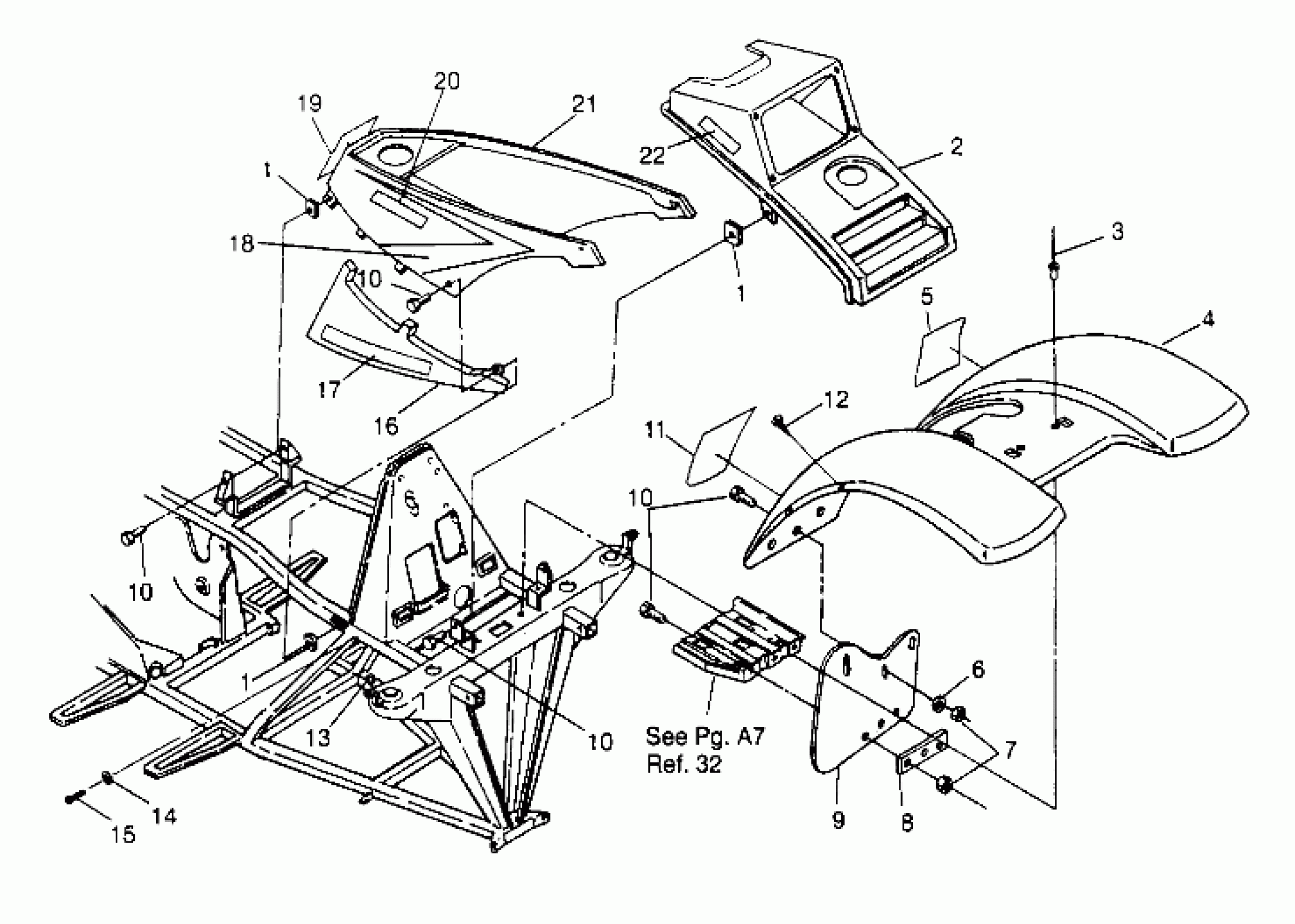

Polaris 400L 2X4 - W947540 FRONT CAB ASSEMBLY 2x4 400L W947540 (4926752675A005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

COVER,(P.RED),H/L.

5431202-136

Unavailable

3

RIVET(50)

7621457

$1.49

4

CAB ASM,FR.LIQ-4WH,RED (Incl. 5,11)

2631610-136

Unavailable

5

DECAL,WARNING(CPSC) [No Longer Available]

7072693

Unavailable

6

WASHER, FLAT(10)

7555859

$1.49

7

NUT-LOCK(10)

7542122

$1.49

8

BRKT, LH MUD FLAP

5211131-067

Unavailable

9

MUDFLAP,FRT,LH,BLK.

5850082-070

$11.59

9

MUDFLAP,FRT,RH,BLK.

5850092-070

$10.71

10

BOLT, BLACK(10)

7512282

$1.49

10

BOLT, BLACK(10)

7512282

$1.49

10

BOLT, BLACK(10)

7512282

$1.49

10

BOLT, BLACK(10)

7512282

$1.49

11

DECAL,WARN(CPSC),DISCRET.

7074608

Unavailable

12

CLIP, PUSH-ON(10)

7670052

$1.99

13

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

14

WASHER,WROUGHT(10)

7558302

$1.59

15

BOLT(10)

7512232

$1.49

16

COVER,LH PAN(L.GREY) Substituted by 5433382-143

5430970-143

Unavailable

16

COVER,RH,PAN.(L.GREY) Substituted by 5433579-143

5430971-143

Unavailable

17

DECAL,RH,SIDEPANEL

7074231

Unavailable

17

DECAL,LH,SIDEPANEL

7074230

Unavailable

18

DECAL,RH,TANKSIDE

7074229

Unavailable

18

DECAL,LH,TANKSIDE

7074228

$16.68

19

DECAL(CPSC),AGE WARN. Substituted by 7074827

7072933

Unavailable

20

DECAL,'LIQUID COOLED'

7074250

Unavailable

21

COVER,FUELTANK,GREY

5431263-143

Unavailable

22

DECAL,'POLARIS'H/L POD

7074227

Unavailable
