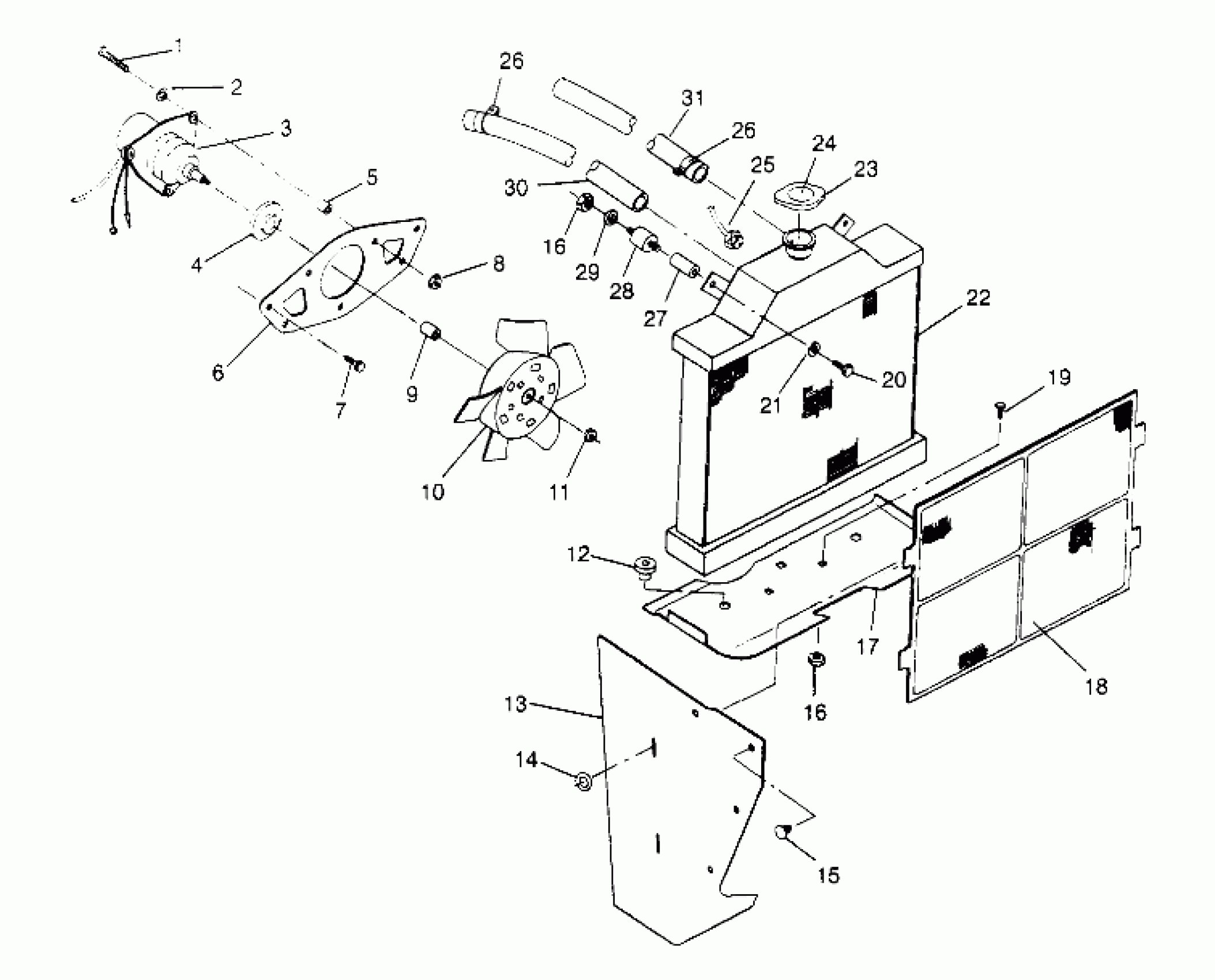

Polaris 400L 2X4 - W947540 COOLING SYSTEM 2x4 400L W947540 (4926752675A009) Diagram

#

Description
Price

1

SCREW(10)

7511874

Unavailable

2

WASHER, FLAT(10)

7558201

$5.79

3

Asm., Fan Motor (See Pg. A42, Ref. 4)

-------

Unavailable

4

Washer, Cup (See Pg. 38, Ref. 3)

-------

Unavailable

5

SPACER, FAN BRKT.

5333073

$3.83

6

BRKT,COOLING FAN Substituted by 5224741-067

5222559-067

Unavailable

7

SCREW(10)

7512252

Unavailable

8

NUT(10)

7541915

Unavailable

9

Spacer (See Pg. 38, Ref. 2)

-------

Unavailable

10

BLADE, FAN Substituted by 5240822

5431262

$57.14

11

Nut, Flange (See Pg. 38, Ref. 1)

-------

Unavailable

12

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

13

SHIELD,LH RADIATOR

5431188

Unavailable

13

SHIELD,RH RADIATOR

5431189

Unavailable

14

O RING

5410607

$5.99

15

CLIP,PLASTIC DART(10)

7670078

$3.19

16

NUT-LOCK(10)

7542122

$1.49

16

NUT-LOCK(10)

7542122

$1.49

17

GUARD,LOW.RADIATOR

5222547-067

Unavailable

18

COVER,RADIATOR,W/MESH

5431610

Unavailable

19

BOLT(10)

7512193

$2.39

20

SCREW(10)

7512113

$3.99

21

WASHER(10)

7552605

$5.27

22

RADIATOR

1240006

Unavailable

23

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

24

DECAL(CPSC),RAD.CAP

7073068

Unavailable

25

SWITCH,RADIATOR THERMO.

4110099

Unavailable

26

CLAMP,WORM DRIVE

7080547

Unavailable

26

CLAMP,WORM DRIVE

7080547

Unavailable

27

Spacer, Mount

5020572

$8.79

28

Mount, Rubber

3110032

$7.99

29

WASHER(10)

7558301

$1.49

30

HOSE, LOWER ENG.

5410606

Unavailable

31

HOSE,ENG,UPPER

5410570

$44.51
