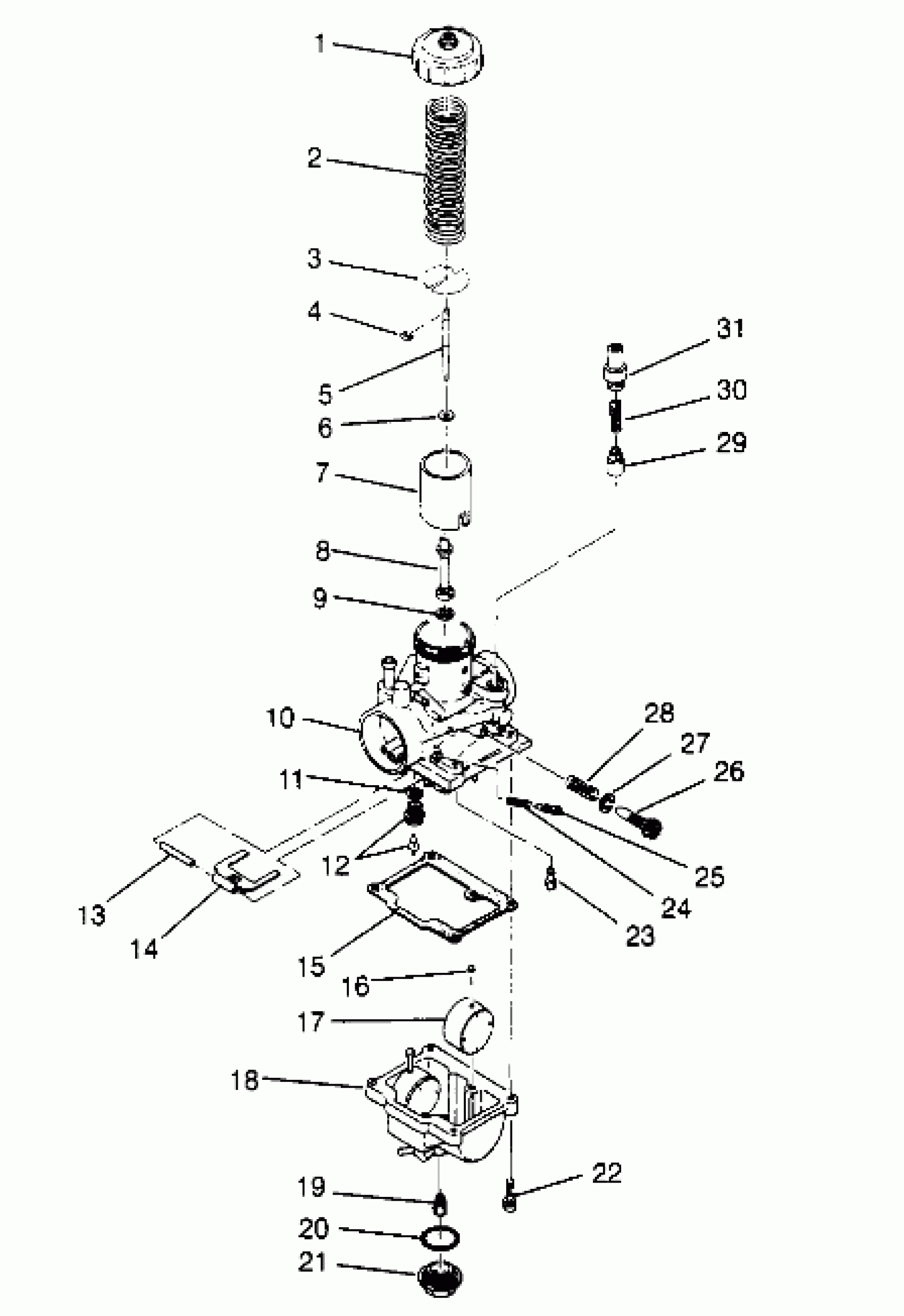

Polaris 400L 2X4 - W947540 CARBURETOR 2x4 400L W947540 (4926752675C012) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

Spring, Throttle

3130496

$28.32

3

PLATE (Throttle)

3130027

$9.70

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

JET NEEDLE,6-DH29 (6DH29-3)

3130462

Unavailable

6

Washer

3130355

$7.19

7

VALVE,THROTTLE,(1.5) (1.5)

3130494

Unavailable

8

NEEDLE JET ASM.

3130429

Unavailable

9

RING, MAIN JET

3130393

Unavailable

10

CARBURETOR Substituted by 3130710 (Incl. 1-31)

3130493

Unavailable

11

WASHER(10)

3130047

$4.84

12

NEEDLE VALVE ASM.(2.5) (2.5)

3130495

$65.63

13

PIN, FLOAT Substituted by 3130361

3130235

$8.89

14

ARM,FLOAT

3130018

$24.27

15

PACKING,FLOAT CHAMBER

3130020

$16.17

16

CAP,(10)

3130237

$4.03

17

FLOAT ASM.

3130430

$43.56

18

BOWL, FLOAT (350)

3130443

Unavailable

19

JET,MAIN,HX.HD#200(10) (#200)

3130123

$7.27

20

O RING

3130239

Unavailable

21

Screw, Guide

3130432

$27.99

22

SCREW & WASHER(10)

3130025

$3.19

23

JET,PILOT,#30(10) (#30)

3130065

$8.89

24

SPRING,AIR ADJUST

3130012

$8.89

25

SCREW,AIR

3130011

$19.99

26

SCREW,THROTTLE STOP

3130009

$19.99

27

Washer

3130447

Unavailable

28

SPRING,THROT.ADJ.

3130436

Unavailable

29

PLUNGER ASM, STARTER

3130328

$32.37

30

SPRING,PLUNGER

3130006

$8.89

31

HOLDER,GUIDE

3130199

$28.32
