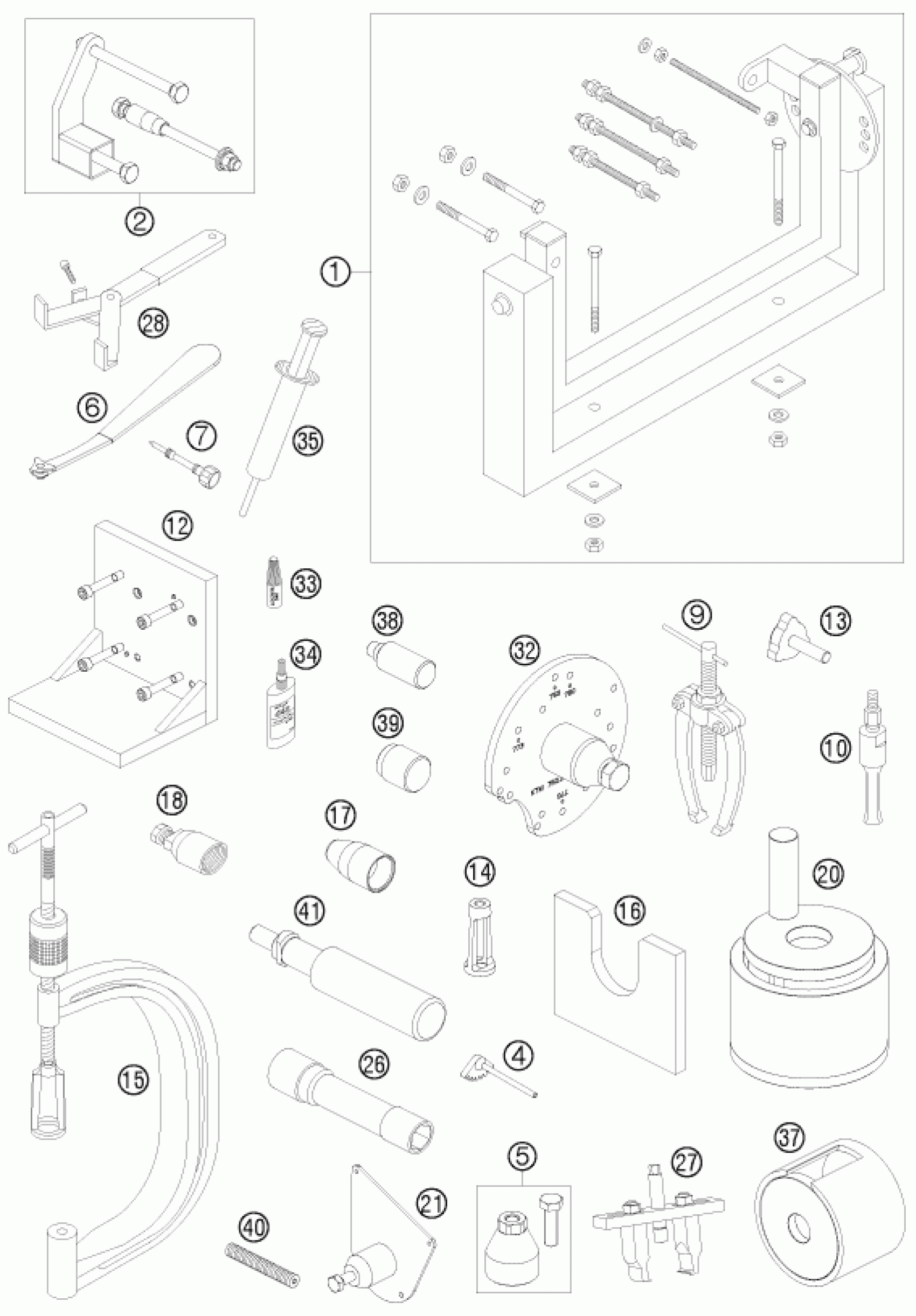

KTM 400 XC-W 2009 Special tools (engine) Diagram

#

Description
Price

15

VALVE SPRING LEVER

59029019000

$415.46

16

SEPARATOR PLATE CRANKSHAFT

78029009000

$172.12

1

ASSY SUPPORT (WITHOUT HOLDER)

56012001000

$969.33

2

SUPPORT CPL.

78029002000

$212.57

4

GEAR SEGMENT CPL. 04

80029004000

$143.06

6

WRENCH F.MIXTURE CONTROL SCREW

77329034000

$67.83

7

MIXT. CONTROL SCREW FACTORY

59031017200

Unavailable

9

BUSHING EXTRACTOR

15112017000

$179.32

10

INTERN.BEAR.PULLER 18-23 MM

15112018100

$278.54

10

INTERN.BEAR.PULLER 28 MM

60029018000

$187.31

12

ON TENSIONER PL. CYLINDER HEAD

75029050000

$245.56

13

PRESS OUT PUNCH CPL.

75029051000

$41.35

14

VALVE SPRING TENSION APPLICAT.

78029060000

$114.53

17

MOUNTING SLEEVE SSR CS

78029005000

$81.80

18

FLYWHEEL EXTRACTOR

58012009000

$47.90

20

PRESS. TOOL F. CRANKS. CPL.

75029047000

$677.00

21

PRESS OUT PLATE CS CPL.

78029049100

$349.10

26

SPARK PLUG WRENCH

75029172000

$71.33

27

PULLER

78029033100

$182.20

28

CLUTCH HOLDER

51129003000

$173.17

32

CASING DISMOUNTING TOOL 07

75029048000

$237.97

33

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

34

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

35

LOCTITE 5910 50ML

58429059200

Unavailable

37

PRESS. TOOL F. CRANKSHAFT

78029008000

$614.82

38

PRESS PUNCH CAMSHAFT BEAR. SM.

75029044020

$37.69

39

PRESS PUNCH CAMSH. BEAR. LARGE

75029044010

$37.82

40

ENGINE BLOCKING SCREW

0113080802

$14.13

41

PLUG IN FUSE PISTON PIN

77329030100

$52.09

5

EXTRACTOR PRIM. CPL.

75029021000

$53.01
