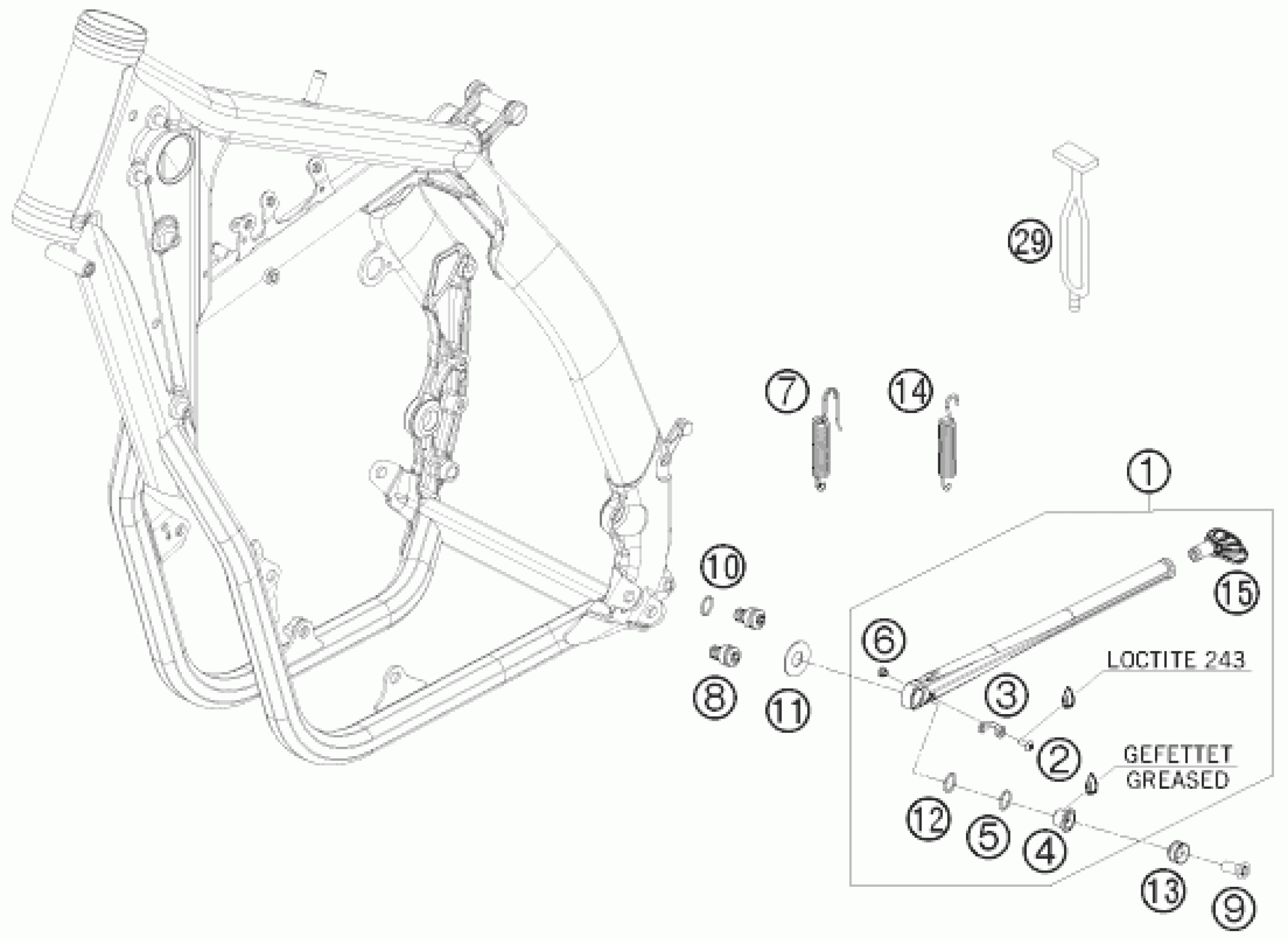

KTM 400 XC-W 2009 SIDE / CENTER STAND Diagram

#

Description
Price

15

STAND BASE

78003023055

$7.10

1

SIDE STAND CPL. 08

78003023044

$123.41

2

Oval head screw M5x14 TX25

58605083014

$3.08

3

SPRING BRACKET F. SIDE ST. 08

78003023090

$5.60

4

SIDE STAND BUSHING EXC USA 08

78003023080

$22.99

5

o-ring 18.00x2.00 NBR70

0770180020

$2.05

6

SPACER BUSH. SPRING BRACKET

78003023070

$1.49

7

SIDE STAND SPRING EXC 08

78003024000

$17.76

8

SIDE STAND STOP SCREW M10X12

78003023182

$4.11

9

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

9

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

10

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

11

WASHER F. SIDE STAND 12,2X29,5

78003023083

$3.08

12

O-RING 12,5X1,5 NBR

0770125015

$2.05

13

Side stand bushing

78003023081

$12.33

14

SIDE STAND SPRING 08

78003024100

$9.53

29

RUBBER L=145MM

50303018000

$6.44
