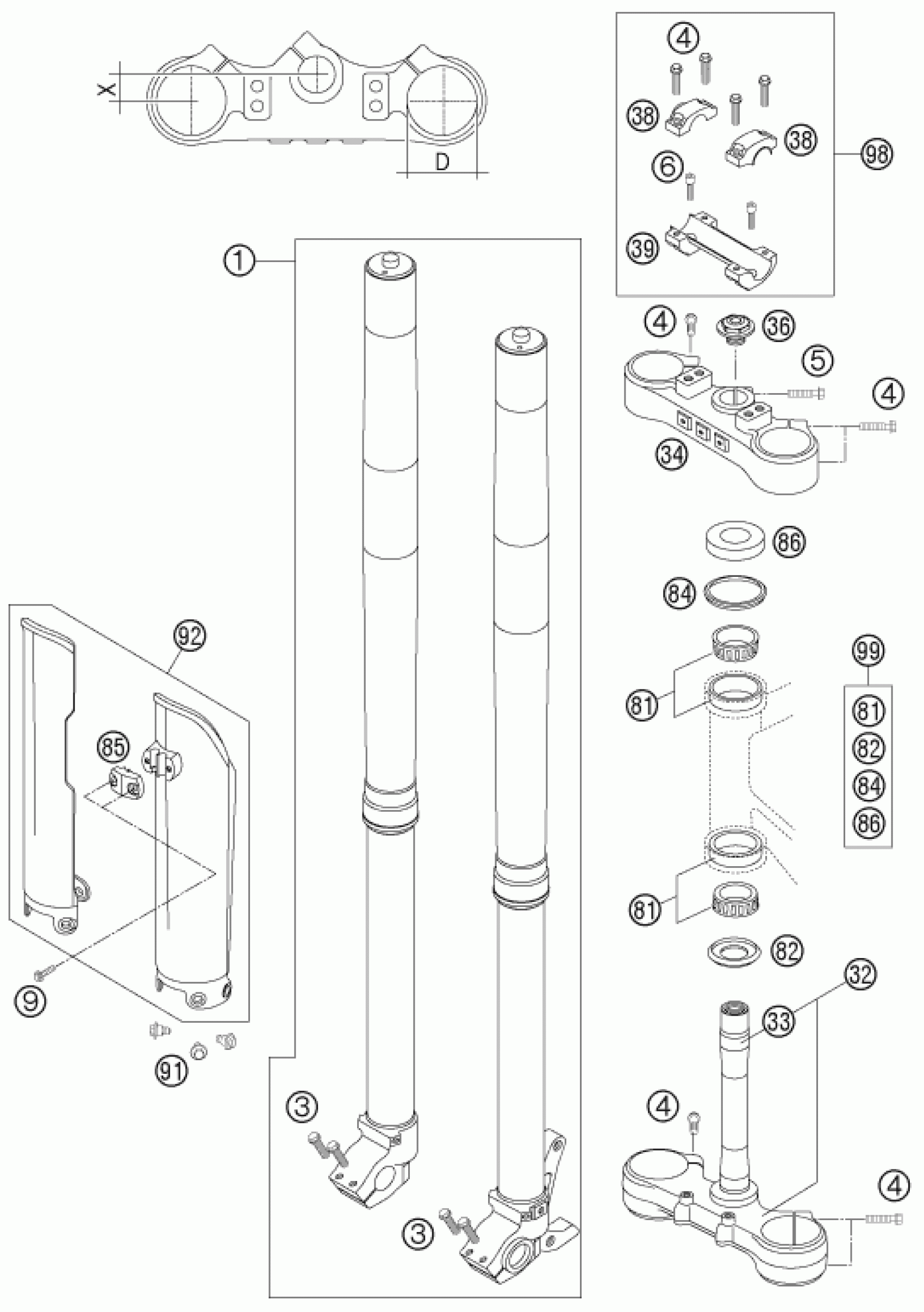

KTM 400 XC-W 2007 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK KPL. WP D48 400-525EXC 07

14187C06

$1,582.76

3

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

4

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

5

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

6

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

9

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

32

BOT.TRIP.CL.CPL X=20MM/D=60MM

59001132120

$260.30

33

FORK TUBE L=244 '91

50101033100

$85.17

34

TOP TRIPLE CLMP X=20MM/D=54MM

59001034120

$182.13

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

38

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

39

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP F.SPEED.CABLE ORANGE 06

5900108510004

$1.49

86

STEERING HEAD COVER

54201086000

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROT. L/S +R/S ORG 02

5900109400004

$33.99

98

HANDLEBAR SUPPORT KIT

00050000920

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
