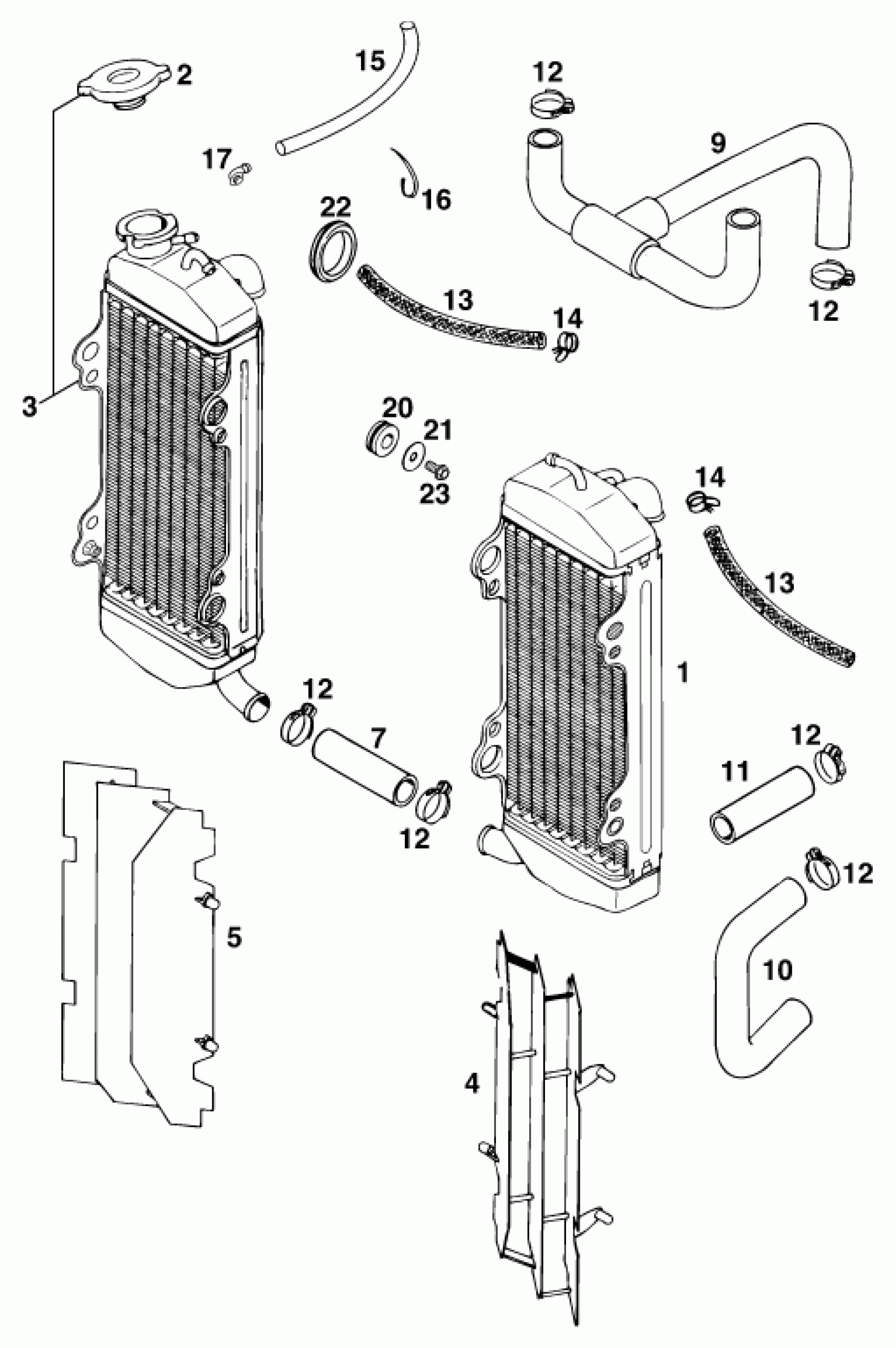

KTM 400 SXC WP <1997> COOLING SYSTEM Diagram

RADIATOR L/S NATURE (45288)'96

58335008100

$247.66

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

THROTTLE VALVE

58335007100

Unavailable

RADIATOR PROTECTION LEFT '95

54635034200

$8.50

RADIATOR PROTECT.RIGHT '95

54635134200

$6.82

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

PREFORMED HOSE LC4'94

58335026000

$60.30

PREFORMED HOSE 18X3,5-90 DG

50235025700

$16.01

RADIATOR HOSE 20X26

58335024001

Unavailable

HOSE CLAMP GEMI 18-29

10001020000

$2.05

HOSE ID 7,5 PER METER

54435024001

Unavailable

HOSE CLAMP YDNAC 10119 11MM

50231005000

$2.05

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

Cable tie 200/4.6mm black

44011076200

Unavailable

ANGLE PIECE '97

50303089000

$5.23

RUBBER SLEEVE D=12MM

41001052000

$4.11

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

SLEEVE FOR STEERING HEAD

54635022000

$1.54

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
