Description

Price

1

HEADLIGHT MASK EXC/EGS'99

5030800100004

$29.35

2

MASK RUBBER UFO WP '95

50211086000

$8.03

3

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

4

SCREW FEND.BRACE M8X9 WS=17

50308009050

$5.23

5

NUT FENDER BRACE M8 WS=17

50308009051

$5.23

6

WASHER 6MM

40006006000

$1.49

7

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

9

FENDER BRACE BLACK '99

50308009100

$9.46

10

FENDER FRONT ORANGE '99

5030801010004

$29.63

18

SPEEDOMETER CABLE GUIDE '96

54608019200

$3.48

20

SPACER BUSHING 7X10X7,5

50208020000

$4.11

52

DUMMY RIVET 3,0X 8 STEEL

0011320800

$1.49

53

* FENDER REAR SILVER '99

5830801320089

Unavailable

54

NUMBER PLATE CARRIER EXC '93

58308113051

$23.26

55

THRUST BEARING QUICK RELEASE

58307042051

$4.52

56

WASHER DIN0134- 3,2

0134030003

$1.49

62

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

64

SELF LOCKING NUT M6

56509064000

Unavailable

65

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

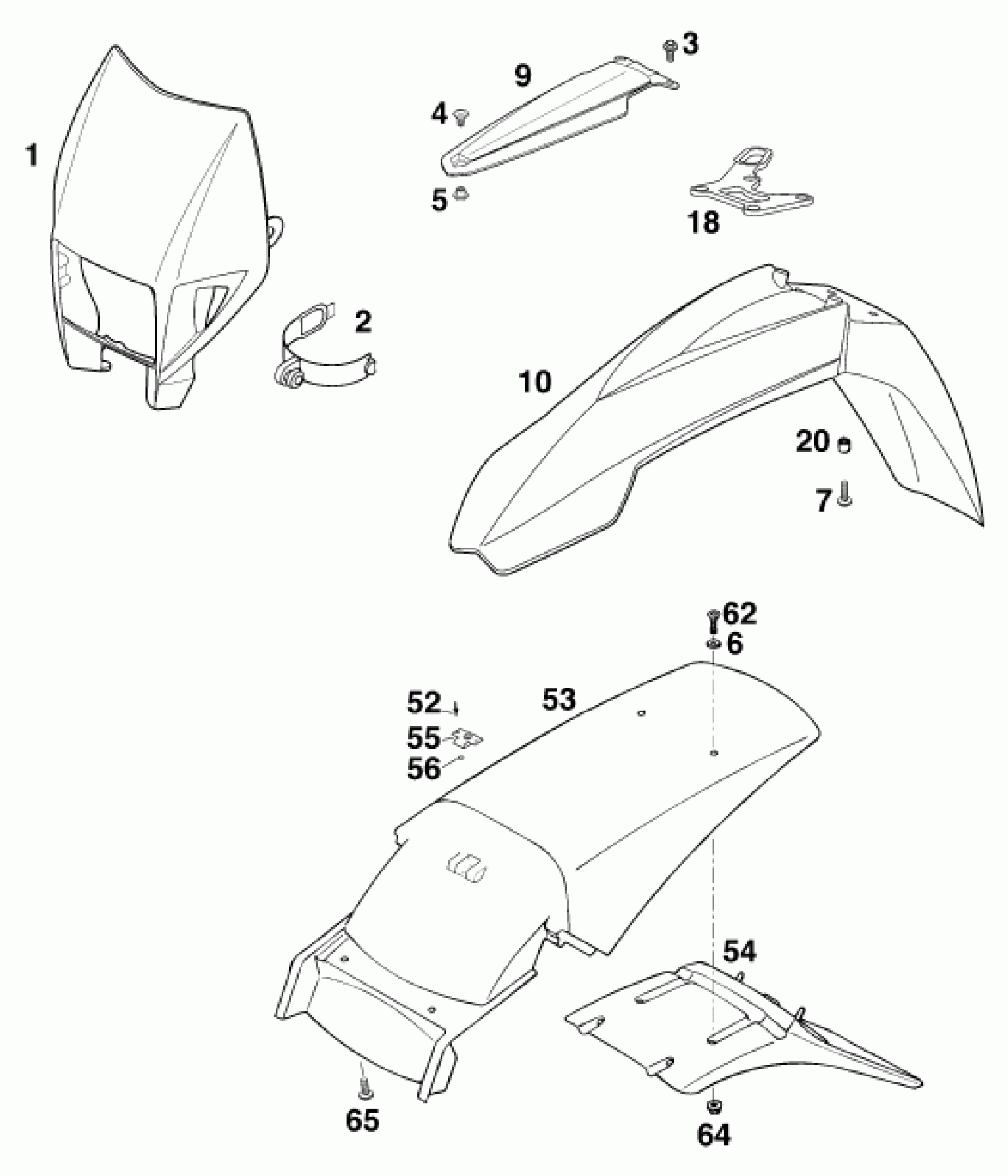

KTM 400 SXC 2000 MASK, FENDERS Diagram

HEADLIGHT MASK EXC/EGS'99

MASK RUBBER UFO WP '95

HH COLLAR SCREW M 6X15 WS=8

SCREW FEND.BRACE M8X9 WS=17

NUT FENDER BRACE M8 WS=17

WASHER 6MM

HH COLLAR SCREW M 6X20 WS=8

FENDER BRACE BLACK '99

FENDER FRONT ORANGE '99

SPEEDOMETER CABLE GUIDE '96

SPACER BUSHING 7X10X7,5

DUMMY RIVET 3,0X 8 STEEL

* FENDER REAR SILVER '99

NUMBER PLATE CARRIER EXC '93

THRUST BEARING QUICK RELEASE

WASHER DIN0134- 3,2

FLAT H.SCREW DIN7991-M6X20

SELF LOCKING NUT M6

HH COLLAR SCREW M 6X15 WS=8
