Partiron

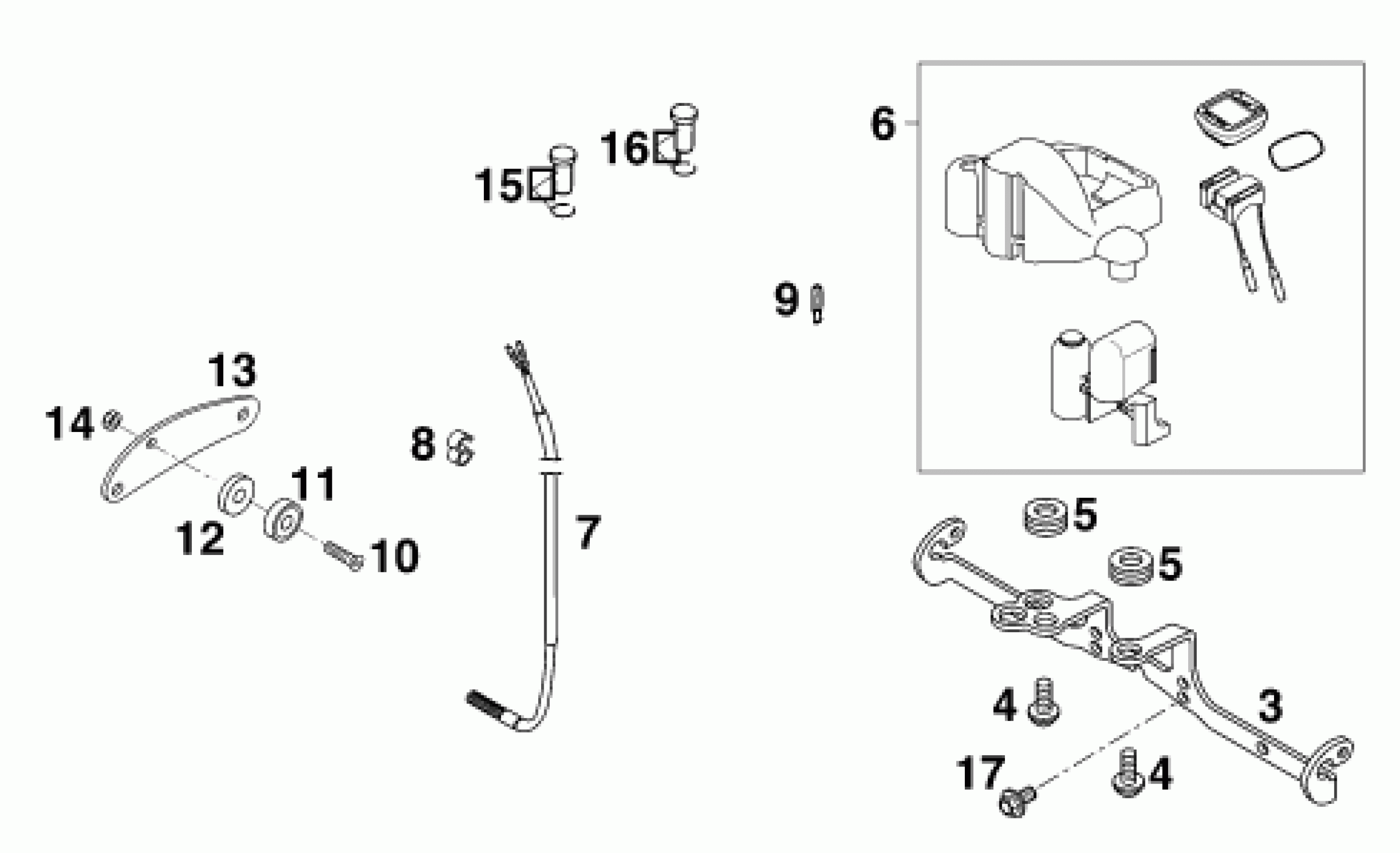

KTM 400 SXC 2000 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

3

SPEEDOMET.BRACKET EGS '99

50314061100

$8.62

4

SCREW FOR PLASTIC 50X12

0016050121

$2.05

5

rubber grommet D=8mm open

31008060000

$2.05

6

SPEEDO.SIGMASPORT 500 CPL.'99

50314069044

$84.15

7

CABLE FOR SIGMA 500 '98

58314069151

$94.72

8

CLAMP D=6/8MM, BLACK

55011022100

$2.05

9

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

10

FLAT HEAD SCREW DIN0963-M 4X20

0963040203

$1.49

11

MAGNET LOOSE '97

58314069050

$27.46

12

STEEL WASHER 6,4X17X3

50232050001

$5.23

13

BRACKET FOR TRIPPMASTER SENSOR

58312099073

Unavailable

14

SELF LOCKING NUT DIN0985-M 4

0985040003

$1.49

15

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

$6.63

16

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

17

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08
