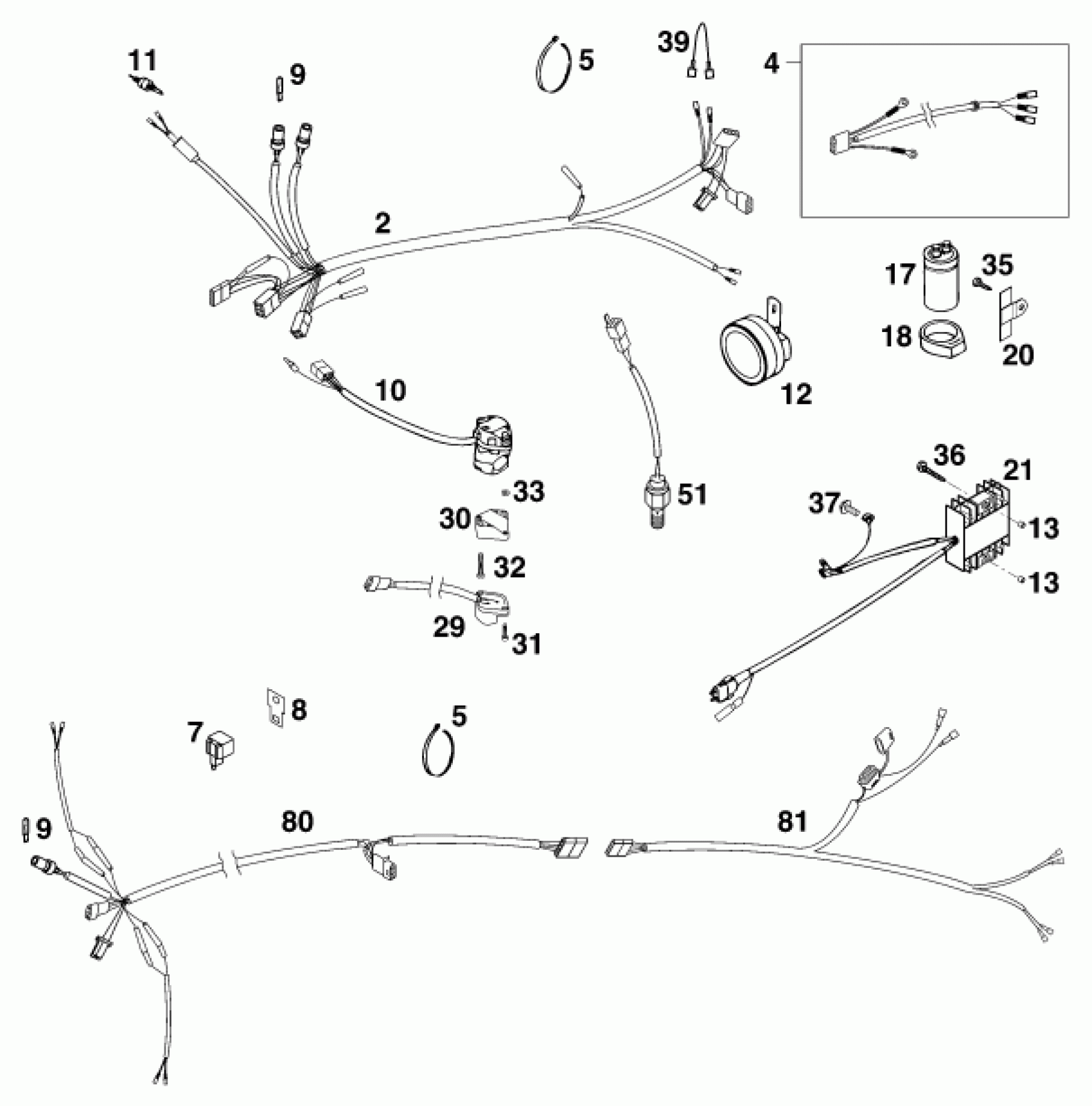

KTM 400 SX-C '99 <1999 WIRING HARNESS Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

2

MAIN WIRING HARNESS SXC AUS'99

58311175800

Unavailable

4

TAIL LIGHT WIRING CEV '95

58311176000

Unavailable

5

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

7

FLASHER UNIT 97

44611207200

$49.83

8

BRACKET FOR FLASHER RELAY

58211031100

$5.70

9

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

10

H.LIGHT SWITCH CEV EGS AUS.'98

50311070100

$74.14

11

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

12

54511060000

Unavailable

13

BUSHING 6,5X15X10 ALU

50206017050

$2.61

17

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

18

CAPACITOR BRACKET

54511048000

$4.33

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

21

VOLTAGE REGULATOR SHINDENGEN

58311034100

$119.76

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

31

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

32

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

33

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

35

SHEET MET.SCR.DIN7981- 5,5x19

0981550193

$1.49

36

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

$1.49

37

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

39

DIODE BRIDGE

50211475251

Unavailable

51

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

80

FLAS.WIRINGHARN. FRONT 125-380

50311080100

$34.82

81

FLAS.WIRINGHARN. REAR 125-380

50311081000

Unavailable
