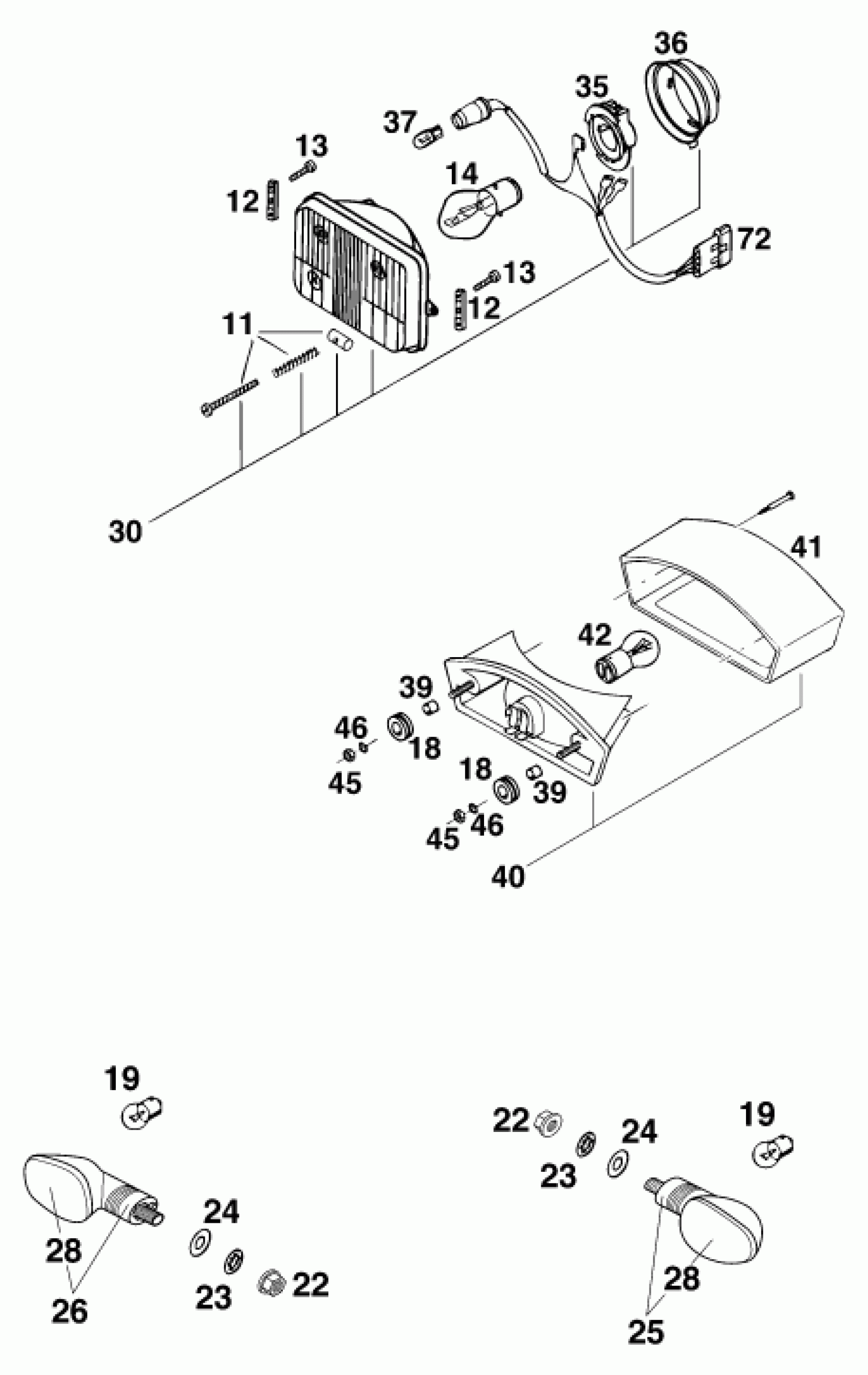

KTM 400 SX-C '99 <1999> LIGHTING SYSTEM Diagram

ADJUSTING SCREW CPL. M4X40

50211631000

$4.35

HEADLIGHT BRACKET '93

50211410050

$5.65

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

BILUX-BULB 12V 35/35W BA20D

44111038000

$16.17

rubber grommet D=8mm open

31008060000

$2.05

BULB 12V 10W (BA15S)

44111015100

$3.08

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

washer DIN 125 A 10.5

0125100003

$2.05

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

$28.70

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

$27.95

FLASHER LENS L/S & R/S '98

58414028000

$6.72

HEADLIGHT CPL. CEV 322 '93

50211410000

$52.98

BULB SOCKET

50211436000

Unavailable

* COVER CAP

50211437000

Unavailable

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

REAR LIGHT CPL. CEV 358 '93

58311040000

$45.73

LENS '93

58311041000

$27.95

BULB 12V 21/5W (BAY15D)

57011045000

Unavailable

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05

CABLE FOR HEADLIGHT '93

50211410010

Unavailable
