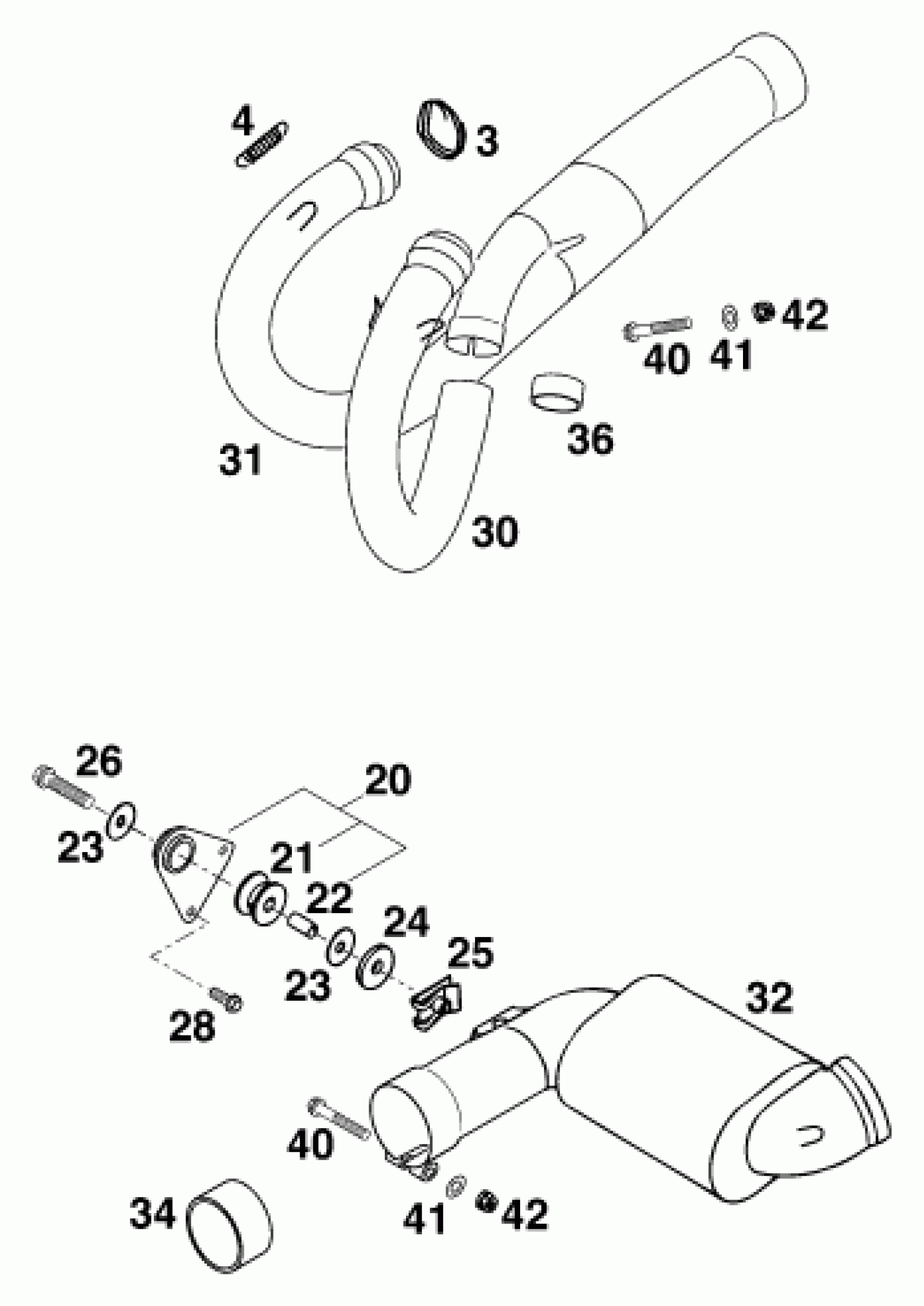

KTM 400 SX-C <1998> EXHAUST SYSTEM Diagram

#

Description
Price

3

CERAMIC LINE 1 METER

58305053001

$6.72

4

RETURN SPRING L=38 MM

54309036000

$5.23

20

% BRACKET-PRE SILENCER CPL. 95

58305065044

$36.38

21

damp. component silicone grey

54305068100

$8.31

22

Spacer bushing 8.4X12X16

56505069000

$4.11

23

WASHER DIN9021-A 8,4

0021080003

$1.49

24

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

25

RANGE CHANGE METAL NUT M8

54603048000

$4.11

26

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

28

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

30

EXHAUST PIPE L/S ''KTM577'' '

57705007100

$90.58

31

EXHAUST PIPE R/S ''KTM577'' '

57705008100

$115.15

32

PRESILENCER ''KTM V2'' '

58405050200

Unavailable

34

Graphite ring 45X50X25

58405005001

$16.92

36

GRAPHIT RING 28X32X20

57705005000

$9.58

40

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

41

WASHER DIN0125-A 6,4

0125060003

$1.49

42

SELF LOCKING NUT M 6 COPPER

51010086000

$1.57
