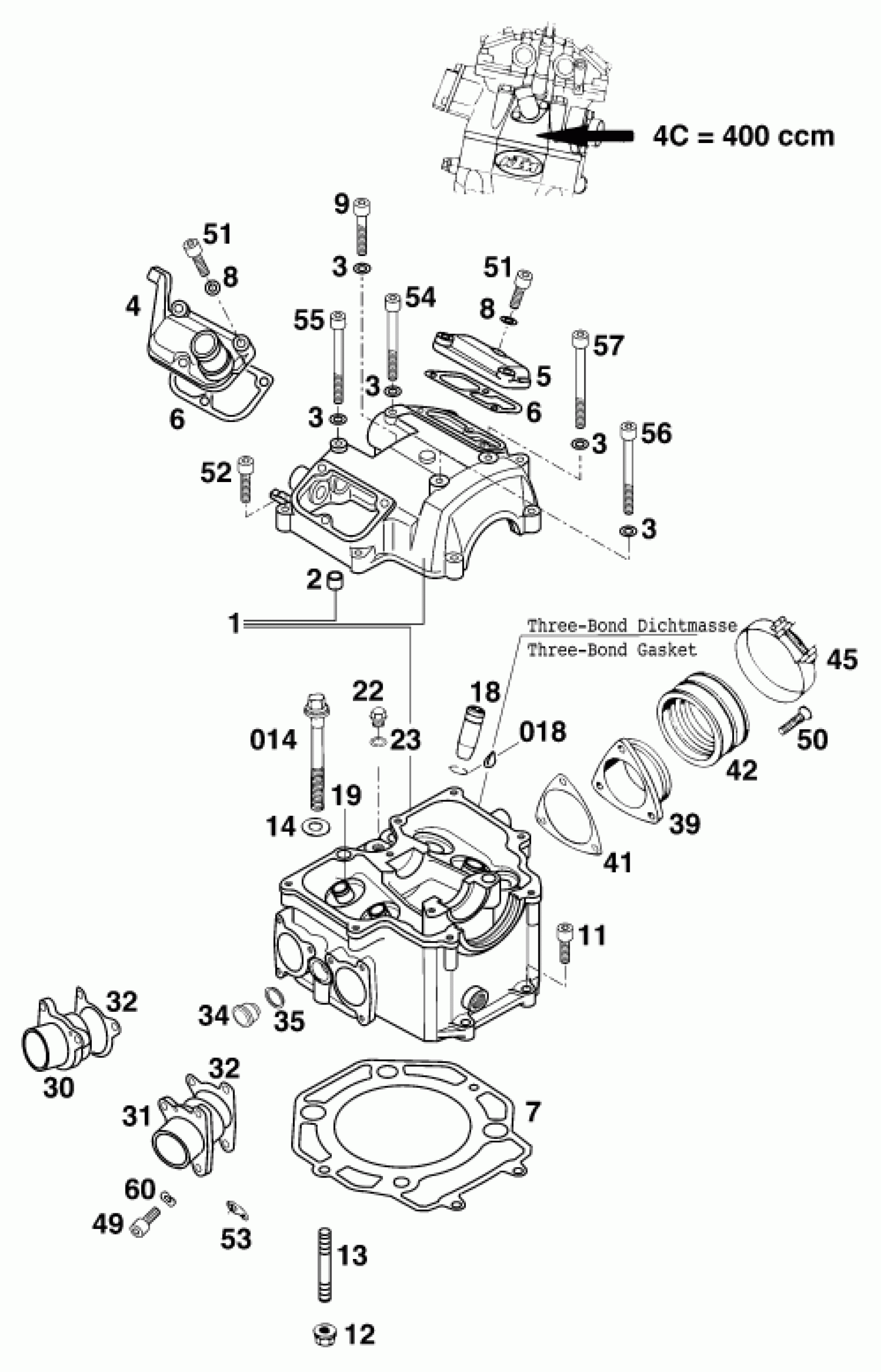

KTM 400 SX-C <1998> CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL. 400 LC4 '97

57636020300

Unavailable

2

DOWEL 9,8 X 7 X 10

49030090000

$2.05

3

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05

4

VALVE COVER FRONT

58036152500

Unavailable

5

VALVE COVER REAR

58036052000

$36.15

6

VALVE COVER GASKET

58036053000

$4.11

7

CYLINDER HEAD GASKET 90,3 MM

57530036000

$58.34

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

AH SCREW DIN0912-M 6X35

0912060353

$2.05

11

AH SCREW DIN0912-M 6X25

0912060253

$2.05

12

COLLAR NUT M8

49030028000

$3.08

13

STUD DIN0835-M 8X35 10.9

0835080355

$3.08

14

CU-SEAL RING 10 X 20 X 1

58036098000

$2.05

14

COLLAR SCREW M10X80 WS=13 10.9

58036099100

$10.46

18

CIRCLIP DIN7993-RW12

0993012000

$3.08

18

VALVE GUIDE INTAKE

58036026600

Unavailable

19

VALVE GUIDE EXHAUST

58036126600

Unavailable

22

PLUG DIN0910-M 10X1

0910100003

$4.11

23

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

30

EXHAUST FLANGE R/S

58036040000

$30.15

31

EXHAUST FLANGE L/S

58036140000

$29.45

32

EXHAUST FLANGE GASKET

58036041000

$4.11

34

PLUG SAS BORE

58336024000

$4.11

35

CU-SEAL RING 12 X 16 X 2

58436054000

$2.05

39

INTAKE FLANGE D=40MM

58136042040

Unavailable

41

INTAKE FLANGE GASKET

58136043000

$3.08

42

INTAKE BOOT D=38MM 400-660 LC4

58136044100

$33.74

45

CLAMP SM12/A60

56530061000

$7.40

49

AH SCREW DIN0912-M 6X16

0912060163

$1.49

50

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

51

AH SCREW DIN0912-M 6X20

0912060203

$2.05

52

AH SCREW DIN0912-M 6X25

0912060253

$2.05

53

RETAINING PLATE

51005074000

$3.08

54

AH SCREW DIN0912-M 6X50 12.9

0912060501

$1.73

55

AH SCREW DIN0912-M 6X55 12.9

0912060551

$2.05

56

SHCS DIN 912 M6x65

0912060653

$2.05

57

AH SCREW DIN0912-M 6X70

0912060703

$1.49

60

SPRING WASHER DIN0137-B 6

0137060000

Unavailable
