EXHAUST SYSTEM

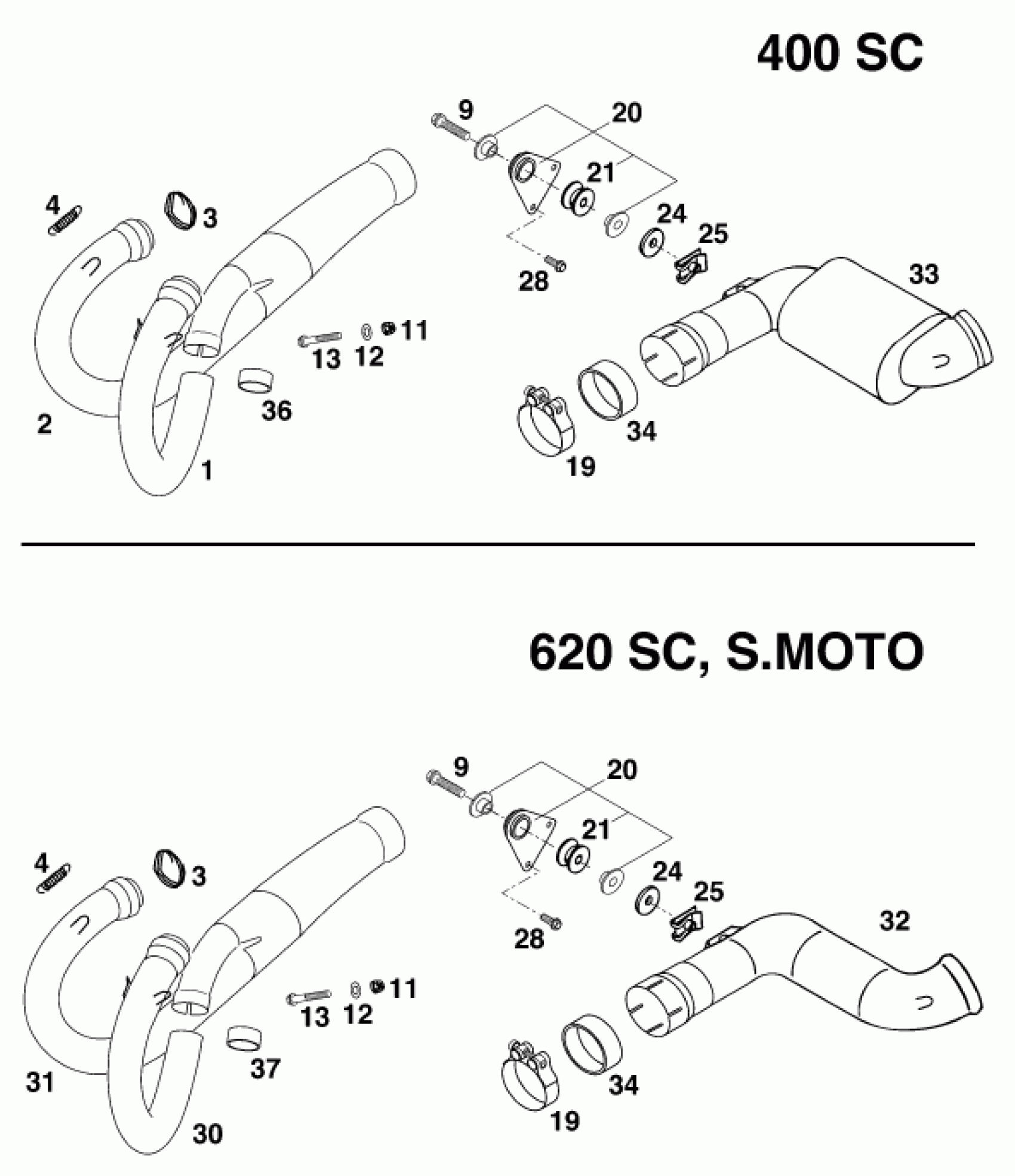

KTM 400 SC 2000 EXHAUST SYSTEM Diagram
#
Description
Price
1
EXHAUST PIPE L/S ''KTM577'' '
57705007100
$90.58
2
EXHAUST PIPE R/S ''KTM577'' '
57705008100
$115.15
3
CERAMIC LINE 1 METER
58305053001
$6.72
4
RETURN SPRING L=38 MM
54309036000
$5.23
9
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
11
SELF LOCKING NUT M 6 COPPER
51010086000
$1.57
12
WASHER DIN0125-A 6,4
0125060003
$1.49
13
HH COLLAR SCREW M 6X40 WS=8
0015060403
$3.08
19
PRE SILENCER CLAMP D=53MM '99
58705058000
$26.34
20
BRACKET-PRE-SIL.CPL SILVER '99
5830506504490
Unavailable
21
damp. component silicone grey
54305068100
$8.31
24
INSOLATE WASHER 8,5X28X3
51005067000
$2.05
25
RANGE CHANGE METAL NUT M8
54603048000
$4.11
28
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
30
EXH PIPE L/S ''KTM584'' '98
58405007200
Unavailable
31
EXHAUST PIPE R/S "KTM584" '98
58405008200
Unavailable
32
* TUBE-PRE SILENCER 2000
58305175400
Unavailable
33
PRESILENCER ''KTM V2'' 20
58405050300
$287.75
34
Graphite ring 45X50X25
58405005001
$16.92
36
GRAPHIT RING 28X32X20
57705005000
$9.58
37
GRAPHIT RING 32X37X20
58405005000
$16.92
