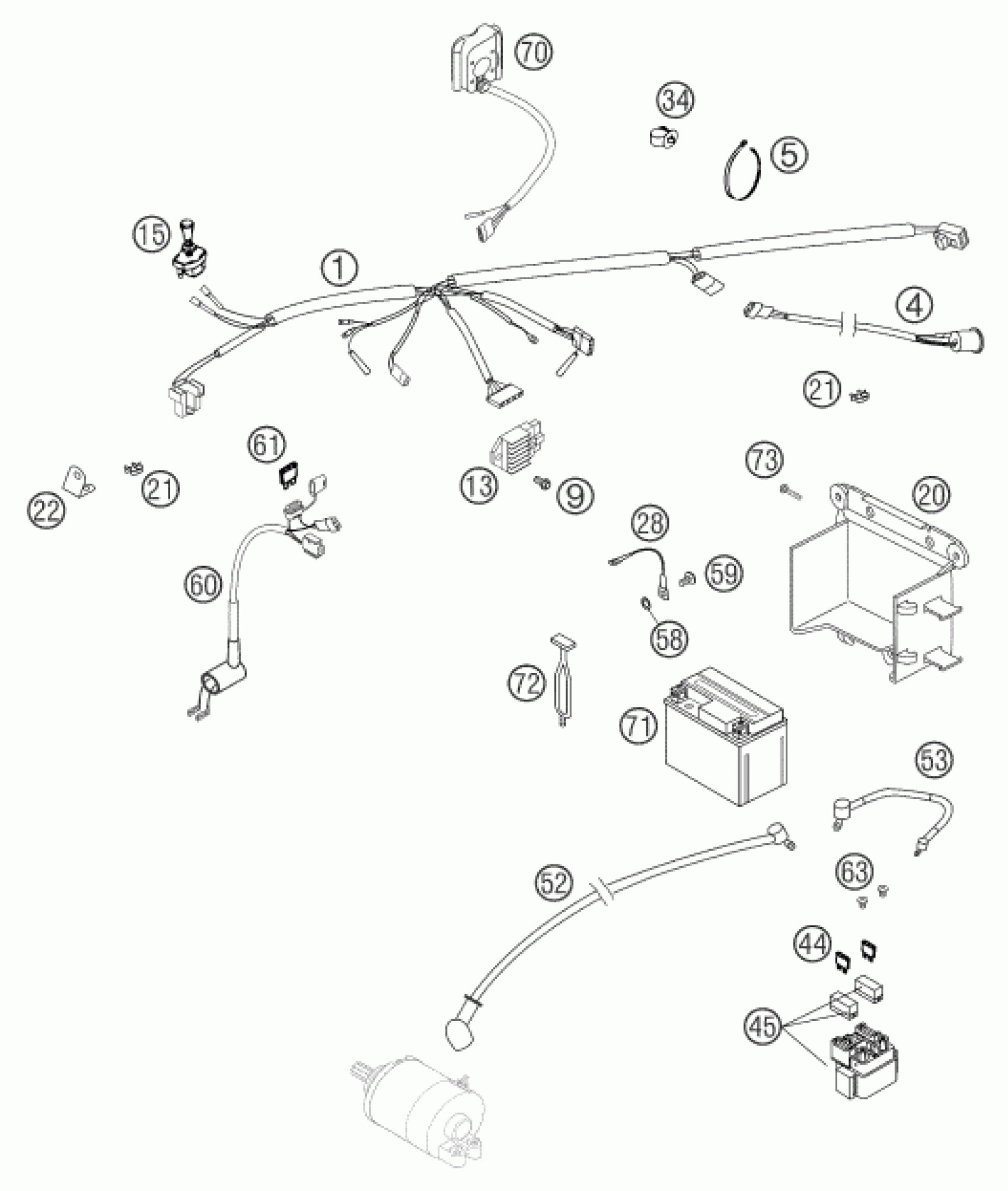

KTM 400 MXC RACING 2002 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS FRONT USA 2001

59011075300

$50.01

4

WIRING HARNESS REAR 125-380'98

50311076000

$27.39

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

9

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

13

VOLTAGE REGULA. 12V 125-200'98

50311034000

$102.28

15

PULL SWITCH LOOSE

55011599000

$23.09

20

BATTERY CARRIER PLASTIC BLACK

59011055000

$10.84

21

WIRING HOLDER 12MM

57013072000

Unavailable

21

WIRING HOLDER 16MM

57013072100

Unavailable

22

RETAINING PLATE FOR BATTERY'97

54611090000

$4.06

28

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

34

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

44

Plug-in fuse, big 10A

58011109110

$2.05

45

Starter reley 12V 99

58211058000

$72.64

52

STARTERCABLE 700 MM '97

58411059100

$23.65

53

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

58

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

59

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

60

FAN WIRING HARNESS 2001

59011079000

Unavailable

61

FUSE 5 A

58011109005

Unavailable

63

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

70

START-STOP TIP SWITCH CPL

59011074000

$62.54

71

BATTERY 12V 4AH YTX5L-BS

58511053000

$112.10

72

RUBBER L=145MM

50303018000

$6.44

73

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05
