SWING ARM

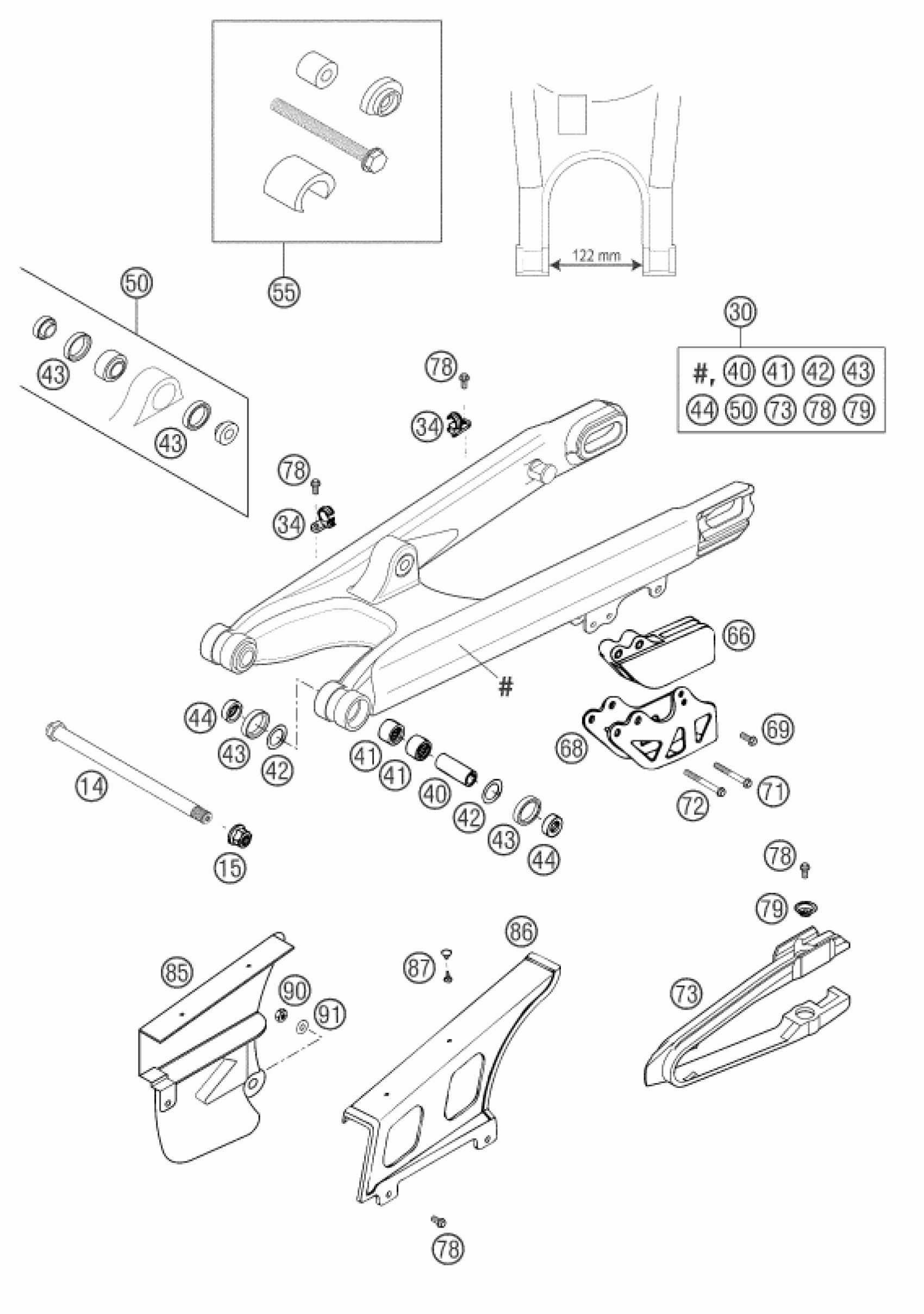

KTM 400 MXC RACING 2002 SWING ARM Diagram
#
Description
Price
14
SWINGARM BOLT 14X252 WS=22
50303014000
$39.35
15
Self locking nut M14x1.5 WS19
54603015000
$5.51
30
SWINGARM CPL. 540 SXS 2000
59004030244
$460.48
34
RETAIN.CLAMP FOR BRAKE HOSE'96
54611076100
$2.05
40
BUSHING SLEEVE 15X20X38,75
50203081700
$17.20
41
NEEDLE BUSH HK2012V
59004031000
$15.51
42
STOP DISK 22,2X31,7X0,8 2000
59004033000
Unavailable
43
radial shaft seal 25x32x7
0760253270
$6.63
44
BUCKET F.SHAFTSEALRING 15X25X9
54603090000
$12.43
50
PIVOT BEARING+BUSH. PDS '99
50304090044
$64.69
55
TOOL BEARING MOUNTING PDS
50329000044
$752.92
66
CHAIN GUIDE REAR '94
54607066100
$28.60
68
RETAINING PLATE CPL.
54607070144
$31.41
69
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
71
HH COLLAR SCREW M 6X50 WS=8
0015060503
$3.08
72
HH COLLAR SCREW M 6X55 WS=8
0015060553
$1.49
73
CHAIN GUARD '97
50304066000
$25.52
78
SPECIAL SCREW M 5,0X10
0009050103
$2.05
79
BUCKET
72210079000
$3.00
85
CHAIN GUARD SMALL EXC 2000
50304060100
$9.62
87
HOLLOW RIVET TWO PARTS
20012062055
$3.08
90
Self lock. nut DIN985-M6-A2
0985060003
$2.05
91
Washer DIN9021-A 6.4
0021060003
$2.05
