SHOCK ABSORBER DISASSEMBLED

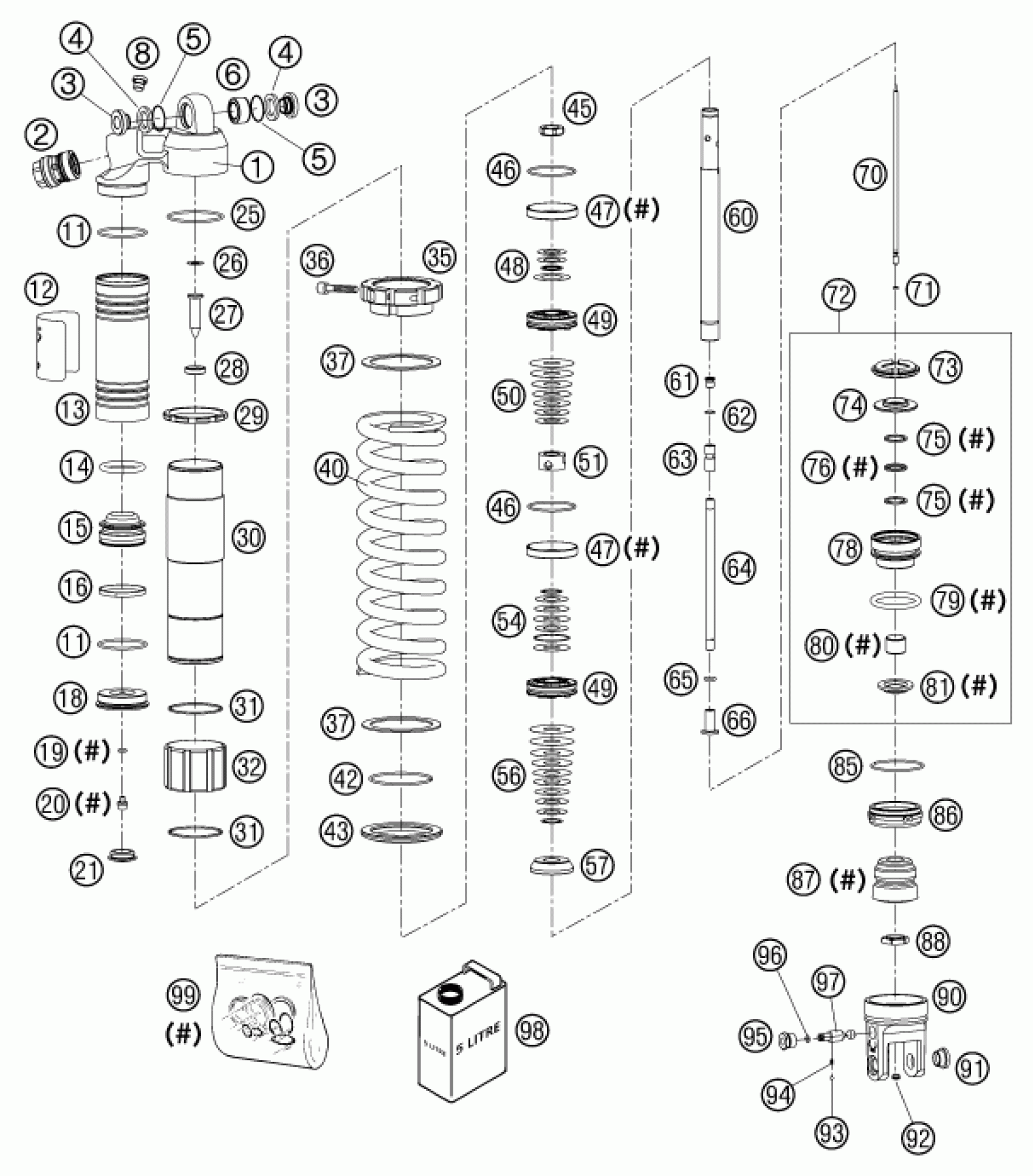

KTM 400 MXC RACING 2002 SHOCK ABSORBER DISASSEMBLED Diagram
#
1
SHOCK ABSORBER CASE TOP WP-PDS
50180268
$158.52
2
MCC-COMPR.DAMPING CONTROL CPL.
50180301S1
Unavailable
3
Distance bush 12x15/18/24,5x10
46180007
$17.76
4
Seal ring 19,5x26x3
46180003
$5.60
5
Round-wire snap ring 25x1
50180168
$1.49
6
Ball joint bearing 15x25x13
50180005
$29.35
8
HS cylinder-head screw R1/8 l8
50180095
$2.42
11
O-ring 45x2 NBR70 siliconized
46810340
$1.49
12
WP CAUTION (PDS KTM) 58X83
52000041
$16.73
13
RESERVOIR SCREW L140 GREY
50180096
$90.22
14
O-ring 35x5 Viton70
46811043
$4.64
15
Piston 46mm reservoir
50180108
$46.04
16
Pistonring 42,5x45,5x3,9
46810324
$32.53
18
RESERVOIR CAP D=46
46811209
Unavailable
19
O-ring 5,28x1,78 NBR70 black
46810893
$1.49
20
HS lock screw M5x6
36120151
$1.86
21
Rubber cap do not open 22x5,5
46811208
$3.08
25
O-ring 52x2 NBR70
50180097
$2.05
26
spring washer 8,2x16x0,6
50180177
$2.05
27
NEEDLE D=10, L=33
50180296
Unavailable
28
SCREW CAP M20x1, D=11
50180271
$23.81
29
LOCK WASHER
50180270
$32.78
30
TUBE PDS L=196
50180295
$111.63
31
spreader ring 50X1,5
50180133
$7.40
32
Spring guide 54,15x60x40
50180081
$5.61
35
SPRINGRETAINER PDS M6 '00
50180186
$133.79
36
AH SCREW DIN0912-M 6X35
0912060353
$2.05
37
Intermediate washer spring 61,
50180114
$3.08
40
SPRING PDS1-250 70-90N/MM
91210009
Unavailable
40
SHOCK SPRING L= 250 75-96 N/MM
91210010
Unavailable
40
SPRING PDS3-250 80-103N/MM
91210011
Unavailable
40
SPRING PDS4-250 85-111N/MM
91210012
Unavailable
40
SPRING PDS0-250 65-83N/MM
91210013
Unavailable
40
SPRING PDS5-260 66-86N/MM
91210014
Unavailable
40
SPRING PDS6-260 71,5-90,5N/MM
91210015
$125.26
40
SPRING PDS8-260 81-99,5N/MM
91210017
Unavailable
42
Round-wire snap ring 58,5x2
50180273
$2.05
43
SPRING RETAINER D=80
50180272
$34.49
45
Piston rod nut 16x1
50180141
$9.06
46
O-ring 44x,17x1,78 Viton70
50180099
$2.05
47
Piston ring 47,95x49,95x8
50180135
$17.76
48
SHIM 16X28X0,30
50180072
$3.08
48
Shim 21x36x0,25
50180209
$11.87
48
WASHER 16X21X1
50180210
$6.26
49
Piston 16,05x49,6x13,5 4,5/7
50180197
$45.62
50
SHIM 16X42X0,25
50180070
$3.08
50
SHIM 16X32X0,30
50180074
$3.08
50
SHIM 16X34X0,30
50180075
$3.08
50
SHIM 16X36X0,30
50180076
$3.08
50
SHIM 16X38X0,30
50180077
$3.08
50
SHIM 16X40X0,30
50180078
$3.08
51
SANDWICH BUSH D25XD16X14,5/D
50180269
$32.35
54
Shim 32,25x36x0,30
46811637
$2.05
54
Shim 16x21x0,30
50180035
$2.05
54
SHIM 16X32X0,15
50180047
$3.08
54
Shim 16x32x0,2
50180056
$3.08
54
Shim 16x34x0,2 y5
50180057
$3.08
54
SHIM 16X36X0,20
50180058
$3.08
54
SHIM 16X32X0,25
50180065
$3.08
56
Shim 16x21x0,30
50180035
$2.05
56
SHIM 16X30X0,20
50180055
$3.08
56
Shim 16x32x0,2
50180056
$3.08
56
Shim 16x34x0,2 y5
50180057
$3.08
56
SHIM 16X36X0,20
50180058
$3.08
56
SHIM 16X38X0,20
50180059
$3.08
56
Shim 16x40x0,2
50180060
$3.08
56
Shim 16x42x0,2
50180061
$3.08
56
SHIM 16X30X0,25
50180064
$3.08
56
SHIM 16X32X0,25
50180065
$3.08
56
SHIM 16X42X0,25
50180070
$3.08
57
REBOUND DISC D=34, H=8
50180196
$61.08
60
SPINDEL D=18, L=153, M16x1
50180294
$132.15
61
BUSH M8X1
50180200
$14.02
62
O-ring 7x1,5 Viton70 green
50180157
$1.49
63
NEEDLE SEAT M8X1
50180201
$18.99
64
TUBE M18X1 L=151,5
50180264
$10.31
65
O-ring 8x2 NBR70
48600049
$1.49
66
Bush 5/8,2/7x9,5/16,8x23
50180279
$4.11
70
NEEDLE L=175
50180261
$60.03
71
O-ring 2,2x1,6 Viton75 green
46811265
$1.49
72
ADAPTOR CPL. D=50, H=28,5
50180118S2
$100.17
73
Rubber pad rebound 27x48x8 NBR
50180107
$4.11
74
STEEL DISC 18,5X43,7X6
50180304
$19.47
75
Washer 18x22,5x1,5 plastic
50180102
$8.59
76
X-ring 18x2,62 Viton70
50180101
$15.70
78
ADAPTOR D=50, H=28,5
50180118
$54.75
79
O-ring 41x5 NBR70
50180103
$1.49
80
DU-BUSH 18X20X15
50180104
$9.33
81
Dirt scarper 18mm
50180082
$34.03
85
Round-wire snap ring 53x1,75
50180126
$1.49
86
Cap 50,1x17,5 h6
50180165
$43.98
87
Rubber pad 17,2x45,2x40 black
50180276
$8.41
88
HH locking nut M18x1 h5 WAF24
50180283
$11.86
90
FORK PART L=55,5, B=32,5
50180293
$184.60
91
Threaded bush M12 d20
50180105
$15.51
92
Rubber plug 8x3,5 NBR50
50180297
$2.48
93
Steel ball d3
40540603
$1.49
94
SPRING D=2,9, L=6,2
40540602
$3.08
95
HH screw M14x9
50180281
$28.98
96
O-ring 4x1,5 NBR70
50180222
$1.49
97
ADJUSTING SCREW 80 DEG., L=39
50180280
$20.99
98
SHOCK ABSORBER FLUID 5 LT.
4681020851
Unavailable
99
REP.KIT GASKET SEAL PDS 2002
R12005
$114.30
