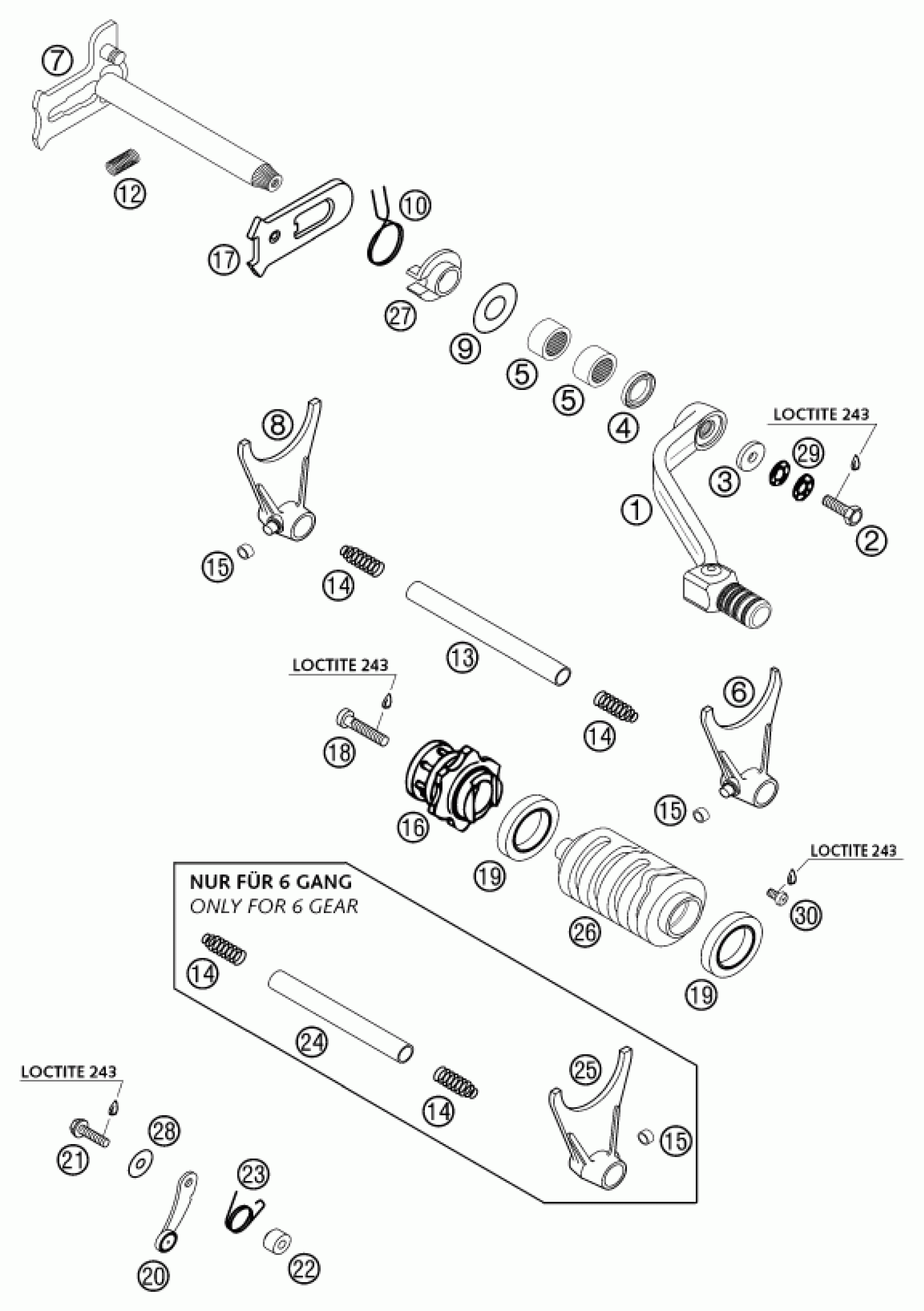

KTM 400 MXC RACING 2002 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT LEVER CPL.RACING 2000

59034031000

$87.69

2

HH SCREW DIN0933-M 6X20

0933060203

$1.49

3

STEEL WASHER 6,4X17X3

50232050001

$5.23

4

radial shaft seal 14x24x6 B

0760142460

$9.25

5

needle sleeve HK 1412 14x20x12

54632095000

$7.00

6

SHIFT FORK 2./4.GEAR 2000

59034002000

$40.48

7

SHIFT SHAFT CPL. RACING 20

59034005000

Unavailable

8

SHIFT FORK 1./3.GEAR 2000

59034003000

$71.33

9

STOP DISK 14X30X1

54634050000

$2.05

10

RETURN SPRING 2,2MM '95

54634014100

$6.63

12

TENSIONING SPRING 0,8MM

56534013100

$1.49

13

SHIFT RAIL 11,8X105MM

59034020000

$13.36

14

PRESSURE SPRING 0,9MM

58038023200

$4.11

15

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

16

SHIFT LOC'ING DRUM ALU CPL.00

59034015044

$64.04

17

SLIDING PLATE CPL.

54634008044

$10.46

18

AH SCREW DIN6912 M 6X30

0984060302

$1.49

19

BALL BEARING 61805 C3

0625618050

$43.94

20

LOCKING LEVER CPL '96

54634024144

$16.07

21

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

22

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

23

detent arm spring 2.3mm

59034023000

$2.05

24

SHIFT RAIL 11,8X89MM

59034019000

$12.80

25

SHIFT FORK 5./6.GEAR 2000

59034001000

$41.51

26

SHIFTROLLER 4-GEAR

59034012044

$55.63

26

SHIFTROLLER 6-GEAR

59034012000

$69.18

27

SPRING GUIDE

54634020000

$6.44

28

WASHER 5,3X17X1,5MM

71008012000

Unavailable

29

Pair of washers M6 NORDLOCK

50233041000

$4.11

30

FLAT HEAD SCREW DIN7985-M 5X 8

0985050083

$1.49
