HANDLEBAR, CONTROLS

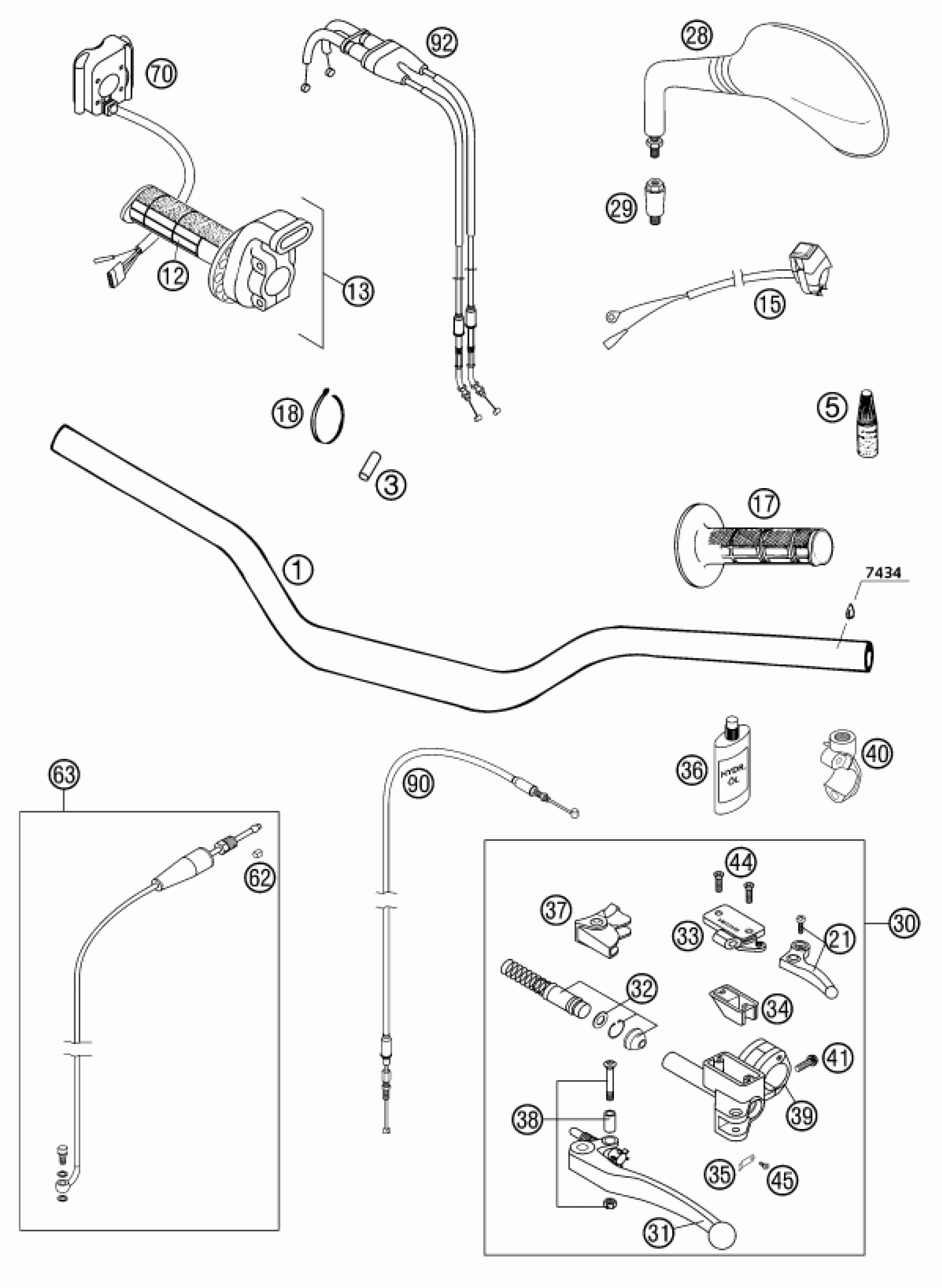

KTM 400 MXC RACING 2002 HANDLEBAR, CONTROLS Diagram
#
Description
Price
1
HANDLEBAR 28MM HIGH 2000
59002001000
$175.68
3
FUEL HOSE VITON 7X2MM
58007016001
Unavailable
5
GRIP GLUE
6899792
Unavailable
12
TWIST GRIP COVER DOMINO BLACK
50202003000
$26.17
13
THROTTLE GRIP CPL.RACING2000
59002010200
$44.59
17
FfIXED GRIP DOMINO BLACK '95
50202052000
$26.17
18
CABLE TIE 100/2,5MM BLACK
44011076100
Unavailable
18
Cable tie 200/4.6mm black
44011076200
Unavailable
21
LEVER CPL. RACING 2000
59002047000
$23.00
30
MASTERCYLINDER CPL.RACING '00
59002030000
$239.26
31
CLUTCH LEVER CPL. 125-200 '98
50302031000
$40.10
31
CLU.LEVER SHORT CPL. 2T 2000
50302031100
Unavailable
32
REP.KIT PISTON 9,5MM RAC. 2000
59002032000
$62.71
33
COVER HYD.CLUTCH RACING 2000
59002033000
$41.51
34
RUBBER FOR RESERVOIR '98
50302034000
$18.97
35
SPRING PLATE FOR LEVER '98
50302035000
$1.90
36
OIL FOR HYD.CLUTCH 50ML
50302036000
Unavailable
37
PROTECT.CAP FOR LEVER PERCH'98
50302037000
$19.07
38
LEVER SCREW CPL. 125-200 '98
50302038000
$23.46
39
CLAMP WITH PIN 2000
50302030150
$33.18
40
CLAMP MIRROR WITH PIN
59002044000
Unavailable
41
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
44
FLAT HEAD SCREW DIN0965-M 4X12
0965040123
$1.49
45
AH SCREW DIN7984-M 3X 6
0984030063
$1.49
62
SELF CUTTING RING HYDR.PIPE
50332063050
Unavailable
63
PIPE KIT CPL. RACING 2000
59032063000
$103.03
70
START-STOP TIP SWITCH CPL
59011074000
$62.54
90
DECOMPR. CABLE RACING 2000
59002094000
$88.82
92
THR.CABLE''OPEN-CLOSE'' RAC.20
59002091200
$54.59
