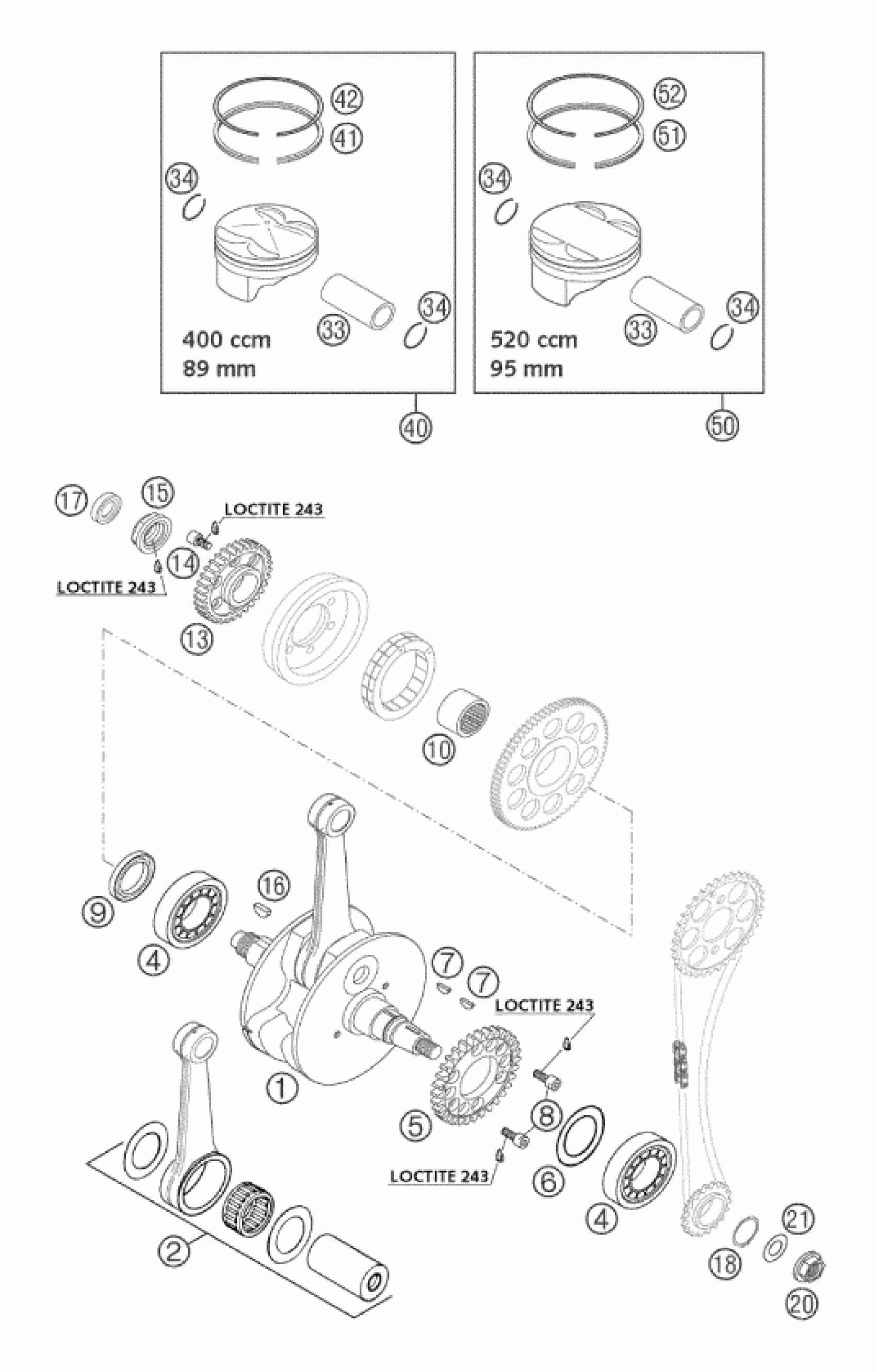

KTM 400 MXC RACING 2002 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CMPL. 400 RAC. 2001

59530018200

Unavailable

1

CRANKSHAFT CMPL. 520 RAC.2001

59030018200

Unavailable

2

CON.ROD REP.SET 250/520 RAC.00

59030015044

$490.77

2

CON.ROD REP.SET 400 RAC. 2000

59530015044

$329.33

4

CYL.ROLLBEAR.NJ206ECP/C3HVC058

80030019000

$94.80

5

DRIVE GEAR 32-T F.BALANC.SHAFT

59030055000

$91.24

6

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

6

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

6

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

7

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

8

AH SCREW DIN7984-M 6X16

0984060162

$1.49

9

SHAFT SEAL RING 30X47X7 BSL

0760304771

Unavailable

10

NEEDLE BEARING HK 3016 B

0618301617

$10.46

13

PRIMARY GEAR 33-T

59032000033

$126.59

14

AH SCREW DIN0912-M 6X10 10.9

0912060106

$1.49

15

HH NUR M20X1,5 WS=27 LEFT

59030029100

$6.96

16

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

17

radial shaft seal 14x24x6 B

0760142460

$9.25

18

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

21

SPRING WASHER DIN0137-B12

0137120000

$1.49

33

PISTON PIN BOLT 20X15,8/12X50

59030033000

$18.01

34

CIRCLIP C20X1,5

59030074000

$2.05

40

PISTON I 89MM CPL. CAST 2000

59530007000 I

$269.00

40

PISTON II 89MM CPL. CAST 2000

59530007000 II

$269.00

41

OIL SCRAPER RING 89/81,5X3

59530031000

$24.77

42

RECTANGULAR RING 89MM

57530032000

$45.99

50

PISTON I 95MM CPL. FORGED 2000

59030007000 I

$510.69

50

PISTON II 95MM CPL.FORGED 2000

59030007000 II

$700.40

51

OIL SCRAPER RING 95MM

58030631000

$25.42

52

RECTANGULAR RING 95/87,2X1,25

59030032000

$36.92
