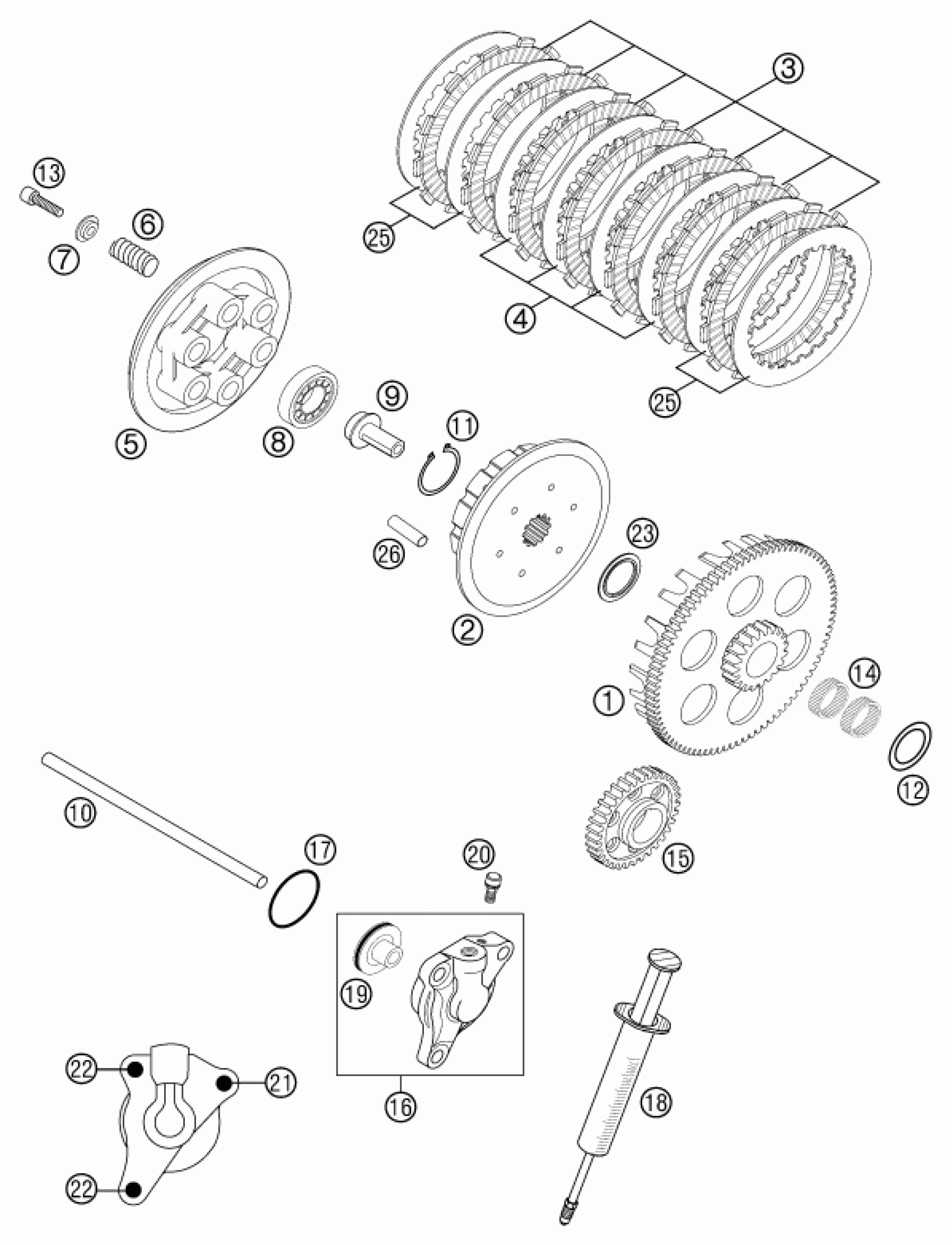

KTM 400 MXC RACING 2002 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH H. 76-T/20-T 2001

59032000276

$299.46

2

INNER CLUTCH HUB RACING 2002

59032002100

$74.77

3

LINING DISK 1,8MM

59032011000

$23.09

4

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

5

PRESSURE CAP

59032003000

$45.81

6

CLUTCH SPRING 2,5X43MM

59032005000

$3.08

7

SPRING RETAINER 6,2X12X18X3,6

59032006000

$2.05

8

GROOVED BALL BEAR. TM 16004 C3

0625160040

$23.37

9

PRESSURE BOLT 02

59032055100

$29.93

10

PUSH ROD 7X188MM

59032054000

$13.08

11

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

12

SUPPORTWASHER 25X35X1

59032017000

$2.05

13

AH SCREW DIN6912 M6X25

0984060252

$2.05

14

NEEDLE BEAR K 25X29X10

0405252910

$8.87

15

PRIMARY GEAR 33-T

59032000033

$126.59

16

CYLINDER CPL. 250-380 '99

54732061044

Unavailable

17

O-ring 30x1.5 NBR 70

0770300015

$2.05

18

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

19

PISTON W. O-RING 250-380 '00

54632066000

$240.75

20

BLEEDER SCREW WITH CAP

54732064000

$21.96

21

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

22

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

23

WASHER

59032014000

$4.39

25

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

26

DRIVING SLEEVE D=8,L=31 2002

59032004000

$3.00
