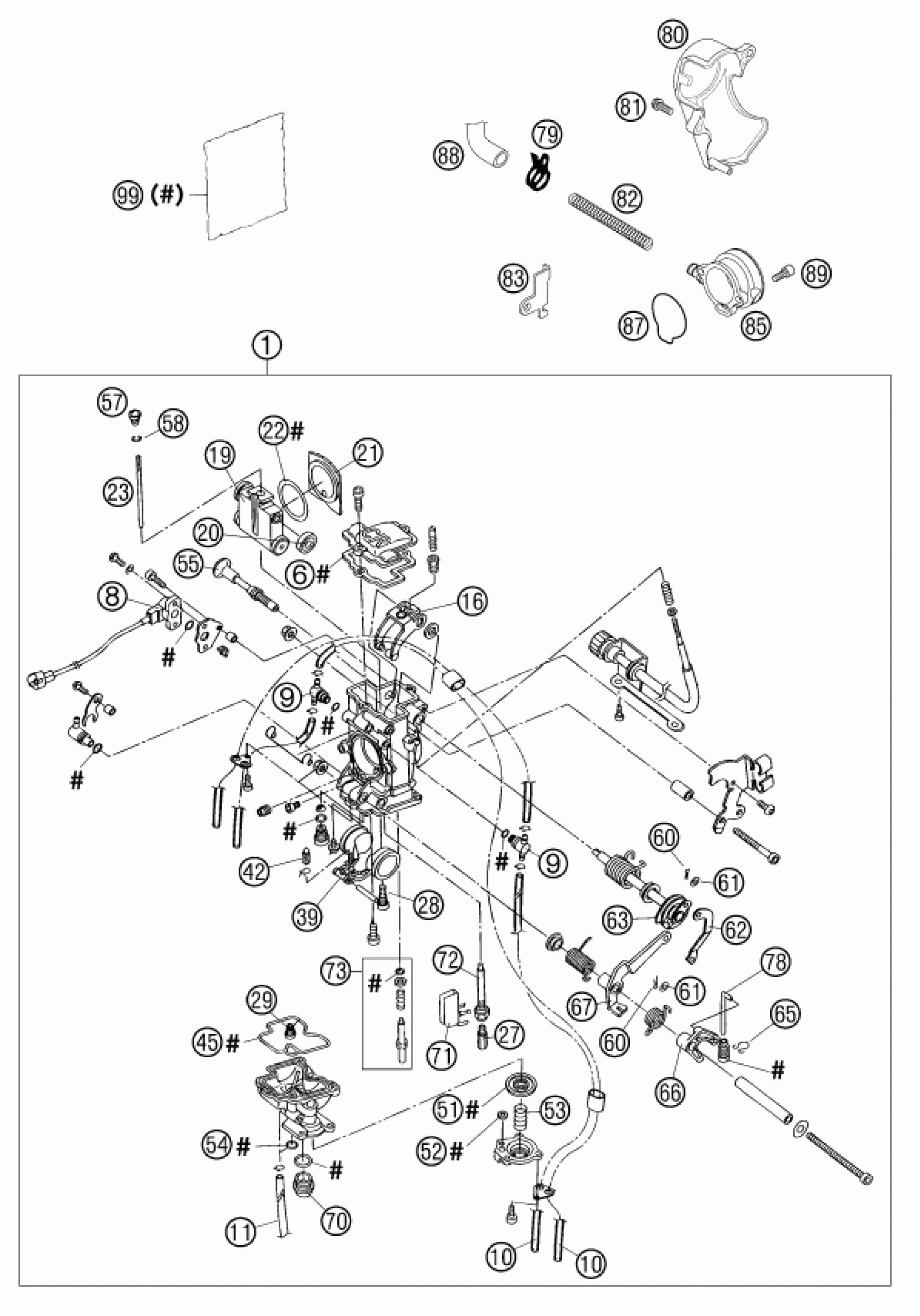

KTM 400 MXC RACING 2002 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR KEIH.SX FCR 39 2002

59031001100

$1,100.26

6

GASKET CARBURETOR COVER

59031028000

$20.88

8

TPS-SENSOR FCR 200MM 99-03

59031077000

$172.55

9

T-JOINT BREATHER HOSE

59031083000

$12.11

10

PVC-HOSE 4X6MM

31007007101

$4.11

11

PVC-HOSE 3X5MM

52031137001

Unavailable

16

LINK ARM THROTTLE VALVE CPL.

59031035051

$78.24

19

THROTTLE VALVE 15 CPL.

59031035015

Unavailable

20

BUSHING THROTTLE VALVE

59031035050

$10.65

21

GASKET PLATE THROTTLE VALVE

59031035053

Unavailable

22

GASKET WASHER THROTTLE VALVE

59031035052

$17.94

23

JET NEEDLE OBEVR

590311340VR

Unavailable

23

JET NEEDLE KEIHIN OBEVP

59031023000

Unavailable

23

JET NEEDLE KEIHIN OBDVR

590310340VR

Unavailable

23

JET NEEDLE KEIHIN OBDTM

590310340TM

$27.95

27

MAIN JET 160 KEIHIN

54531623160

Unavailable

27

MAIN JET 165 KEIHIN

54531623165

Unavailable

27

MAIN JET 172 KEIHIN

54531623172

Unavailable

27

MAIN JET 175 KEIHIN

54531623175

$12.80

27

MAIN JET 178 KEIHIN

54531623178

Unavailable

27

MAIN JET 180 KEIHIN

54531623180

Unavailable

28

IDLE JET 45

59031607045

Unavailable

28

IDLE JET 48

59031607048

$16.92

28

IDLE JET 50

59031607050

Unavailable

28

IDLE JET 52

59031607052

Unavailable

29

STARTER JET 85

59031051085

$16.73

39

FLOAT CPL.

59031009000

$45.98

42

FLOAT NEEDLE

54631220000

$31.41

45

GASKET FLOAT CHAMBER

59031010000

$24.68

51

DIAPHRAGM ACCELERATOR PUMP

59031057000

$26.80

52

U-RING

59031058000

$3.08

53

COIL SPRING

59031059000

$7.38

54

O-RING

59031058100

$3.08

55

STARTER VALVE CPL.

59031048000

$64.15

57

NEEDLE SET SCREW

59031032000

$15.68

58

BAR CLIP

59031029000

$5.23

60

SPLIT PIN 1,0X10

0094010103

$2.61

61

PVC WASHER 3X8X0,5

59031087000

$1.49

62

LINK ARM CPL.

59031063000

$23.05

63

THROTTLE SHAFT CPL.

59031046000

$113.31

65

TUBE CLIP

59031084000

$8.13

66

LINK LEVER

59031056000

$11.11

67

LINK LEVER CPL.

59031062000

$34.09

70

HOLDING BOLT

59031014000

$30.12

71

BUFFER PLATE

59031085000

$20.49

72

NEEDLE JET FCR-MX

59031121000

$32.72

73

ADJUST SCREW CPL.

59031017000

$12.86

78

ROD ACCELERATOR PUMP

59031061000

$23.65

79

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

80

CARBURETOR COVER RACING 2000

59031086000

$4.93

81

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

82

PRESSURE SPRING

32003073000

Unavailable

83

SLIDE STOP 24,5MM

59031029024

$3.64

85

INTAKE FUNNEL FCR/FCR-MX 2001

59031040100

$7.69

87

O-RING FOR INTAKE FUNNEL

59031040010

$3.08

88

ENGINE BREATHER TUBE 00

59031050100

$14.58

89

AH SCREW DIN0912-M 5X12

0912050123

$2.05

99

GASKET SET FCR KEIHIN

59031099000

$123.50
