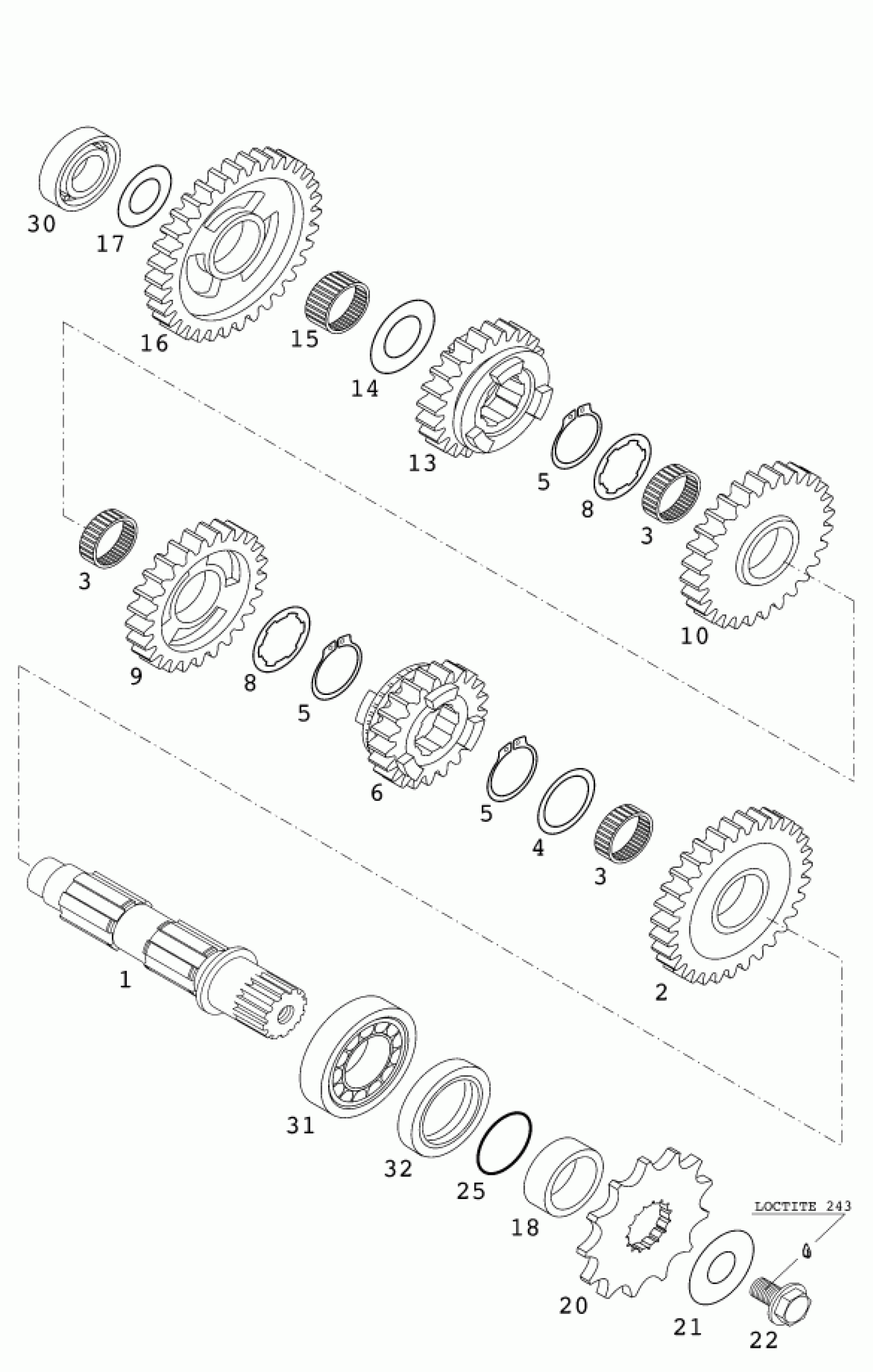

KTM 400 MXC RACING 2001 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTER SHAFT RACING 2000

59033010000

$126.40

2

IDLER GEAR 2.G 31-T ''25''

59033012025

$82.99

2

IDLER GEAR 2.G 30-T ''36''

59033012036

$130.89

3

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

4

STOP DISC 25,2X32X1,5

59033031000

$1.49

5

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

6

SLIDING GEAR 6.G 21-T ''26''

59033016026

$96.82

6

SLIDING GEAR 6.G 18-T ''44''

59033016044

$124.33

8

STOP DISC 25,2X32X1,5

59033030000

$3.08

9

IDLER GEAR 4.G 26-T ''33''

59033014033

$133.51

10

IDLER GEAR 3.G 28-T ''28''

59033013028

$121.30

10

IDLER GEAR 3.G 28-T ''47''

59033013047

$78.44

13

SLIDING GEAR 5.G 23-T ''29''

59033015029

$88.01

13

SLIDING GEAR 5.G.24-T ''40''

59033015040

$92.37

14

Shim 20x31.9x1

59033080000

$2.05

15

NEEDLE BEARING K 20X26X12

0405202612

$10.93

16

IDLER GEAR 1.G 34-T ''30''

59033011030

$110.52

16

IDLER GEAR 1.G 32-T ''43''

59033011043

$73.78

17

STOP DISC 17,2X30X1

56033030000

$4.11

18

SPACER BUSHING 12MM

54633014100

$20.94

20

FRONT SPROCKET 13-T

50033029013

$30.94

20

FRONT SPROCKET 14-T

50033029014

$30.94

20

FRONT SPROCKET 15-T

50033029015

$27.11

21

Spring washer 17.2X40X1.5

59033034000

$2.89

22

HH COLLAR SCREW M10X18 10.9

59033029000

$1.77

25

O-RING 25,12X1,78 NBR70

0770020220

$3.08

30

BALL BEARING 6203 JR C3

0625062034

$14.48

31

cylindrical roller bearing NJ2

49030023000

$74.42

32

SHAFT SEAL RING 32X45X6,5

0760324565

$5.23
