- 400 MXC RACING 2001
TIMING DRIVE

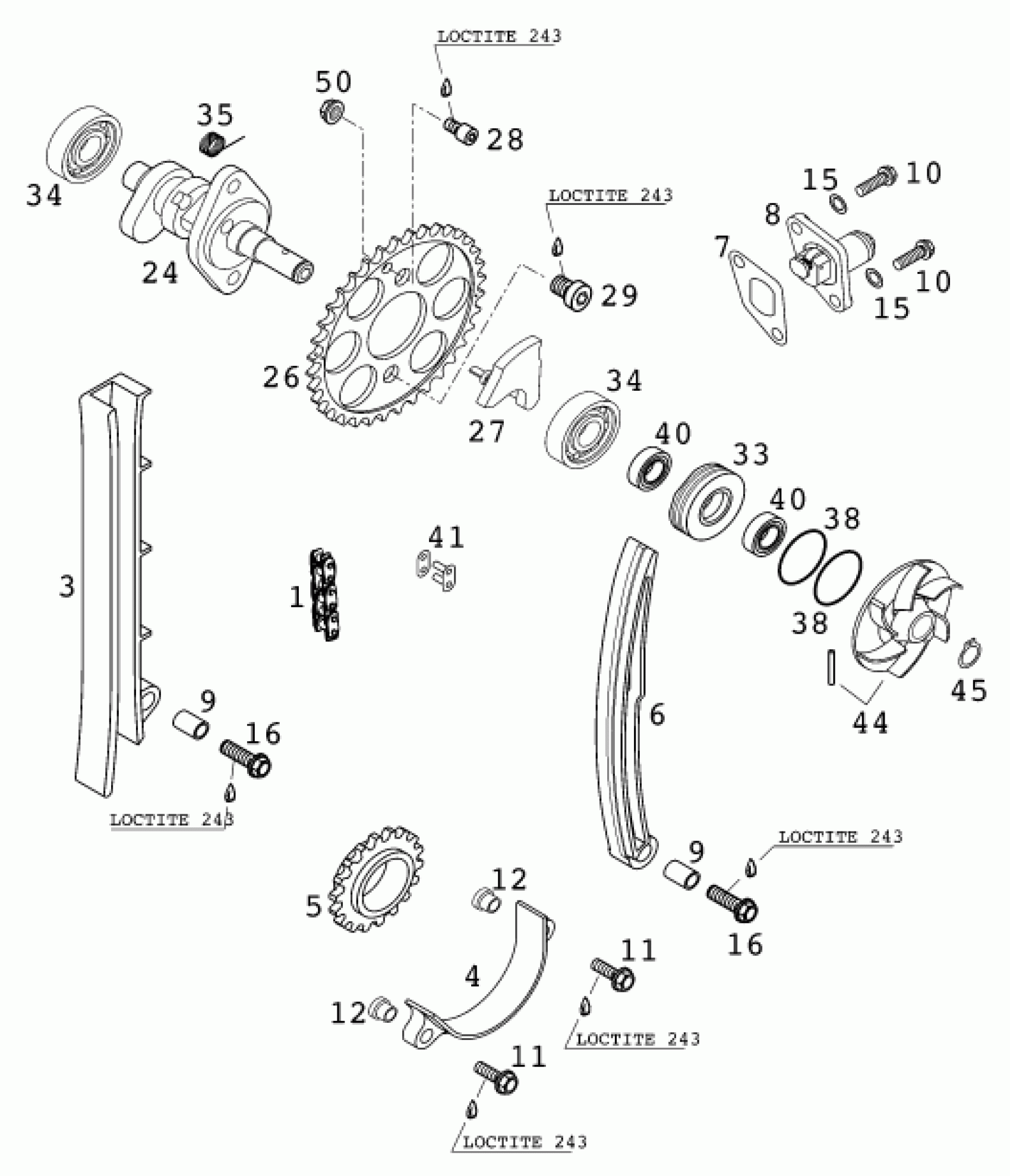

KTM 400 MXC RACING 2001 TIMING DRIVE Diagram
#
Description
Price
1
TIMING CHAIN 96 ROLLS
59036013000
$103.22
3
TIMING CHAIN GUIDE RACING
59036001000
$13.36
4
SECURING GUIDE RACING
59036018000
$5.23
5
TIMING GEAR 18-T
59036014000
$64.79
6
TIMING CHAIN TENSIONER
59036002000
$13.74
7
GASKET TIMING CHAIN TENSIONER
59036003050
$4.11
8
TIMINGCHAIN TENSIONER CPL.RAC.
59036003000
$57.87
9
SPACER BUSHING 6,1X8,2X13,1
59036001050
$4.11
10
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
11
HH COLLAR SCREW M 5X16 WS=8
0015050163
$2.05
12
SUPPORTING SLEEVE 5,2X7X10X7,7
59036018050
$3.08
15
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
16
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
24
CAMSHAFT ''01'' 400 RACING 20
59536010000
$189.49
26
CAMSHAFT GEAR 36-T
59036011000
$90.19
27
AUTO DECOMPRESSION SHAFT
59036016000
$32.78
28
AH SCREW M5X10 DIN912 10.9
0912050106
$1.49
29
AH SCREW DIN7984-M 8X10
0984080103
$2.05
33
GASKET SUPPORT 33X11
59036081000
$16.07
34
BALL BEARING 6201
0625062014
$15.42
35
SPRING FOR AUTODECOMPRESSION
59036017000
$4.11
38
O-RING 25,12X1,78 NBR70
0770020220
$3.08
40
SHAFT SEAL R.10X18X4 B-VITON
0760101842
$10.09
41
RIVET LINK FOR TIMING CHAIN
59036013050
$8.03
44
WATER PUMP WHEEL CPL. RAC.2001
59035055144
$5.98
45
CIRCLIP DIN0471-10X1
0471100010
$2.05
50
Self locking nut DIN 985 M5
0985050003
$2.05
