TANK, SEAT

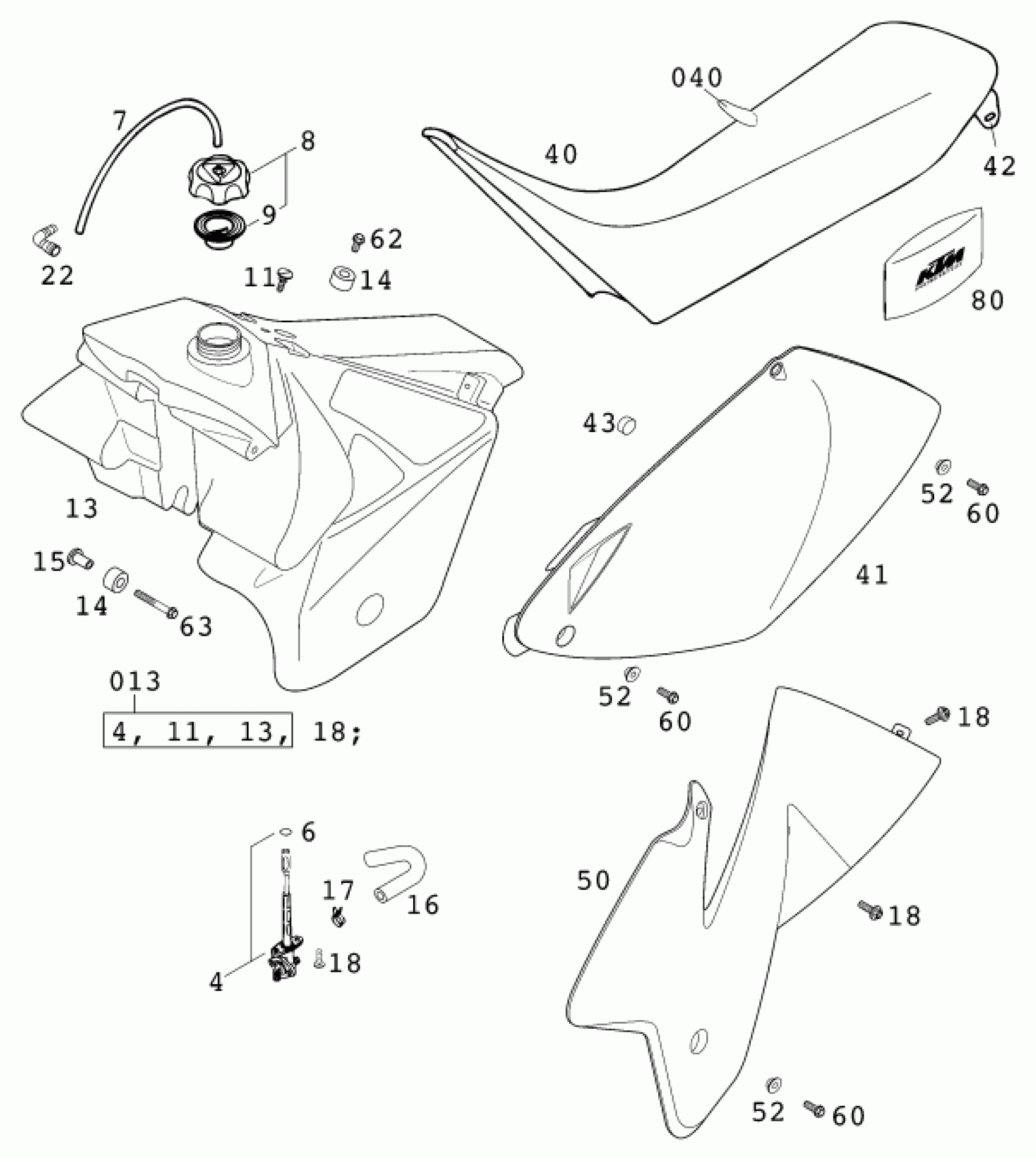

KTM 400 MXC RACING 2001 TANK, SEAT Diagram
#
Description
Price
0
* SIDE COVER R/S SILVER '98
5030804200090
Unavailable
0
SPOILER R/S ORANGE EXC 2001
5030805110004
$30.48
4
FUEL COCK CPL. OFF-ON-RES
58307105200
$44.68
6
O-RING 11X1,8 NBR 70
55007006200
$2.05
7
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
8
FILLER CAP CPL. WITH VALVE
59007008044
$24.58
9
% GASKET FOR FILLER CAP
49007009000
Unavailable
11
SCREW SEAT FASTENING D=6X23/18
50307011000
$3.08
13
% FUEL TANK CPL. 13L. NAT.2001
59007013200
Unavailable
13
FUEL TANK CPL. 9L. NAT. 2001
59007013300
$191.03
14
TANK ROLLER 12X26X12 '98
50307014000
$11.02
15
SUPORT BUSHING TANKROLLER
59003001055
$6.72
16
FUEL HOSE 7,5X13MM
59007016000
$13.46
17
CLAMP YDNAC 10128 12MM
58031005000
$3.08
18
EJOT PT SCREW K60X20 WS=6
0017060203
$2.05
22
ANGLE PIECE 90 DEGREE M10X1
51030022000
$5.23
40
SEAT MXC 2001
50307040500
$113.29
40
SEAT COVER MXC 2001
50307040550
$64.23
41
SIDE COVER L/S SILVER '98
5030804100090
Unavailable
42
SEAT BRACKET L/S-R/S '98
50307041000
$6.62
43
RUBBER FOR SIDE COVER '98
50308042055
$4.11
50
SPOILER L/S ORANGE EXC 01
5030805010004
$36.83
52
BUSH FOR SPOILER 6X11X16X5 MM
50308052000
$1.96
60
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
62
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
63
HH COLLAR SCREW M 6X45 WS=8
0015060453
$2.05
80
ORIGINAL EQUIPMENT TOOL KIT
59029099000
Unavailable
