Description

Price

8

HH COLLAR SCREW M12X55 WS=13

0015120556

$5.23

10

% MONOSHOCK PDS MXC,EXC RAC.20

1218V733

Unavailable

11

SPRING PDS1-250 70-90N/MM

91210009

Unavailable

11

SHOCK SPRING L= 250 75-96 N/MM

91210010

$125.26

11

SPRING PDS3-250 80-103N/MM

91210011

Unavailable

11

SPRING PDS4-250 85-111N/MM

91210012

Unavailable

11

SPRING PDS0-250 65-83N/MM

91210013

Unavailable

11

SPRING PDS5-260 66-86N/MM

91210014

Unavailable

11

SPRING PDS6-260 71,5-90,5N/MM

91210015

$125.26

11

SPRING PDS7-260 76-95N/MM

91210016

Unavailable

11

SPRING PDS8-260 81-99,5N/MM

91210017

Unavailable

12

SPRINGRETAINER PDS M6 '00

50180186

$133.79

18

BUSHING M12 PDS '

50304018000

Unavailable

20

BUSH+BEARINGS CPL. PDS 12MM'99

50180151S

$67.05

30

REP.KIT GASKET RINGS PDS '99

R12004

$76.48

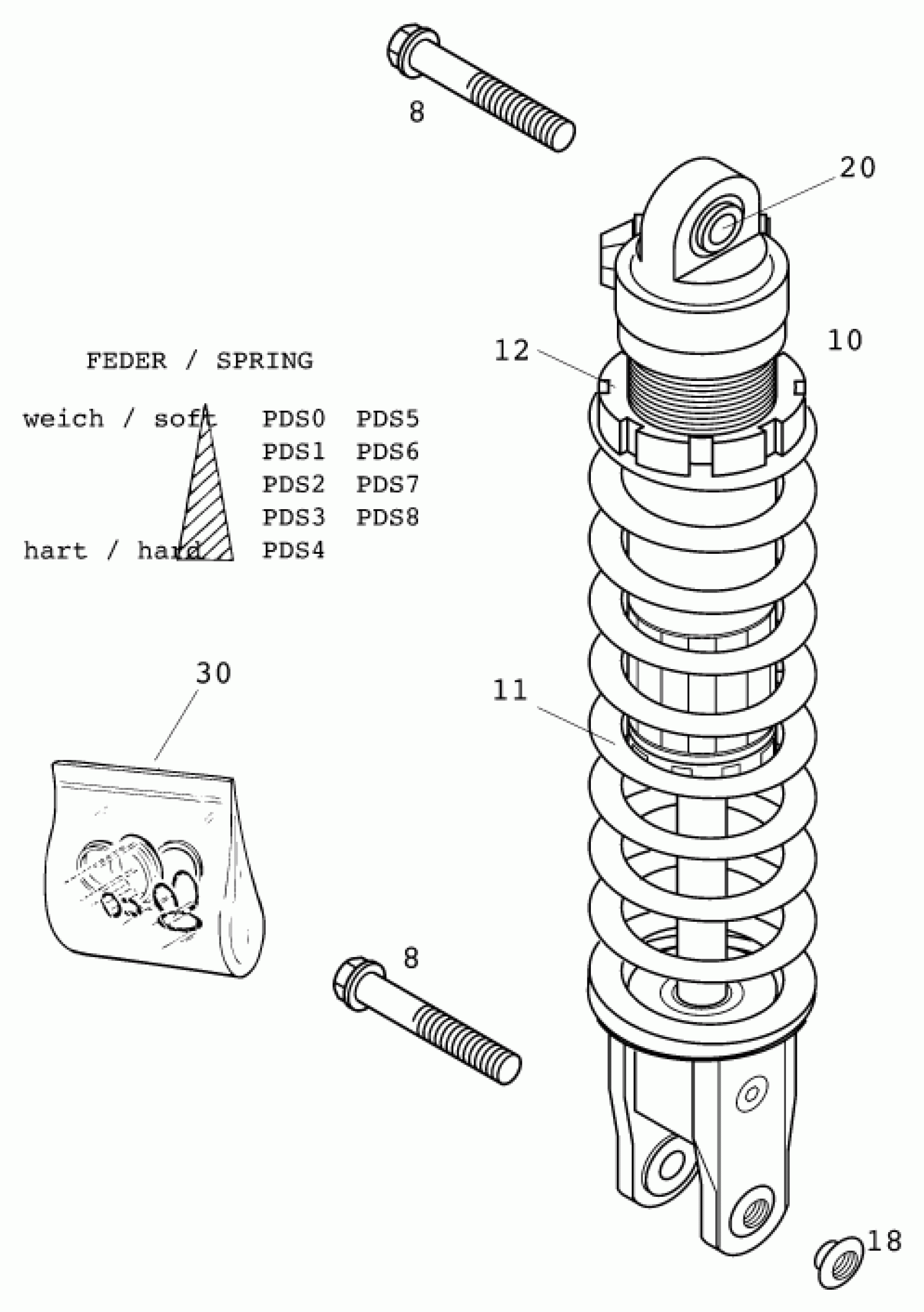

KTM 400 MXC RACING 2001 SHOCK ABSORBER Diagram

HH COLLAR SCREW M12X55 WS=13

% MONOSHOCK PDS MXC,EXC RAC.20

SPRING PDS1-250 70-90N/MM

SHOCK SPRING L= 250 75-96 N/MM

SPRING PDS3-250 80-103N/MM

SPRING PDS4-250 85-111N/MM

SPRING PDS0-250 65-83N/MM

SPRING PDS5-260 66-86N/MM

SPRING PDS6-260 71,5-90,5N/MM

SPRING PDS7-260 76-95N/MM

SPRING PDS8-260 81-99,5N/MM

SPRINGRETAINER PDS M6 '00

BUSHING M12 PDS '

BUSH+BEARINGS CPL. PDS 12MM'99

REP.KIT GASKET RINGS PDS '99
