Description

Price

1

CYLINDER 540 D=97MM L=84MM

SXS00540001

Unavailable

2

CYLINDER HEAD GASKET D=97MM 01

59030136000

$38.23

3

% CYLINDER BASE GASKET

SXS00540013

Unavailable

4

GASKET TIMING CHAIN TENSIONER

59036003050

$4.11

5

CLUTCH COVER GASKET

SXS00540015

Unavailable

6

IGNITION COVER GASKET

SXS00540016

Unavailable

8

PISTON I CPL.D=97 KH=23,5MM

SXS00540002 I

$282.19

11

OIL SCRAPER RING 97/89,5X3

SXS00540003

$39.63

12

RECTANGULAR RING 97/89,3X1,25

SXS00540004

$64.04

14

INNERCLUTCH HUB W.OILBEARING

SXS00540042

Unavailable

15

STEAL DISC 1,4MM

SXS00540041

Unavailable

16

PRESSURE BOLT 02

59032055100

$29.93

18

DIGITALBOX 540 SXS CU7462

SXS00540065

Unavailable

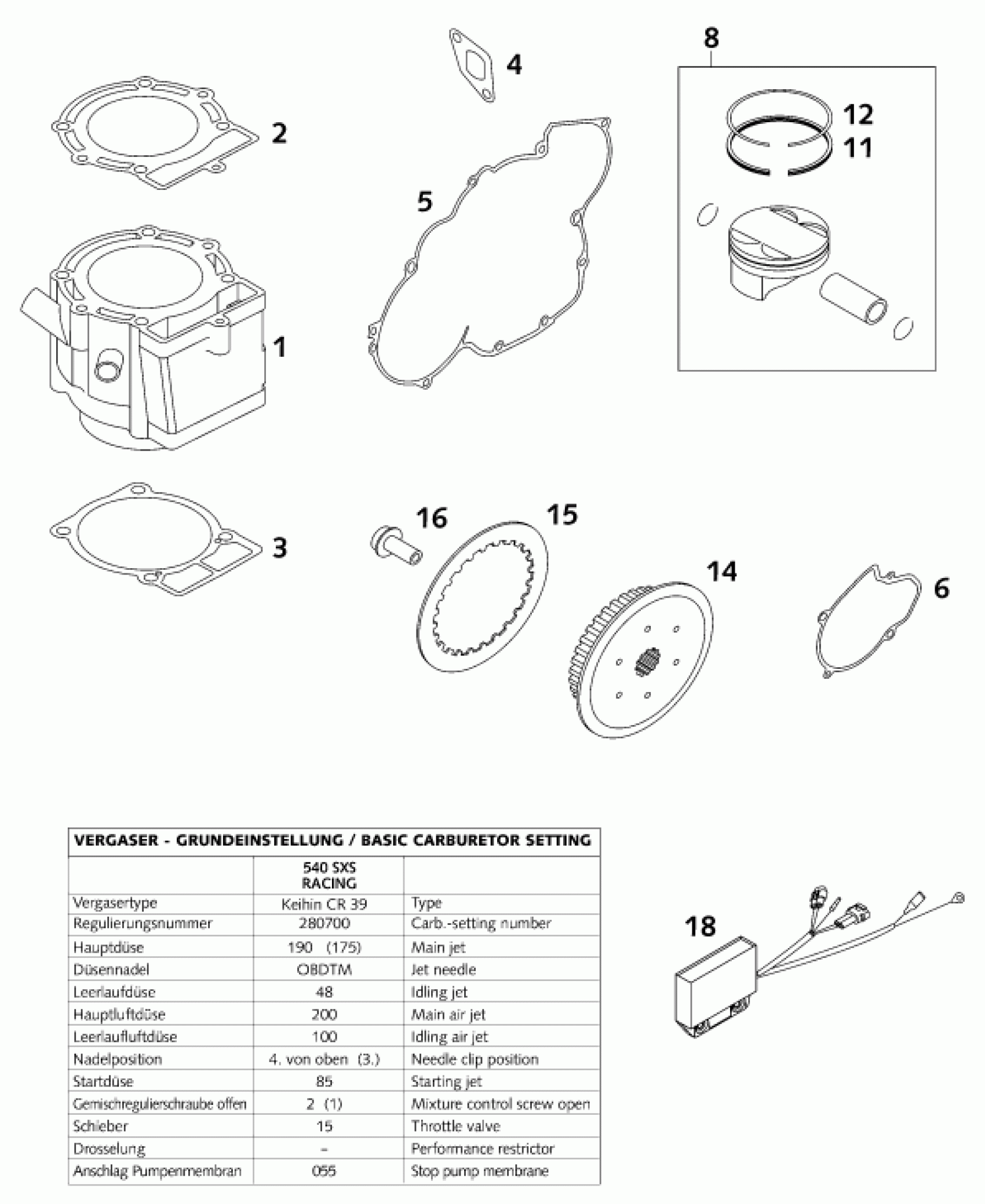

KTM 400 MXC RACING 2001 Other Diagram

CYLINDER 540 D=97MM L=84MM

CYLINDER HEAD GASKET D=97MM 01

% CYLINDER BASE GASKET

GASKET TIMING CHAIN TENSIONER

CLUTCH COVER GASKET

IGNITION COVER GASKET

PISTON I CPL.D=97 KH=23,5MM

OIL SCRAPER RING 97/89,5X3

RECTANGULAR RING 97/89,3X1,25

INNERCLUTCH HUB W.OILBEARING

STEAL DISC 1,4MM

PRESSURE BOLT 02

DIGITALBOX 540 SXS CU7462
