CRANKSHAFT, PISTON

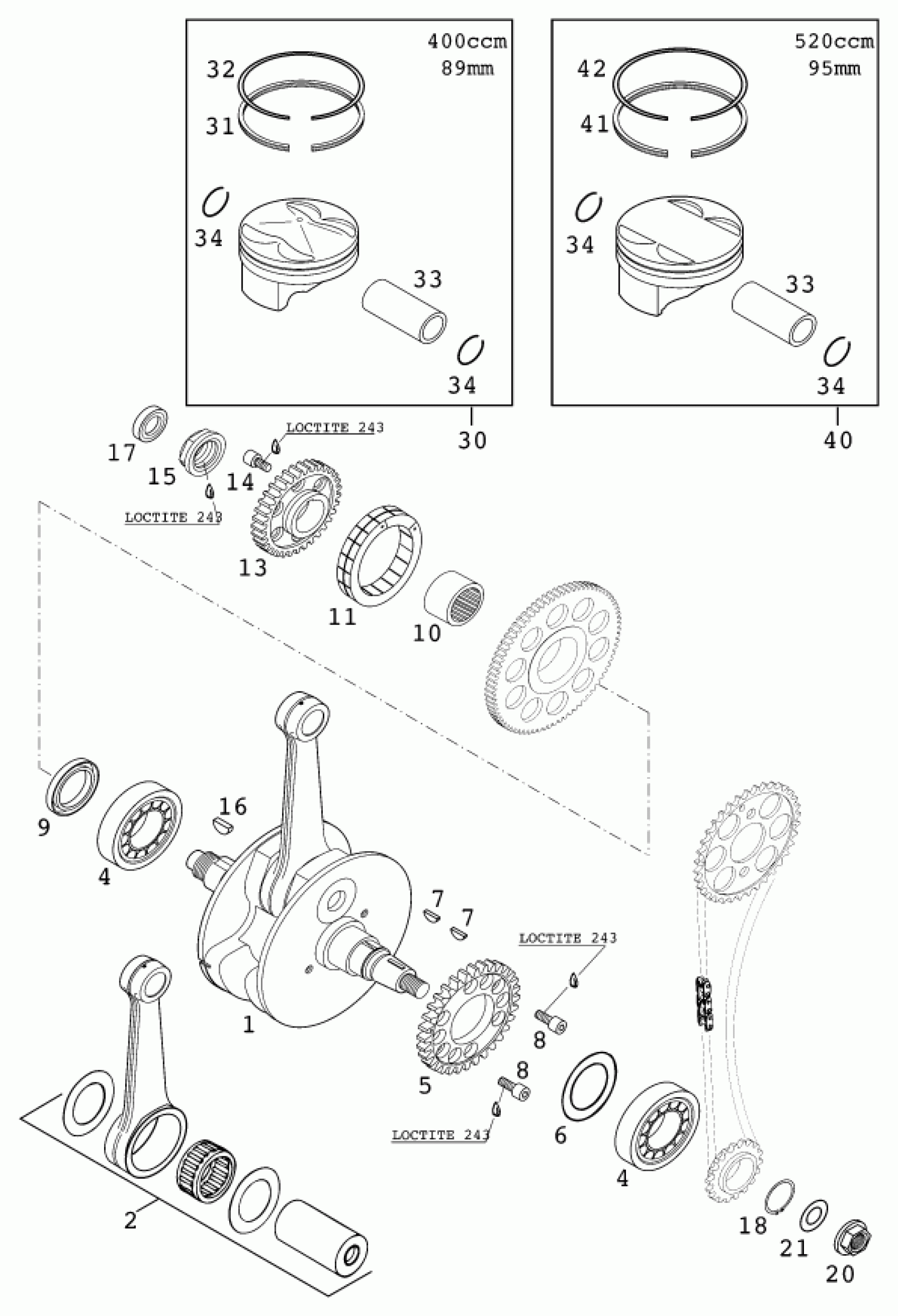

KTM 400 MXC RACING 2001 CRANKSHAFT, PISTON Diagram
#
Description
Price
1
CRANKSHAFT CMPL. 400 RAC. 2001
59530018200
Unavailable
2
CON.ROD REP.SET 400 RAC. 2000
59530015044
$329.33
4
CYL.ROLLBEAR.NJ206ECP/C3HVC058
80030019000
$94.80
5
DRIVE GEAR 32-T F.BALANC.SHAFT
59030055000
$91.24
6
THRUST WASHER 30,5X45X0,10
56030081000
Unavailable
6
THRUST WASHER 30,7X47X0,15
56030081100
Unavailable
6
THRUST WASHER 30,5X45X0,30
56030081200
Unavailable
7
WOODRUFF KEY DIN6888-3X5X13
0888030050
$2.05
8
AH SCREW DIN7984-M 6X16
0984060162
$1.49
9
SHAFT SEAL RING 30X47X7 BSL
0760304771
Unavailable
10
NEEDLE BEARING HK 3016 B
0618301617
$10.46
11
FREE-WHEEL FWD 332008 BLS
58440026000
$116.68
13
PRIMARY GEAR 33-T
59032000033
$126.59
14
AH SCREW DIN0912-M 6X10 10.9
0912060106
$1.49
15
HH NUR M20X1,5 WS=27 LEFT
59030029100
$6.96
16
WOODRUFF KEY 5X6,5 HARDED
6946005
$2.05
17
radial shaft seal 14x24x6 B
0760142460
$9.25
18
CIRCLIP DIN0471-25X1,2
0471250120
$2.05
20
COLLAR NUT M12X1 R/S
49030021000
$2.05
21
SPRING WASHER DIN0137-B12
0137120000
$1.49
30
PISTON I 89MM CPL. CAST 2000
59530007000 I
$269.00
30
PISTON II 89MM CPL. CAST 2000
59530007000 II
$269.00
31
OIL SCRAPER RING 89/81,5X3
59530031000
$24.77
32
RECTANGULAR RING 89MM
57530032000
$45.99
33
PISTON PIN BOLT 20X15,8/12X50
59030033000
$18.01
34
CIRCLIP C20X1,5
59030074000
$2.05
