COOLING SYSTEM

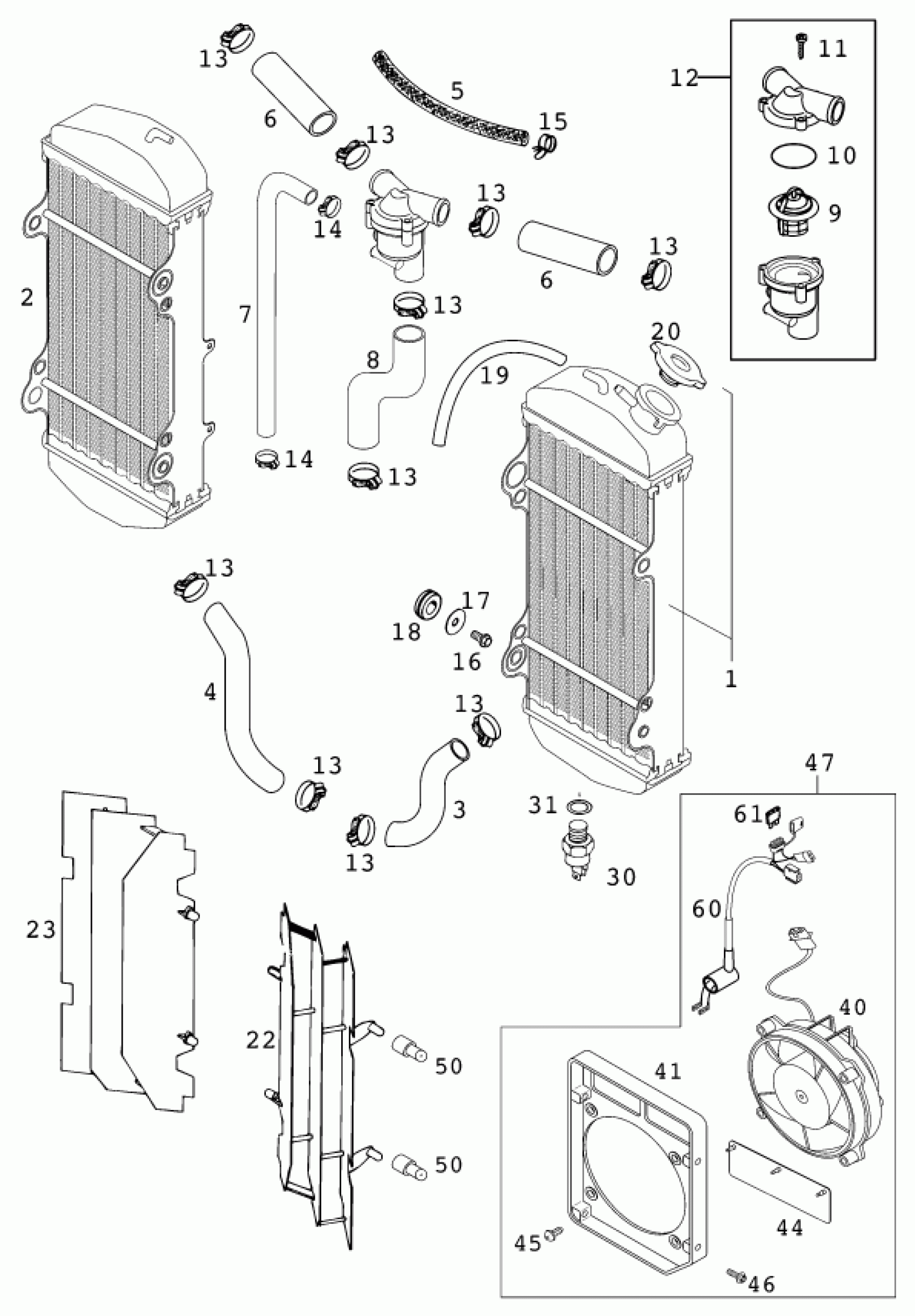

KTM 400 MXC RACING 2001 COOLING SYSTEM Diagram
#
Description
Price
1
RADIATOR L/S 45351U 2001
59035007200
Unavailable
2
RADIATOR R/S 45352U 2001
59035008200
$211.00
3
RADIATORHOSE L/S RADIATOR-CYL.
59035024000
$6.72
4
RADIATORHOSE R/S RADIATOR-CYL.
59035124000
$10.92
5
HOSE ID 7,5 PER METER
54435024001
Unavailable
6
RADIATOR HOSE RADIATOR-THERMO.
59035126000
$11.50
7
RADIATOR HOSE SECONDARY
59035025001
$8.37
8
RADIATOR HOSE THERMOS.-HEAD
59035025000
$9.29
9
THERMOSTAT 70 DEGREES '94
58335017000
$65.26
10
O-RING 32,00X2,00
0770320020
$2.05
11
SCREW FOR PLASTIC D=4X18
0016040183
$2.05
12
THERMOSTAT CPL. RACING 2000
59035013044
$57.26
13
HOSE CLAMP GEMI 18-29
10001020000
$2.05
14
HOSE CLAMP GEMI 10-16
58335099000
$4.11
15
HOSE CLAMP YDNAC 10119 11MM
50231005000
$2.05
16
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
17
Washer DIN9021-A 6.4
0021060003
$2.05
18
RUBBER SLEEVE D=12MM
41001052000
$4.11
19
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
20
RADIATOR CAP SMALL 20,3 PSI
58035016000
$25.70
22
RADIATOR PROTECTION LEFT '95
54635034200
$8.50
23
RADIATOR PROTECT.RIGHT '95
54635134200
$6.82
30
THERMOSWITCH 80-85 DG
58035045000
$37.95
31
ALU SEALRING DIN7603-14X20X1,5
0603142015
$2.05
40
FAN CPL. 12V LC4 2000
58435041000
Unavailable
41
FAN CAP 2001
59035044000
Unavailable
44
FAN FLAP RUBBER LC4 2000
58435044050
Unavailable
45
SCREW FOR PLASTIC D=5X18
0081500181
Unavailable
46
EJOT PT SCREW K60X20 WS=6
0017060203
Unavailable
47
FAN CPL. RACING 2001
59035041044
Unavailable
50
ADAPTER FOR RADIATOR PROTECTOR
54635034050
$1.68
60
FAN WIRING HARNESS 2001
59011079000
Unavailable
61
FUSE 5 A
58011109005
Unavailable
