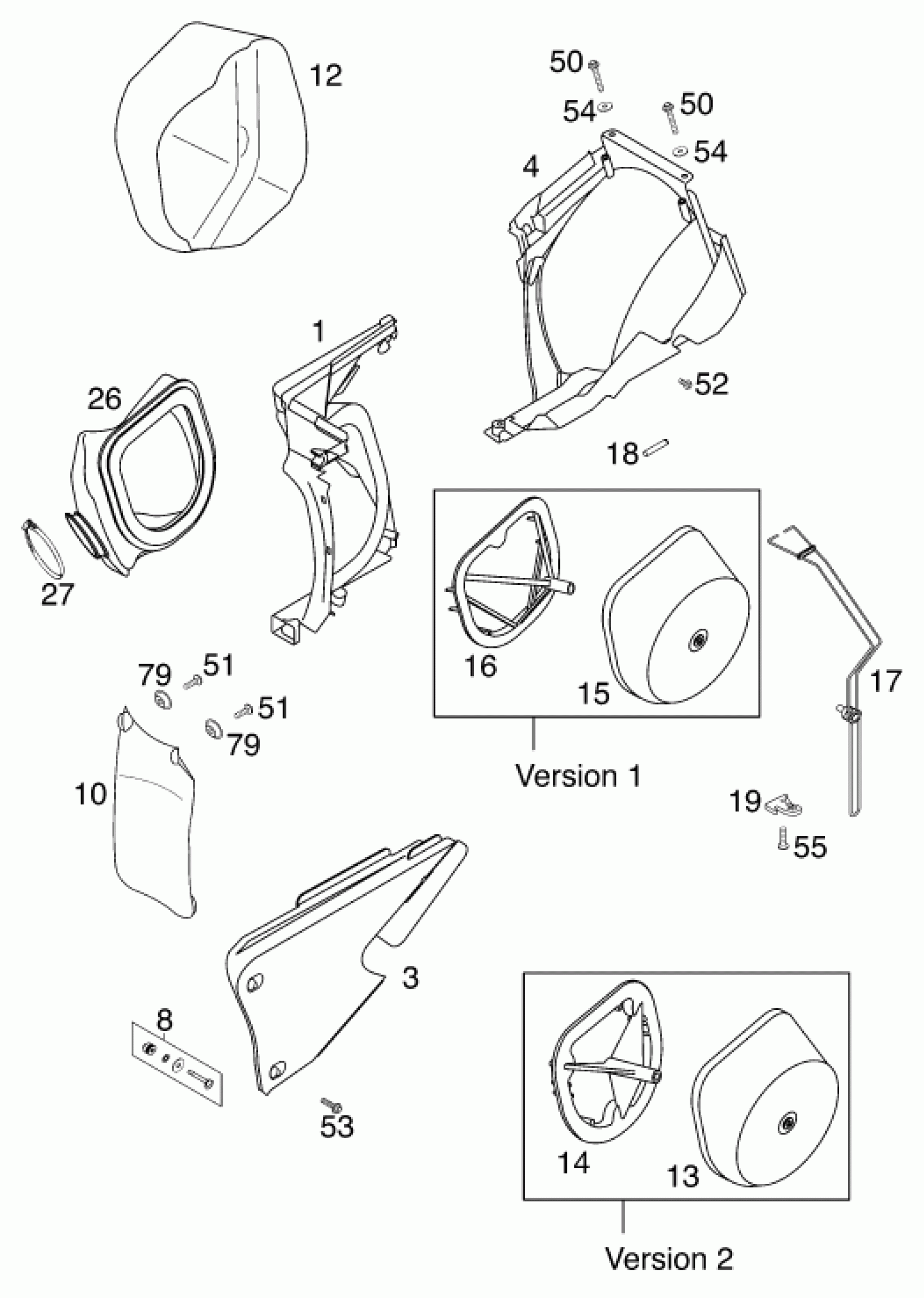

KTM 400 MXC RACING 2001 AIR FILTER Diagram

* FILTER WALL CPL. 125-380 '98

50306001051

Unavailable

FILTER BOX COVER CPL. 2-ST '98

50306003044

$54.80

FILTER BOX PART REAR '98

50306001052

$46.39

QUICK RELEASE CPL. '98

50306008044

$56.65

FENDER FOR FILTER BOX '98

50306010000

$19.35

THROTTLE CAP 125-380EGS CPL98

50306012000

Unavailable

AIR FILTER RACING 2001

59006015000

$32.12

FILTER CARRIER RAC. 2001

59006016000

$13.67

AIR FILTER 125-380 '98

50306015000

Unavailable

FILTER CARRIER 125-380 '98

50306016000

Unavailable

FILTER SUPPORT CPL.2-STROKE'98

50306017000

$22.13

FILTER SUPPORT BUSH 125-380'98

50306018000

$5.79

FASTEN. DEVICE FILTER SUPPORT

50306019000

$4.56

CABURETOR CONNECTING BOOT 2000

59006026000

$76.76

HOSE CLAMP 50-70MM

51006027000

$6.07

SPECIAL SCREW T60 6X40 WS=6

0017060403

$3.08

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

SPECIAL SCREW M 5,0X10

0009050103

$2.05

PLASTIC SCREW K7X25 PT1447

0016070253

$3.08

WASHER DIN0125-A 6,4

0125060003

$1.49

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

BUCKET

72210079000

$3.00
