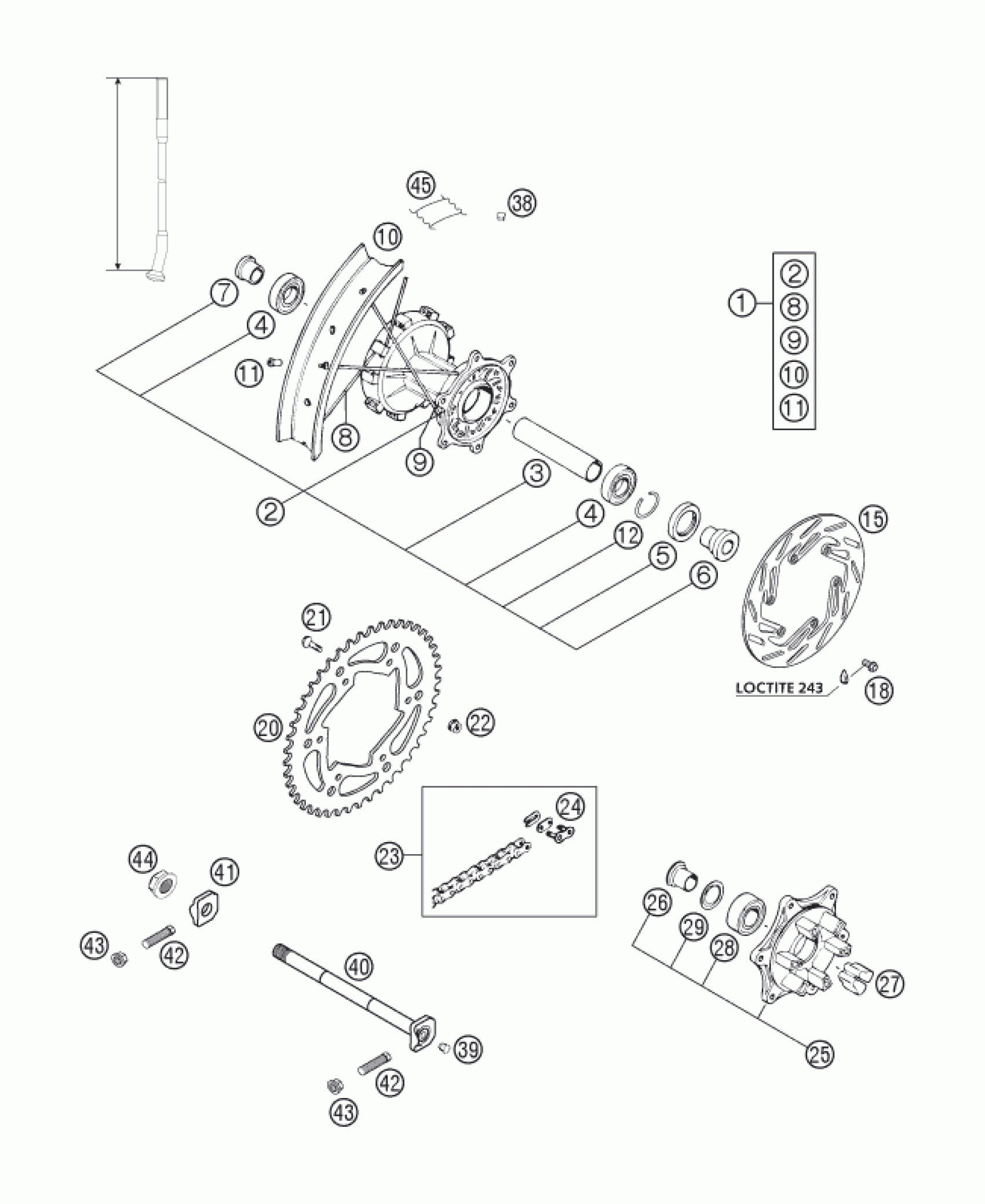

KTM 400 LS-E/ MIL 2005 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. DAMPED 2,5X18'

5841000124430

Unavailable

2

REAR W.HUB CPL. DAMP. BLACK 01

5841001004430

Unavailable

3

BUSHING SPACER TUBE L=98,3MM

58410011000

$14.58

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

SHAFT SEAL RING 32X52X7 B

0760325272

$16.54

6

BUSHING FOR HUB

58410016000

$13.50

7

BUSHING FOR REAR DAMPED HUB

54610416300

$20.09

8

SPOKE M5X223-10G 18'' BLACK

5461047100030

Unavailable

9

SPOKE M5X198-10G 18'' BLACK

5651017160030

Unavailable

10

REAR RIM 2,50X18'' DID BLACK

5801047010030

Unavailable

11

STEEL NIPPLE M5 BLACK

5650907200030

Unavailable

12

CIRCLIP DIN0472-52X2

0472052200

$3.08

15

REAR BRAKE DISK 220MM COUNTERS

58010060600

$183.53

18

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

20

REAR SPROCKET 50-Z BLACK

5831015105030

$53.33

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

22

Self locking nut M8 10.9

54310086200

$3.08

23

CHAIN Z-RING 5/8X1/4''

50310800118

Unavailable

24

Connecting link for 5031016511

50310166000

$6.79

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

$17.38

27

Rubber damping block 91

54610459000

$8.03

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

$74.67

25

SPROCKET SUPPORT CPL. MIL. 04

5791005004430

Unavailable

29

SEAL WASHER 3205 AV

54610018000

$9.34

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

$3.08

40

WH. SPINDLE RE. CPL.265MM 00

50310085044

$78.91

41

Chain tension adjuster, right

50310084000

$20.66

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30

45

RIM BAND REAR 2MM 2003

58410073200

$9.44
