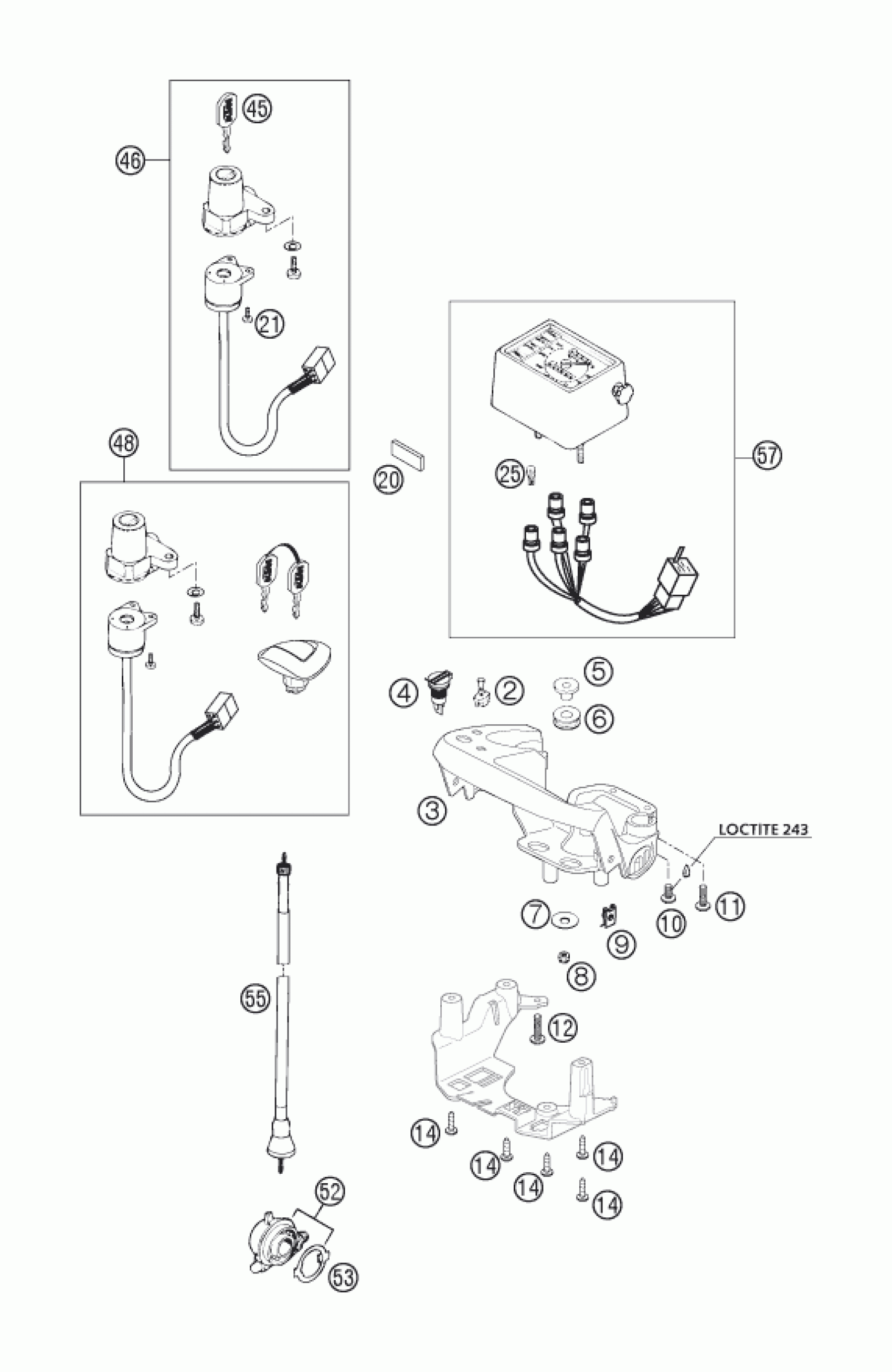

KTM 400 LS-E/ MIL 2005 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

2

PULL SWITCH LOOSE

55011599000

$23.09

3

MASK BRACKET LC4 MIL D 04

57911003200

Unavailable

20

METAMOLL FOR SPEEDO.15X32 2001

58414040053

$1.49

4

SOCKET MILITARY 99

57911042000

Unavailable

5

BUSHING

54635036000

$1.49

6

RUBBER SLEEVE D=12MM

41001052000

$4.11

7

Washer DIN9021-A 6.4

0021060003

$2.05

8

Self lock. nut DIN985-M6-A2

0985060003

$2.05

9

clip nut M6

54603048100

$4.11

10

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

11

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

12

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

14

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

21

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

$1.49

25

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

45

KEY BLANK LC4/DUKE/LC8

40011166100

$16.07

46

IGNITION LOCK W.LIGHTSWITCH 98

58411066000

$151.56

48

IGNITION LOCK+TANK PLUG EU '98

58411066044

Unavailable

52

SPEEDOMETER DRIVE 748220 (3.0)

50314050000

$28.79

53

DRIV.DOG F.SPEEDOM.DRIVE 2000

50314053000

$2.05

55

SPEEDOM.CAB.M12/M12 L=920MM 01

57914055100

Unavailable

57

SPEEDOMETER MIL. 04

57914057000

Unavailable
